john deere 1750
 | 1987 - 1994
Utility tractor | 1987 - 1994 | Utility tractor |
|---|---|---|---|
1987 - 1994 | |||
Utility tractor | |||
1987 - 1994 | |
|---|---|
Utility tractor |
Transmission options | |
|---|---|
8-speed synchromesh | |
16-speed two-speed power shift | |
12-speed creeper |

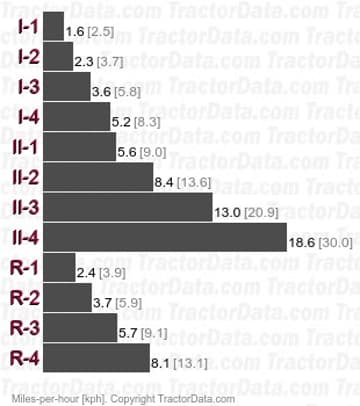

Transmission | |
|---|---|
Type | synchromesh |
Gears | 8 forward and 4 reverse |
Four gears (1-4) in two ranges (I and II) plus reverse (R) range. | |
Speeds | |
|---|---|
With 12.4-32 rear tires. | |
 |

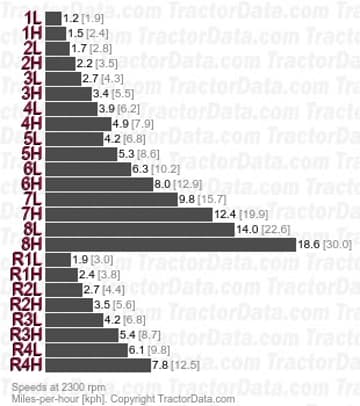

Transmission | |
|---|---|
Type | two-speed power shift |
Gears | 16 forward and 8 reverse |
The Hi-Lo transmission adds a left-hand two-speed shift to the standard transmission. | |
Speeds | |
|---|---|
With 13.6x36 rear tires. | |
 |

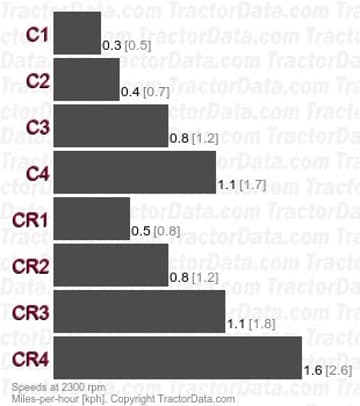

Transmission | |
|---|---|
Type | creeper |
Gears | 12 forward and 8 reverse |
Optional creeper range engaged via dashboard lever. | |
Speeds | |
|---|---|
With 13.6x36 rear tires. | |
 |
