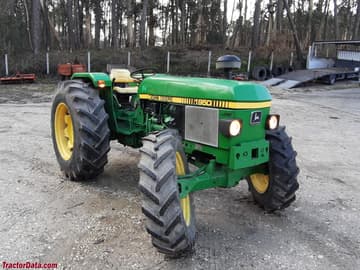

John Deere 1950

The John Deere 1950 is a tractor produced by John Deere. It is equipped with a 179.4 ci 2.9 L engine. The rated power output is 61.7 hp 46.0 kW. Transmission: Power Synchron. Operating weight: 5798 to 6845 pounds.

Overview

	1988 - 1994 Utility tractor
1988 - 1994
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany

John Deere 1950 Engine
John Deere 2.9L 3-cyl diesel
Fuel tank	19 gal 71.9 L
Engine details ...

John Deere 1950 Power
Engine (net)	61.7 hp 46.0 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Steering	manual
Steering	power *Standard with four-wheel drive. Optional with two-wheel drive.
Hydraulic wet disc brakes
ROPS. Optional MC1 cab, or CC2 cab after 1990.

Hydraulics
Type	closed center
Pressure	2756 psi 190.0 bar
Pump flow	11.6 gpm 43.9 lpm

Tractor hitch
Rear Type	II/I
Control	position and draft control

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540 (1.375)
	540/1000 (1.375)
Engine RPM	540@2075
	1000@2172

Dimensions & Tires
2WD Wheelbase	84.7 inches 215 cm
4WD Wheelbase	85 inches 215 cm
Weight	5798 to 6845 pounds
Front tire	7.50-16
2WD Rear tire	16.9-30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	55
Cab Charging amps	85
Batteries	2
Battery volts	12

References
John Deere 1950 published in 1987
Traktor 1950 published in 1987, by John Deere

Engine

Engine Detail — 179.4 ci / 2.9 L Diesel

Manufacturer	John Deere
Configuration	turbocharged diesel, 3-cylinder, liquid-cooled
Displacement	179.4 ci 2.9 L
Bore/Stroke	4.19x4.33 inches 106 x 110 mm
Power (net)	61.7 hp 46.0 kW
Air cleaner	dry
Rated RPM	2300
Torque	168.9 lb-ft 229.0 Nm
Torque RPM	1500
Starter volts	12
Oil change	200 h

John Deere 1950 Engine

Transmission

Transmission options
8-speed synchromesh
16-speed two-speed power shift
12-speed creeper

Transmission — 8 forward and 4 reverse synchromesh

Type	synchromesh
Gears	8 forward and 4 reverse
Clutch	dry disc
Four synchronized gears (1-4) in two ranges (I/II) plus reverse range.

Transmission — Power Synchron

Transmission	Power Synchron
Type	two-speed power shift
Gears	16 forward and 8 reverse
Clutch	dry disc
The optional Power Synchron transmission adds a left-hand power shift to the basic transmission.

Transmission — 12 forward and 8 reverse creeper

Type	creeper
Gears	12 forward and 8 reverse
Clutch	dry disc

Dimensions

John Deere 1950 Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 16.9-30
4WD Standard tires (ag)	Front: 11.2-24. Rear: 16.9-30
2WD Optional tires (ag)	Front: 7.50-16. Rear: 14.9-30
2WD Optional tires (ag)	Front: 7.50-16. Rear: 13.6-36
4WD Optional tires (ag)	Front: 10.5-18. Rear: 14.9-30
4WD Optional tires (ag)	Front: 11.2-24. Rear: 12.4-36
4WD Optional tires (ag)	Front: 11.2-24. Rear: 13.6-36
4WD Optional tires (ag)	Front: 12.5-20. Rear: 14.9-30
4WD Optional tires (ag)	Front: 12.5-20. Rear: 16.9-30
4WD Optional tires (ag)	Front: 14.5-20. Rear: 16.9-30

Dimensions
2WD Wheelbase	84.7 inches 215 cm
4WD Wheelbase	85 inches 215 cm
Length	148.2 inches 376 cm
Width	73 inches 185 cm
Height (cab)	95.8 inches 243 cm
2WD Clearance (front axle)	25.2 inches 64 cm
4WD Clearance (front axle)	17.3 inches 43 cm
2WD Front tread	49.6 to 81 inches 125 to 205 cm
4WD Front tread	55.8 to 74.2 inches 141 to 188 cm
Rear tread	51.2 to 78.7 inches 130 to 199 cm

John Deere 1950 Weight
2WD ROPS Shipping	5798 lbs 2629 kg
2WD Cab Shipping	6151 lbs 2790 kg
4WD ROPS Shipping	6493 lbs 2945 kg
4WD Cab Shipping	6845 lbs 3104 kg
