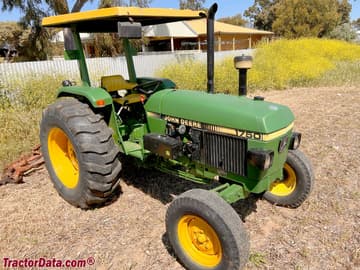

John Deere 1750

The John Deere 1750 is a tractor produced by John Deere. It is equipped with a 179.4 ci 2.9 L engine. The listed engine power is Diesel (listed): 50 hp / 37.3 kW; Diesel (listed): 4 hp / 3.0 kW. Transmission: 12 forward and 8 reverse. Operating weight: 6000 lbs 2721 kg.

Overview

	1987 - 1994 Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany

John Deere 1750 Engine
John Deere 2.9L 3-cyl diesel
Fuel tank	20.6 gal 78.0 L
Engine details ...

John Deere 1750 Power
Engine	50 hp 37.3 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Power steering
Hydraulic disc brakes
ROPS. Optional MC1 cab, or CC2 cab after 1990.

Hydraulics
Type	closed center constant pressure
Pressure	2756 psi 190.0 bar
Pump flow	11.6 gpm 43.9 lpm

Tractor hitch
Rear Type	II/I
Control	position and depth control
Rear lift (at 24"/610mm)	2810 lbs 1274 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540
	540/1000
Engine RPM	540@2070

Dimensions & Tires
Wheelbase	80.7 inches 204 cm
Weight	6000 lbs 2721 kg
Front tire	6.50-16
2WD Rear tire	12.4/11-32
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	55
Batteries	2
Battery volts	12
Battery AH	55

References
1750 Tractor published in 1986, by John Deere
1750 Tractor published in 1987, by John Deere

Engine

Engine Detail — 179.4 ci / 2.9 L Diesel

Manufacturer	John Deere
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	179.4 ci 2.9 L
Bore/Stroke	4.193x4.331 inches 107 x 110 mm
Power	50 hp 37.3 kW
Air cleaner	dry
Rated RPM	2300
Torque	136.4 lb-ft 185.0 Nm
Torque RPM	1300
Starter volts	12
Starter power	4 hp 3.0 kW

John Deere 1750 Engine

Transmission

Transmission options
8-speed synchromesh
16-speed two-speed power shift
12-speed creeper

Transmission — 8 forward and 4 reverse synchromesh

Type	synchromesh
Gears	8 forward and 4 reverse
Four gears (1-4) in two ranges (I and II) plus reverse (R) range.
With 12.4-32 rear tires.

Transmission — 16 forward and 8 reverse two-speed power shift

Type	two-speed power shift
Gears	16 forward and 8 reverse
The Hi-Lo transmission adds a left-hand two-speed shift to the standard transmission.
With 13.6x36 rear tires.

Transmission — 12 forward and 8 reverse creeper

Type	creeper
Gears	12 forward and 8 reverse
Optional creeper range engaged via dashboard lever.
With 13.6x36 rear tires.

Dimensions

John Deere 1750 Tires
2WD Standard tires (ag)	Front: 6.50-16. Rear: 12.4/11-32

Dimensions
Wheelbase	80.7 inches 204 cm
Length	147.8 inches 375 cm
Width	74 inches 187 cm
Height (cab)	95.1 inches (MC1 Cab) 241 cm
	93.2 inches (Low-profile Cab) 236 cm
Shipping weight	6000 lbs 2721 kg
Ground clearance	24.5 inches 62 cm
Front tread	49.6 to 80.9 inches 125 to 205 cm
Rear tread	51.2 to 78.7 inches 130 to 199 cm
