john deere 1950
 | 1988 - 1994
Utility tractor | 1988 - 1994 | Utility tractor |
|---|---|---|---|
1988 - 1994 | |||
Utility tractor | |||
1988 - 1994 | |
|---|---|
Utility tractor |
Transmission options | |
|---|---|
8-speed synchromesh | |
16-speed two-speed power shift | |
12-speed creeper |

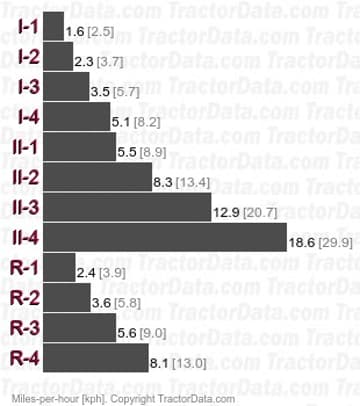

Transmission | |
|---|---|
Type | synchromesh |
Gears | 8 forward and 4 reverse |
Clutch | dry disc |
Four synchronized gears (1-4) in two ranges (I/II) plus reverse range. | |
Speeds | |
|---|---|
 |
Transmission | |
|---|---|

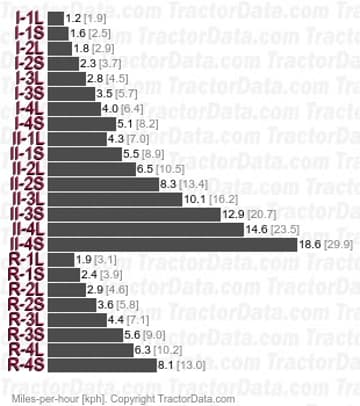

Transmission | Power Synchron |
Type | two-speed power shift |
Gears | 16 forward and 8 reverse |
Clutch | dry disc |
The optional Power Synchron transmission adds a left-hand power shift to the basic transmission. | |
Speeds | |
|---|---|
 |
Transmission | |
|---|---|

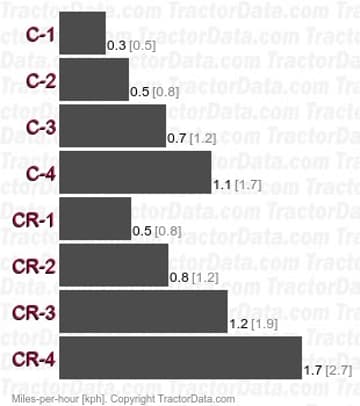

Type | creeper |
Gears | 12 forward and 8 reverse |
Clutch | dry disc |
Speeds | |
|---|---|
 |
