John Deere 2030

The John Deere 2030 is a tractor produced by John Deere. It is equipped with a 219 ci 3.6 L engine. The rated power output is 68 hp 50.7 kW. Transmission: collar shift - reverser. Operating weight: 4800 to 5230 pounds.

Overview

	1971 - 1975 Generation II SeriesUtility tractor
1971 - 1975
Generation II Series
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Factories	Dubuque, Iowa, USA
	Mannheim, Baden-Württemberg, Germany
Original price was $9,000 in 1975

John Deere 2030 Power
Engine	68 hp 50.7 kW
Drawbar (claimed)	51 hp 38.0 kW
PTO (claimed)	60.34 hp 45.0 kW
Drawbar (tested)	50.42 hp 37.6 kW
PTO (tested)	60.65 hp 45.2 kW
Performance test details ...

Mechanical
Two-wheel drive
Steering	power assist
Hydraulic wet disc brakes
Open operator station. Optional two-post ROPS with canopy.

Capacity
Fuel	19.5 gal 73.8 L
Hydraulic system	10 gal 37.9 L

Hydraulics
Type	closed center
Capacity	10 gal 37.9 L
Pressure	2250 psi 155.1 bar
Pump flow	6 gpm (transmission) 22.7 lpm
	8.5 gpm (remotes) 32.2 lpm
	18.5 gpm (optional) 70.0 lpm
Total flow	14.5 gpm 54.9 lpm
	24.5 gpmOptOptional 92.7 lpm

Tractor hitch
Rear Type	II/I

Power Take-off (PTO)
Rear PTO	live
	independent OptOptional
Rear PTO Type	540
	540/1000
Mid PTO	optional
Mid PTO Type	1000

Dimensions & Tires
Wheelbase	85.75 inches (straight axle) 217 cm
	79.375 inches (swept axle) 201 cm
Weight	4800 to 5230 pounds
Front tire	6.00-16
Rear tire	13.6-28/38
Full dimensions and tires ...

Electrical
Ground	negative
Batteries	1
	2
Battery CCA	370
Battery volts	12

References
Operator's Manual 145 Loader (OMW21474)
Schlepper 2030 mit 71/68 PS published in 1972, by John Deere
2030 Tractor with 71hp published by John Deere
John Deere 2030 Tractor (Serial No. 187301-up) (OM-R59805)
Tractors 1130, 2030, 2130, 3130 published in 1976, by John Deere
Product Information Manual published in 1975, by John Deere
Product Information Manual published in 1977, by John Deere

Engine

Engine options
John Deere 3.6L 4-cyl diesel
John Deere 3.6L 4-cyl gasoline

Engine Detail — 219.4 ci / 3.6 L Diesel

Manufacturer	John Deere
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	219.4 ci 3.6 L
Bore/Stroke	4.02x4.33 inches 102 x 110 mm
Power	68 hp 50.7 kW
Compression	16.2:1
Rated RPM	2500
Firing order	1-3-4-2
Starter volts	12
Oil capacity	6 qts 5.7 L
Coolant capacity	12 qts 11.4 L
Intake valve clearance	0.014 inches 0.356 mm
Exhaust valve clearance	0.018 inches 0.457 mm

Engine Detail — 219 ci / 3.6 L Gasoline

Manufacturer	John Deere
Fuel Type	Gasoline
Configuration	4-cylinder, liquid-cooled
Displacement	219 ci 3.6 L
Bore/Stroke	4.02x4.33 inches 102 x 110 mm
Air cleaner	dry
Compression	8:1
Rated RPM	2500
Starter volts	12

Transmission

Transmission options
8-speed
16-speed partial power shift

Transmission — Collar Shift

Transmission	Collar Shift
Gears	8 forward and 4 reverse
Oil capacity	40 qts*Transmission oil shared with hydraulics 37.9 L
Standard transmission. Two selector levers. Right lever has four gear selections. Left lever has high and low ranges, plus reverse and park.

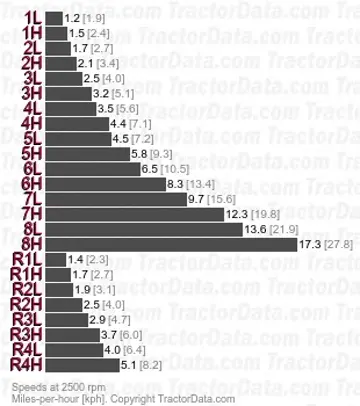

Transmission — Collar Shift - Hi/Lo

Transmission	Collar Shift - Hi/Lo
Type	partial power shift
Gears	16 forward and 8 reverse
Clutch	dry disc
Oil capacity	40 qts*Transmission oil shared with hydraulics 37.9 L
Optional Hi-Lo. Standard transmission with additional shift-on-the-move Hi/Lo selector on the steering column.

Transmission — collar shift - reverser

Transmission	collar shift - reverser
Gears	8 forward and reverse
Oil capacity	40 qts*Transmission oil shared with hydraulics 37.9 L
Optional reverser. Similar to standard transmission with additional shift-on-the-move forward/reverse selector on the steering column. Reverse range on left lever is removed.

Dimensions

John Deere 2030 Tires
Ag front	6.00-16
	7.50-16
Ag rear	13.6-28/38
	14.9-28
	15.5-38
	16.9-24/28/30
	18.4-26

Dimensions
Wheelbase	85.75 inches (straight axle) 217 cm
	79.375 inches (swept axle) 201 cm
Length	139.5 inches 354 cm
Width	69.5 inches 176 cm
Height (hood)	55.75 inches 141 cm
Height (exhaust)	81.25 inches 206 cm
Shipping weight	4800 lbs 2177 kg
Operating weight	5230 lbs 2372 kg
Front tread	49 to 75 inches 124 to 190 cm (straight axle)
Front tread	49 to 74 inches 124 to 187 cm (swept axle)
Front tread	60 to 88 inches 152 to 223 cm (straight extra-wide)
Front tread	53 to 73 inches 134 to 185 cm (heavy-duty)
Rear tread	54 to 78 inches 137 to 198 cm

Tests

Tractor Tests
NTTL 1084: gasoline 16-speed 2WD
NTTL 1085: diesel 16-speed 2WD

Nebraska Tractor Test 1084
Gasoline 16-speed 2WD October 23 - November 3, 1971 Link: Nebraska Tractor Test 1084 file
PTO performance
Power at rated engine speed	60.34 hp 45.0 kW
Fuel use	5.5 gal/hour 20.8 l/hour
Power at rated PTO speed	55.38 hp 41.3 kW
Fuel use	4.8 gal/hour 18.2 l/hour
Drawbar performance
Max power	49.03 hp 36.6 kW
Fuel use	5.7 gal/hour 21.6 l/hour
Gear 5-Hi used for power test.
Max pull	6,340 lbs 2875 kg
Gear 3-Lo used for pull test.

Nebraska Tractor Test 1085
Diesel 16-speed 2WD October 23 - November 4, 1971 Link: Nebraska Tractor Test 1085 file
PTO performance
Power at rated engine speed	60.65 hp 45.2 kW
Fuel use	4.0 gal/hour 15.1 l/hour
Power at rated PTO speed	55.23 hp 41.2 kW
Fuel use	3.4 gal/hour 12.9 l/hour
Drawbar performance
Max power	50.42 hp 37.6 kW
Fuel use	4.0 gal/hour 15.1 l/hour
Gear 5-Hi used for power test.
Max pull	6,472 lbs 2935 kg
Gear 3-Lo used for pull test.
