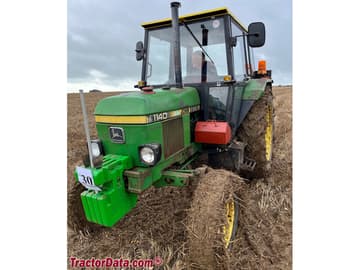

John Deere 1140

The John Deere 1140 is a tractor produced by John Deere. It is equipped with a 179 ci 2.9 L engine. The listed engine power is Diesel (listed): 55 hp / 41.0 kW; Diesel (listed): 4 hp / 3.0 kW. Transmission: Hi-Lo. Operating weight: 5300 lbs 2404 kg.

Overview

	1980 - 1987 Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany

John Deere 1140 Engine
John Deere 2.9L 3-cyl diesel
Engine details ...

John Deere 1140 Power
Engine	55 hp 41.0 kW
PTO (claimed)	49.6 hp 37.0 kW

Mechanical
Two- or four-wheel drive
Steering	power
Hydraulic wet disc brakes
Four-post ROPS. Cab optional.

Capacity
Fuel	20.6 gal 78.0 L
Hydraulic system	14.5 gal 54.9 L

Hydraulics
Type	closed center constant pressure
Capacity	14.5 gal 54.9 L
Pressure	2466 psi 170.0 bar
Pump flow	12.4 gpm 46.9 lpm

Tractor hitch
Rear Type	II/I
Control	lower-link draft control
Rear lift	5291 lbs 2399 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic disc
Rear PTO Type	540 (1.375)
Engine RPM	540@2400

Dimensions & Tires
Wheelbase	80.7 inches 204 cm
Weight	5300 lbs 2404 kg
Front tire	7.50-16
Rear tire	13.6-36 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	55
Batteries	2
Battery volts	12
Battery AH	55

References
Operator's Manual 145 Loader (OMW21474)
John Deere 1140 published in 1987
Move up to John Deere... published in 1981

Engine

Engine Detail — 179 ci / 2.9 L Diesel

Manufacturer	John Deere
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	179 ci 2.9 L
Bore/Stroke	4.19x4.33 inches 106 x 110 mm
Power	55 hp 41.0 kW
Compression	16.8:1
Rated RPM	2500
Torque	136.4 lb-ft 185.0 Nm
Torque RPM	1400
Starter volts	12
Starter power	4 hp 3.0 kW
Oil capacity	7.4 qts 7.0 L
Coolant capacity	16.4 qts 15.5 L

Transmission

Transmission options
8-speed collar shift
16-speed two-speed power shift

Transmission — 8 forward and 4 reverse collar shift

Type	collar shift
Gears	8 forward and 4 reverse
Oil capacity	58.1 qts 55.0 L
With 13.6-36 rear tires.

Transmission — Hi-Lo

Transmission	Hi-Lo
Type	two-speed power shift
Gears	16 forward and 8 reverse

Dimensions

John Deere 1140 Tires
Standard tires (ag)	Front: 7.50-16. Rear: 13.6-36 (2WD)
	Front: 11.2-24. Rear: 13.6-36 (4WD)

Dimensions
Wheelbase	80.7 inches 204 cm
Length	138 inches 350 cm
Width	71.3 inches*Minimum 181 cm
Height (cab)	97.3 inches 247 cm
Height (exhaust)	104 inches 264 cm
Shipping weight	5300 lbs 2404 kg
Ground clearance	24.5 inches 62 cm
Front tread	49.6 to 81 inches 125 to 205 cm
Rear tread	59.1 to 78.7 inches 150 to 199 cm
