John Deere 4430

1973 - 1977

Generation II Series

Row-Crop tractor

Manufacturer

John Deere

Row-Crop tractor

Built in Waterloo, Iowa, USA

Original price was $23,000 in 1977

4430

row-crop

4430 Hi-Crop

high clearance

John Deere 6.6L 6-cyl diesel

PTO (claimed)

125 hp 93.2 kW

Drawbar (tested)

104.99 hp 78.3 kW

PTO (tested)

125.88 hp 93.9 kW

Drive

4x2 2WD

4x4 HFWD 4WD

Final drives

planetary

Differential lock

hydro-mechanical rear

Power steering

Differential hydraulic wet disc brakes

Optional Roll-Gard ROPS. Optional Sound Gard body and cab.

Fuel

46 gal 174.1 L

Hydraulic system

11 gal 41.6 L

10 gal (Power Shift) 37.9 L

Type

closed center

Capacity

11 gal 41.6 L

10 gal (Power Shift) 37.9 L

Pressure

2250 psi 155.1 bar

Valves

1 to 3

Pump flow

22 gpm 83.3 lpm

Rear Type

II

Rear lift

4550 lbs 2063 kg

Rear PTO

independent

Rear PTO Type

540/1000 (1.375)

Engine RPM

540@2200

1000@2200

Wheelbase

106.6 inches 270 cm

Weight

9732 to 11350 pounds

Front tire

10.00-16

Rear tire

18.4-38

Ground

negative

Charging system

alternator

ROPS Charging amps

37

Cab Charging amps

55

Batteries

2

Battery CCA

800

Battery volts

6

Battery Group

5D

4230-4430-4630 published in 1974, by John Deere

Tractors 80 to 150 hp published in 1975, by John Deere

Making you next tractor a John Deere has traditionally been a good investment published in 1975

John Deere 4430 Tractor (OM-R65532 A7) published in 1976

Operator's Manual John Deere 4430 Tractor (OM-R65532) published in 1976

Product Information Manual published in 1975, by John Deere

Manufacturer

John Deere

Configuration

turbocharged diesel, 6-cylinder, liquid-cooled inline horizontal-shaft

Displacement

404 ci 6.6 L

Bore/Stroke

4.25x4.75 inches 108 x 121 mm

Fuel system

direct injection

Air cleaner

dry with secondary element

Pre-heating

ether injection

coolant heater OptOptional

Compression

15.5:1

Rated RPM

2200

Idle RPM

800-2200

Operating RPM

1500-2200

Firing order

1-5-3-6-2-4

Starter

electric

Starter volts

12

Coolant capacity

30 qts 28.4 L

32 qts (with heater) 30.3 L

Intake valve clearance

0.018 inches 0.457 mm

Exhaust valve clearance

0.028 inches 0.711 mm

Oil capacity

17 qts 16.1 L

Oil change

100 h

8-speed partially synchronized

16-speed partial power shift

8-speed full power shift

13-speed creeper

Transmission

John Deere Syncro-Range

Type

partially synchronized

Gears

8 forward and 2 reverse

Clutch

hydraulic wet disc

Oil capacity

44 qts 41.6 L

Four shift stations with two gears each, plus reverse gear in the first two shift stations. Tractor must be stopped, and clutch used, to shift between stations. Once in a shift station the tractor may be shifted on the move, using the clutch, between the gears in that station.

With 18.4-38 rear tires.

Transmission

John Deere Quad-Range

Type

partial power shift

Gears

16 forward and 6 reverse

Clutch

hydraulic wet disc

Oil capacity

44 qts 41.6 L

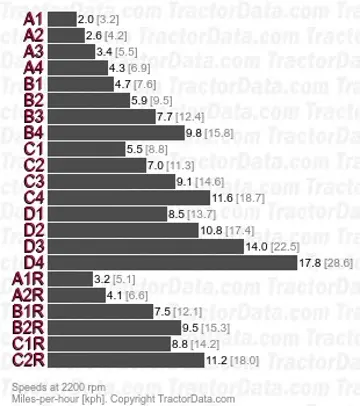

Four gears (1-4) in four ranges (A-D). Power shift between gears 1-2 and 3-4 in each range with a synchronized shift (using clutch) between 2-3. Tractor must be stopped to shift range.

With 18.4-38 rear tires.

Transmission

John Deere Power Shift

Type

full power shift

Gears

8 forward and 4 reverse

Clutch

hydraulic wet discs

Oil capacity

40 qts 37.9 L

With 18.4-38 rear tires.

Transmission

Syncro-Range Creeper

Type

creeper

Gears

13 forward and 4 reverse

Optional creeper range adds additional speeds to the first five gears of the Syncro-Range transmission. An interlock prevents shifting into gears 6 through 8 while the creeper is engaged.

Ag front

10.00-16

Ag rear

18.4-38

Ag front

7.5L-15

11L-15

7.50-18

11.00-16

14L-16A

Ag rear

23.1-30

18.4-34

20.8-34

16.9-38

Wheelbase

106.6 inches 270 cm

Length

160.75 inches 408 cm

Width

89.625 inches (axle) 227 cm

70.8 inches (fenders) 179 cm

82 inches (cab fenders) 208 cm

Rack-and-pinion rear axle

3.39 by 90 inches 86 by 2286 mm

Rack-and-pinion rear axle

3.39 by 96 inches 86 by 2438 mm

Rack-and-pinion rear axle

3.39 by 104 inches 86 by 2641 mm

Rack-and-pinion rear axle

3.62 by 104 inches 91 by 2641 mm

Rack-and-pinion rear axle

3.62 by 113 inches 91 by 2870 mm

Front tread

48 to 77.9 inches 121 to 197 cm

Front tread

52 to 85.9 inches 132 to 218 cm

Front tread

58 to 95.9 inches 147 to 243 cm

Front tread

64 to 88 inches 162 to 223 cm (4WD)

Rear tread

60 to 94 inches 152 to 238 cm

Rear tread

60 to 101 inches 152 to 256 cm

Rear tread

61 to 109 inches 154 to 276 cm

Rear tread

61 to 118 inches 154 to 299 cm

ROPS Shipping

9732 lbs 4414 kg

Cab Shipping

10762 lbs 4881 kg

Operating

11350 lbs 5148 kg

Ballasted

15060 lbs 6831 kg

Steering wheel

85.25 inches 216 cm

Cab

114 inches 289 cm

ROPS Exhaust

109.3 inches 277 cm

Cab Exhaust

125.25 inches 318 cm

Diesel Quad-Range 2WD October 5 - 13, 1974 Link: Nebraska Tractor Test 1110 file

PTO performance

Power at rated engine speed

125.88 hp 93.9 kW

Fuel use

8.1 gal/hour 30.7 l/hour

Drawbar performance

Max power

104.99 hp 78.3 kW

Fuel use

8.1 gal/hour 30.7 l/hour

Max pull

12032 lbs 5457 kg

John Deere 148 loader

John Deere 158 loader
