John Deere 5101E

The John Deere 5101E is a tractor produced by John Deere. It is equipped with a 276 ci 4.5 L engine. The rated power output is 101 hp 75.3 kW. Transmission: PowrReverser. Operating weight: 7,320 lbs 3320 kg.

Overview

	2008 - 2012 Model year 2008-20112012-2012 5E Limited SeriesUtility tractor
2008 - 2012
Model year 2008-20112012-2012
5E Limited Series
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Augusta, Georgia, USA
Original price	$48,135 (2011)

Variants
5101E	utility chassis
5101EN	narrow chassis

John Deere 5101E Engine
John Deere 4.5L 4-cyl diesel
Engine details ...

John Deere 5101E Transmission
12-speed partially synchronized
Transmission details ...

John Deere 5101E Power
Engine (gross)	101 hp 75.3 kW
PTO (claimed)	82 hp 61.1 kW
PTO (tested)	83.78 hp 62.5 kW
Performance test details ...

Mechanical
Four-wheel drive
Final drives	planetary
Differential lock	rear standard
Steering	hydrostatic power
Independent hydraulic wet disc brakes
Cab standard with heat and air-conditioning.

Capacity
Fuel	33.5 gal 126.8 L
Front hubs	0.74 qts 0.7 L
Front diff.	4.8 qts 4.5 L

Hydraulics
Type	open center
Pressure	2828 psi 195.0 bar
Rear valves	1 to 3
Mid valves	2 (optional)
Pump flow	15.9 gpm 60.2 lpm
Total flow	22.5 gpm 85.2 lpm
Steering flow	6.6 gpm 25.0 lpm
Steering press.	1900 psi 131.0 bar

Tractor hitch
Rear Type	2/1
Control	position control and top-link draft sensing
Rear lift (at 24"/610mm)	3,213 lbs 1457 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	mechanical
Rear PTO Type	540/540E
	540/1000 (optional)

Dimensions & Tires
Wheelbase	85.8 inches 217 cm
Weight	7,320 lbs 3320 kg
Front tire	12.4-24
Rear tire	18.4-30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	90
	120 (optional)
Battery CCA	950
Battery volts	12

References
New 5 Series Utility Tractors published in 2009, by John Deere
5 Series published in 2009, by John Deere

Engine

Engine Detail — 276 ci / 4.5 L Diesel

Manufacturer	John Deere PowerTech 4045
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	276 ci 4.5 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Emissions	Tier 2
Rated Power (gross)	101 hp 75.3 kW
Fuel system	direct injection
Air cleaner	dry
Compression	17.6:1
Rated RPM	2400
Idle RPM	825-2625
Firing order	1-3-4-2
Starter volts	12
Oil capacity	9 qts 8.5 L
Coolant capacity	12 qts 11.4 L
Intake valve clearance	0.014 inches 0.356 mm
Exhaust valve clearance	0.018 inches 0.457 mm

Transmission

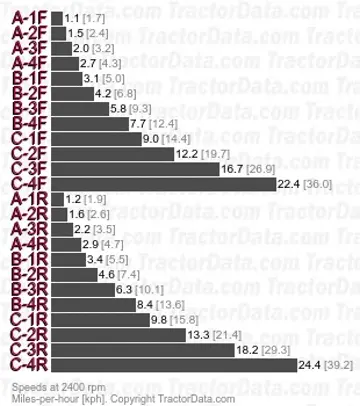

Transmission — PowrReverser

Transmission	PowrReverser
Type	partially synchronized
Gears	12 forward and reverse
Clutch	wet disc
Oil capacity	46 qts 43.5 L
Four gears in each of three ranges with reverser lever. Forward/reverse power shift. Synchronized shift between gears with clutch. Shifts between ranges are unsynchronized.
With 16.9-30 rear tires.

Dimensions

John Deere 5101E Tires
Ag front	12.4-24
Ag rear	18.4-30
Industrial front	12.5/80-18
Industrial rear	19.5L-24

Dimensions
Wheelbase	85.8 inches 217 cm
Length	147.6 inches 374 cm
Width	64.6 inches (axle flange) 164 cm
Height (hood)	54.3 inches 137 cm
Height (cab)	98.8 inches 250 cm
Operating weight	7,320 lbs 3320 kg
Clearance (front axle)	16.5 inches 41 cm
Flange axle rear axle

Tests

Nebraska Tractor Test 1905A
Diesel 12-speed 4WD September 6 - 11, 2007 Link: Nebraska Tractor Test 1905A file
PTO performance
Max power	83.78 hp 62.5 kW
Fuel use	5.4 gal/hour 20.4 l/hour
Power at rated engine speed	82.81 hp 61.8 kW
Fuel use	5.6 gal/hour 21.2 l/hour

Attachments

Attachment overview
John Deere 553 loader
John Deere 563 loader
