John Deere 4700

The John Deere 4700 is a tractor produced by John Deere. It is equipped with a 134 ci 2.2 L engine. The listed engine power is Diesel (net): 45 hp / 33.6 kW; Diesel (gross): 48 hp / 35.8 kW; Diesel (listed): 2.7 hp / 2.0 kW. Transmission: PowrReverser Creeper. Operating weight: 1517 lbs 688 kg.

Overview

	2000 - 2001 4000 Compact SeriesCompact Utility tractor 4000 Compact Series Compact Utility tractor

Production
Manufacturer	John Deere
Compact Utility tractor
Built in Augusta, Georgia, USA
Original price was $26,500 in 2003

John Deere 4700 Engine
Yanmar 2.2L 4-cyl diesel
Engine details ...

John Deere 4700 Power
Engine (gross)	48 hp 35.8 kW
Engine (net)	45 hp 33.6 kW
Gear PTO (claimed)	41.5 hp 30.9 kW
Hydro PTO (claimed)	40 hp 29.8 kW

Mechanical
Four-wheel drive
Final drives	planetary
Differential lock	mechanical rear
Power steering
Wet disc brakes
Two-post fixed ROPS. Folding ROPS optional.

Capacity
Fuel	12.5 gal 47.3 L
Hydraulic system	6.8 gal (gear) 25.7 L
	8.8 gal (hydro) 33.3 L
Front axle	8.4 qts 7.9 L

Hydraulics
Type	open center
Capacity	6.8 gal (gear) 25.7 L
	8.8 gal (hydro) 33.3 L
Pressure	2500 psi 172.4 bar
Valves	3 OptOptional
Pump flow	9.9 gpm 37.5 lpm
Total flow	14.7 gpm 55.6 lpm
Steering flow	4.8 gpm 18.2 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift (at 24"/610mm)	2500 lbs 1134 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540 (1.375)
Engine RPM	540@2600
Mid PTO	independent
Mid PTO Type	2100
Engine RPM	2100@2600

Dimensions & Tires
Weight	3600 lbs 1632 kg
Front tire	8-16
Rear tire	13.6
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	40
Battery CCA	650
Battery volts	12

References
Grounds Care Equipment Purchasing Guide published in 2000, by John Deere
Grounds Care Equipment Purchasing Guide published in 2001, by John Deere
4000 Series Tractors published in 2000, by John Deere
Operator's Manual Compact Utility Tractors 4500, 4600 and 4700 (OMLVU10940) published in 1999
4000 Series Product Information Handbook published in 2000, by John Deere
Rental Equipment published in 2001, by John Deere

Engine

Engine Detail — 134 ci / 2.2 L Diesel

Manufacturer	Yanmar 4TNE88
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	134 ci 2.2 L
Bore/Stroke	3.46x3.54 inches 88 x 90 mm
Power (net)	45 hp 33.6 kW
Power (gross)	48 hp 35.8 kW
Fuel system	direct injection
Air cleaner	dry type
Pre-heating	air heater
Compression	18:1
Rated RPM	2600
Torque	108 lb-ft 146.4 Nm
Torque RPM	1700
Starter volts	12
Starter power	2.7 hp 2.0 kW
Coolant capacity	7.6 qts 7.2 L
Oil capacity	5.1 qts 4.8 L

Transmission

Transmission options
12-speed partially synhcronized power shuttle
hydrostatic
24-speed partially synhcronized power shuttle

Transmission — PowrReverser

Transmission	PowrReverser
Type	partially synhcronized power shuttle
Gears	12 forward and reverse
Clutch	wet disc, two clutch packs with three 5-inch discs each
Oil capacity	27.2 qts 25.7 L
Four speeds (1-4) in three ranges (A-C) with left-hand reverser on dash. Power shuttle allows direction changes without using the clutch. Speeds are synchronized and may be shifting on the move, using the clutch. Tractor must be stopped to shift ranges.

Transmission — infinite forward and reverse (three-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (three-range)
Oil capacity	35.2 qts 33.3 L
Hydrostatic transmission operated with two foot pedals. Push-button cruise control on dash. Tractor must be stopped to shift ranges.

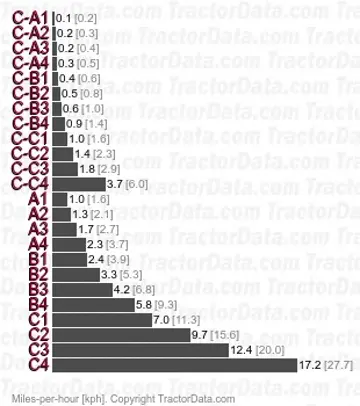

Transmission — PowrReverser Creeper

Transmission	PowrReverser Creeper
Type	partially synhcronized power shuttle
Gears	24 forward and reverse
Clutch	wet disc, two clutch packs with three 5-inch discs each
Oil capacity	27.2 qts 25.7 L
Add creeper range to the PowrReverser, engaged by separate lever. Tractor must be stopped, and clutch used, to shift in or out of creeper range.

Dimensions

John Deere 4700 Tires
Standard tires (ag)	Front: 8-16. Rear: 13.6
Optional tires (ag)	Front: 8-16. Rear: 16.9-24
Lawn/turf front	27x8.50-15
Lawn/turf rear	44x18.00-20
Industrial front	10-16.5
Industrial rear	17.5L-24

Dimensions
Length	135 inches 342 cm

John Deere 4700 Weight
	3600 lbs 1632 kg
Max Drawbar	570 lbs 258 kg
Max front axle	11 lbs 4 kg
Max rear axle	2205 lbs 1000 kg

John Deere 4700 Height
Hood	49.2 inches (2WD) 124 cm
	51 inches (4WD) 129 cm
ROPS	88.4 inches (2WD fixed) 224 cm
	91.6 inches (4WD fixed) 232 cm
	94.4 inches (2WD folding) 239 cm
	97.6 inches (4WD folding) 247 cm

Attachments

Attachment overview
72" mid-mount mower deck
Blade
Front-end loader
Backhoe

72" Mower deck
Type	mid-mount John Deere
	3-blade with hydraulic lift
Cutting width	72 inches 182 cm
Overall width	85 inches 215 cm

John Deere 48 Backhoe
Backhoe type	John Deere 48 Backhoe
Weight	1517 lbs 688 kg
Transport height	81 inches 205 cm
Bucket width	12 inches 30 cm
	18 inches 45 cm
	24 inches 60 cm
	36 inches 91 cm
Digging depth	102 inches 259 cm
Reach from pivot	133 inches 337 cm
Loading height	82 inches 208 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	3730 lbs 1691 kg
Dipperstick force	2435 lbs 1104 kg
