John Deere 4960

The John Deere 4960 is a tractor produced by John Deere. It is equipped with a 466 ci 7.6 L engine. The rated power output is 202.73 hp 151.2 kW. Transmission: John Deere Power Shift. Operating weight: 18978 to 19000 pounds.

Overview

	1992 - 1994 4060 SeriesRow-Crop tractor
1992 - 1994
4060 Series
Row-Crop tractor

Production
Manufacturer	John Deere
Row-Crop tractor
Built in Waterloo, Iowa, USA

John Deere 4960 Engine
John Deere 7.6L 6-cyl diesel
Engine details ...

John Deere 4960 Transmission
15-speed full power shift
Transmission details ...

John Deere 4960 Power
PTO (claimed)	200 hp 149.1 kW
Drawbar (tested)	176.48 hp 131.6 kW
PTO (tested)	210.00 hp 156.6 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	inboard planetary
Power steering
Differential hydraulic wet disc brakes
Sound-Gard cab standard.

Capacity
Fuel	102 gal 386.1 L
Hydraulic system	19.8 gal 74.9 L

Hydraulics
Type	closed center
Capacity	19.8 gal 74.9 L
Pressure	2530 psi 174.4 bar
Rear valves	3 or 4
Pump flow	30.6 gpm 115.8 lpm

Tractor hitch
Rear Type	3/3N
Control	electrohydraulic draft sensing
Rear lift	10,041 lbs 4554 kg
	11,773 lbsOptOptional 5340 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000

Dimensions & Tires
Wheelbase	118.5 inches (2WD) 300 cm
	117.1 inches (4WD) 297 cm
Weight	18978 to 19000 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	120
Batteries	2
Battery CCA	925
Battery volts	12

References
Fine-Tuned Perfection published in 1992, by John Deere
155- To 200-HP 60 Series Tractors published in 1993, by John Deere
Row-Crop Tractors Product Information Handbook published in 1992, by John Deere

Engine

Engine Detail — 466 ci / 7.6 L Diesel

Manufacturer	John Deere
Configuration	turbocharged aftercooled diesel, 6-cylinder, liquid-cooled inline valve-in-head
Displacement	466 ci 7.6 L
Bore/Stroke	4.5625x4.75 inches 116 x 121 mm
Air cleaner	dual dry element
Compression	15.5:1
Rated RPM	2200
Firing order	1-5-3-6-2-4
Starter volts	12
Oil capacity	22 qts 20.8 L
Coolant capacity	32 qts 30.3 L

Transmission

Transmission — John Deere Power Shift

Transmission	John Deere Power Shift
Type	full power shift

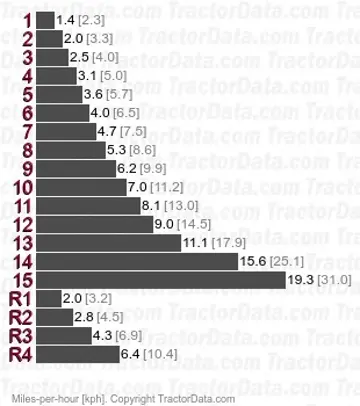

Gears	15 forward and 4 reverse
Oil capacity	79.2 qts 75.0 L
Standard transmission.

Dimensions

John Deere 4960 Tires

Dimensions
Wheelbase	118.5 inches (2WD) 300 cm
	117.1 inches (4WD) 297 cm
Width	118.5 inches 300 cm
Height	118.8 inches 301 cm
Front axle	2WD
Front axle	Caster/Action MFWD
Rack-and-pinion rear axle
Rear tread	60 to 134 inches 152 to 340 cm

John Deere 4960 Weight
Shipping	18,978 lbs 8608 kg
Operating	19,000 lbs 8618 kg
Ballasted	24,665 lbs 11188 kg

Tests

OCED Tractor Test 1622
Diesel Powershift 4WD April 1 - June 1, 1989 Link: OCED Tractor Test 1622 file
PTO performance
Max power	210.00 hp 156.6 kW
Fuel use	10.9 gal/hour 41.3 l/hour
Power at rated engine speed	202.73 hp 151.2 kW
Fuel use	11.0 gal/hour 41.6 l/hour
Drawbar performance
Max power	176.48 hp 131.6 kW
Fuel use	11.1 gal/hour 42.0 l/hour
Gear 12 used for power test.
Max pull	23,715 lbs 10757 kg
Gear 3 used for pull test.
