John Deere 6165J

The John Deere 6165J is a tractor produced by John Deere. It is equipped with a 414.4 ci 6.8 L engine. The rated power output is 165 hp 123.0 kW. Transmission: John Deere PowrQuad. Operating weight: 15190 to 16290 pounds.

Overview

	2010 - 6J SeriesUtility tractor
2010 -
6J Series
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Montenegro, Brazil

John Deere 6165J Engine
John Deere 6.8L 6-cyl diesel
Fuel tank	79.25 gal 300.0 L
Engine details ...

John Deere 6165J Transmission
16-speed partial power shift
Transmission details ...

John Deere 6165J Power
Engine	165 hp 123.0 kW
PTO (claimed)	143 hp 106.6 kW

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic
Power steering
Hydraulic wet disc brakes
Four-post ROPS. Cab optional.

Hydraulics
Type	closed center pressure-flow compensated (PFC)
Pressure	2900 psi 200.0 bar
Valves	2 to 3
Pump flow	29.06 gpm 110.0 lpm
SCV flow	27.74 gpm 105.0 lpm
Oil type	JD Hy-Gard		JD Hy-Gard

	JD Hy-Gard

Tractor hitch
Rear Type	III
Control	electronic lower link
Rear lift (at ends)	13,230 lbs 6001 kg
Rear lift (at 24"/610mm)	12,790 lbs 5801 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	107.5 inches 273 cm
Weight	15190 to 16290 pounds
Front tire	16.9-28
Rear tire	20.8-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	90
Battery volts	12
Battery AH	150

Engine

Engine Detail — 414.4 ci / 6.8 L Diesel

Manufacturer	John Deere 6068 PowerTech
Configuration	turbocharged intercooled diesel, 6-cylinder, liquid-cooled
Displacement	414.4 ci 6.8 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Power	165 hp 123.0 kW
Fuel system	rotary injection pump
Rated RPM	2100
Torque	528.1 lb-ft 716.1 Nm
Torque RPM	1400
Starter volts	12

Transmission

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	partial power shift
Gears	16 forward and reverse
Clutch	hydraulic wet discs
Oil type	JD Hy-Gard

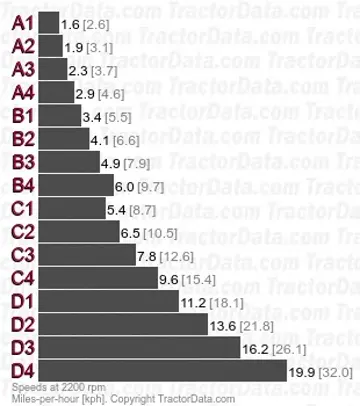

Four power shift gears (1-4) in four synchronized ranges (A-D).
With 20.8-38 R1 rear tires. Reverse speeds are 15% faster than forward.

	JD Hy-Gard

Dimensions

John Deere 6165J Tires
Standard tires (ag)	Front: 16.9-28. Rear: 20.8-38
Optional tires (ag)	Front: 18.4-26. Rear: 24.5-32
	Front: 480/70R28. Rear: 650/75R32
	Front: 16.9R30. Rear: 20.8R42

Dimensions
Wheelbase	107.5 inches 273 cm
Length	213.4 inches 542 cm
Height	115.4 inches 293 cm
Ground clearance	20.5 inches 52 cm
Rear axle	3.661 by 94.72 inches 92 by 2405 mm
Rear axle	3.661 by 109.3 inches 92 by 2776 mm
Front tread	56.1 to 84.1 inches 142 to 213 cm
Rear tread	62.5 to 126.7 inches 158 to 321 cm

John Deere 6165J Weight
ROPS	15,190 lbs 6890 kg
Cab	16,290 lbs 7389 kg
Ballasted	20,720 lbs 9398 kg
