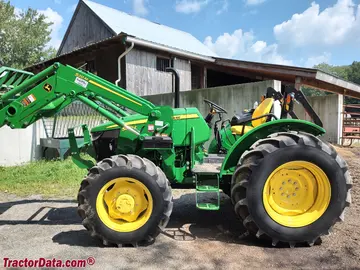

John Deere 5067E

The John Deere 5067E is a tractor produced by John Deere. It is equipped with a 179 ci 2.9 L engine. The rated power output is 67.6 hp 50.4 kW. Transmission: PowrReverser. Operating weight: 5555 to 6812 pounds.

Overview

	2023 - 5E SeriesUtility tractor
2023 -
5E Series
Utility tractor

2023 -
5E Series
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Pune, Maharashtra, India
Original price	$31,936 (2023 ROPS 2WD )
	$49,045 (2023 Cab 4WD )

John Deere 5067E Engine
John Deere 2.9L 3-cyl diesel
ROPS Fuel tank	19 gal 71.9 L
Cab Fuel tank	21 gal 79.5 L
Engine details ...

John Deere 5067E Transmissions
9-speed partially synchronized
12-speed power shuttle
Transmission details ...

John Deere 5067E Power
Engine (gross)	67.6 hp 50.4 kW
ROPS PTO (claimed)	53 hp 39.5 kW
Cab PTO (claimed)	49 hp 36.5 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	mechanical rear
Power steering
Hydraulic wet disc brakes
Two-post folding ROPS. Cab optional with air-conditioning.

Photos
John Deere 5067E photos...

Hydraulics
Type	open center
Rear valves	1 or 2
Mid valves	3 OptOptional
Pump flow	12.8 gpm 48.4 lpm
SCV flow	11.4 gpm 43.1 lpm
Total flow	18.8 gpm 71.2 lpm
Steering flow	6 gpm 22.7 lpm

Tractor hitch
Rear Type	II/I
Control	top link draft sensing
Rear lift (at ends)	3968 lbs 1799 kg
Rear lift (at 24"/610mm)	3192 lbs 1447 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2100
	540E@1588

Dimensions & Tires
Wheelbase	80.7 inches 204 cm
Weight	5555 to 6812 pounds
Front tire	11L-15
2WD Rear tire	16.9-28
Full dimensions and tires ...

John Deere 5067E attachments
front-end loader
Attachment details ...

5067E Serial Numbers
Location:	Serial number plate on the right side of the tractor frame, above the front axle.

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	60
Cab Charging amps	110
Battery volts	12
Battery AH	85

References
5E Utility Tractors published in 2022, by John Deere
Operator's Manual 5050E, 5060E, 5067E and 5057E Tractors (OMTA21460) published in 2022

Engine

	2023 - 5E SeriesUtility tractor
2023 -
5E Series
Utility tractor

2023 -
5E Series
Utility tractor

Engine Detail
John Deere 3029 EWR
turbocharged aftercooled diesel
3-cylinder
liquid-cooled
Displacement	179 ci 2.9 L
Bore/Stroke	4.19x4.33 inches 106 x 110 mm
Emissions	Tier IV
Emission control	diesel exhaust catalyst and exhaust gas recirculation
Power (gross)	67.6 hp 50.4 kW
Rated RPM	2100
Torque	206 lb-ft 279.3 Nm
Torque RPM	1500
Starter	electric
Starter volts	12

Transmission

	2023 - 5E SeriesUtility tractor
2023 -
5E Series
Utility tractor

2023 -
5E Series
Utility tractor

Transmission options
9-speed partially synchronized
12-speed power shuttle

Transmission
Transmission	SyncShuttle
Type	partially synchronized
Gears	9 forward and 3 reverse
Clutch	dry disc
Three synchronized gears in three ranges. Tractor must be stopped, and clutch used, to shift range.

Speeds
With 16.9-28 rear tires.

Transmission
Transmission	PowrReverser
Type	power shuttle
Gears	12 forward and reverse
Clutch	wet disc
Four synchronized gears (1-4) in three ranges (A-C) with power shuttle. Tractor must be stopped, and clutch used, to shift range.

Speeds
With 16.9-28 rear tires. Reverse speeds are 8% faster than forward.

Dimensions

	2023 - 5E SeriesUtility tractor
2023 -
5E Series
Utility tractor

2023 -
5E Series
Utility tractor

John Deere 5067E Tires
2WD Standard tires (ag)	Front: 11L-15. Rear: 16.9-28
4WD Standard tires (ag)	Front: 11.2-24. Rear: 16.9-28

Dimensions
Wheelbase	80.7 inches 204 cm
Length	143.3 inches 363 cm
Flange rear axle

John Deere 5067E Weight
2WD ROPS Shipping	5555 lbs 2519 kg
2WD Cab Shipping	6590 lbs 2989 kg
4WD ROPS Shipping	6029 lbs 2734 kg
4WD Cab Shipping	6812 lbs 3089 kg
Max Drawbar	2470 lbs (retracted) 1120 kg
	1675 lbs (extended) 759 kg

Attachments

	2023 - 5E SeriesUtility tractor
2023 -
5E Series
Utility tractor

2023 -
5E Series
Utility tractor

Attachment overview
John Deere 512 loader
John Deere 520M loader
