John Deere 5090M

The John Deere 5090M is a tractor produced by John Deere. It is equipped with a 276 ci 4.5 L engine. The rated power output is 89.2 hp 66.5 kW. Transmission: PowerReverser Plus. Operating weight: 8140 to 9185 pounds.

Overview

	2018 - 2022 5M SeriesUtility tractor
2018 - 2022
5M Series
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Augusta, Georgia, USA
Original price was $64,481 in 2021

John Deere 5090M Engine
John Deere 4.5L 4-cyl diesel
ROPS Fuel tank	29.6 gal 112.0 L
ROPS Fuel tank	37.3 galOptOptional 141.2 L
Cab Fuel tank	36.7 gal 138.9 L
Cab Fuel tank	45 galOptOptional 170.3 L
Engine details ...

John Deere 5090M Power
Engine (gross)	89.2 hp 66.5 kW
PTO (claimed)	75 hp 55.9 kW
PTO (tested)	83.74 hp 62.4 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	inboard planetary
Differential lock	electro-hydraulic
Power steering
Hydraulic wet disc brakes
Isolated open operator station with foldable two-post ROPS. Optional premium open station features extended fenders and integral work lights. Standard and premium cabs available with air-conditioning.

Hydraulics
Type	open center
Pump flow	18.4 gpm 69.6 lpm
Total flow	24.7 gpm 93.5 lpm
Steering flow	6.3 gpm 23.8 lpm

Tractor hitch
Rear Type	II/I
Control	lower-link draft sensing
Rear lift (at 24"/610mm)	5159 lbs 2340 kg
	5954 lbsOptOptional 2700 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/540E
	540/540E/1000 OptOptional

Dimensions & Tires
Wheelbase	92.5 inches 234 cm
Weight	8140 to 9185 pounds
Front tire	12.4R24
2WD Rear tire	18.4R30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References
5M Series published in 2018, by John Deere*
Operator's Manual 5094M, 5090M, 5100M, 5100MH, 5100ML, 5115M and 5115ML (FT4) Tractors (OMSU54598) published in 2017
*Publication contains known errors.

Engine

Engine Detail — 276 ci / 4.5 L Diesel

Manufacturer	John Deere 4045PWL
Configuration	turbocharged aftercooled diesel, 4-cylinder, liquid-cooled
Displacement	276 ci 4.5 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Emissions	Tier 4
Emission control	diesel oxidation catalyst and selective catalyst reduction (SCR) (DOC)
Rated Power (gross)	89.2 hp 66.5 kW
Rated RPM	2100
Starter	electric
Starter volts	12

Transmission

Transmission options
12-speed partially synchronized
16-speed power shuttle
32-speed two-speed power shift

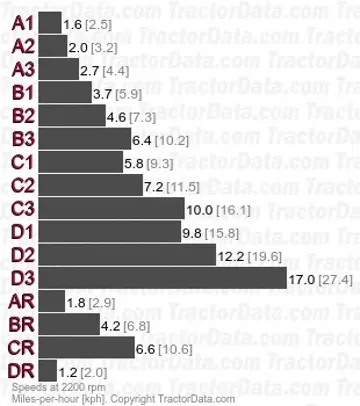

Transmission — SyncShuttle Plus

Transmission	SyncShuttle Plus
Type	partially synchronized
Gears	12 forward and 4 reverse
Clutch	wet disc
Three gears (1-3) plus reverse (R) in four ranges (A-D). Gear shifts are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift range.
With 480/70R28 rear tires.

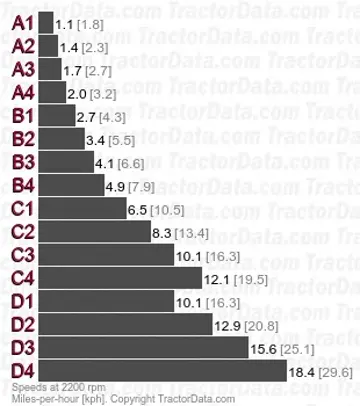

Transmission — PowrReverser

Transmission	PowrReverser
Type	power shuttle
Gears	16 forward and reverse
Clutch	wet disc
Four synchronized gears (1-4) in four synchronized ranges (A-D) with power shuttle. Push-button clutch.
With 480/70R28 rear tires. Reverse speeds are 10% faster than forward.

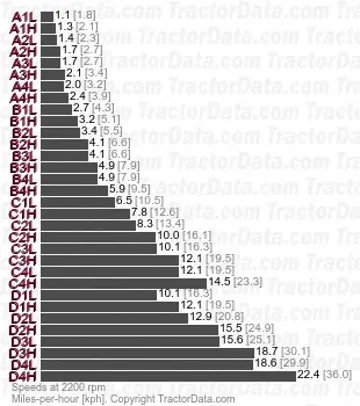

Transmission — PowerReverser Plus

Transmission	PowerReverser Plus
Type	two-speed power shift
Gears	32 forward and 16 reverse
Clutch	wet disc
Four synchronized gears (1-4) in four synchronized ranges (A-D) with power shuttle and push-button high-low shift. Push-button clutch.
With 480/70R28 rear tires. Reverse speeds are 10% faster than forward (high) speeds.

Dimensions

John Deere 5090M Tires
2WD Standard tires (ag)	Front: 12.4R24. Rear: 18.4R30
4WD Standard tires (ag)	Front: 320/85R24. Rear: 460/85R30

Dimensions
Wheelbase	92.5 inches 234 cm
Length	149.5 inches 379 cm
Height (ROPS)	102.1 inches 259 cm
Height (cab)	102.9 inches 261 cm

John Deere 5090M Weight
2WD ROPS Shipping	8140 lbs 3692 kg
2WD Cab Shipping	8580 lbs 3891 kg
4WD ROPS Shipping	8765 lbs 3975 kg
4WD Cab Shipping	9185 lbs 4166 kg

Tests

Nebraska Tractor Test 2204
Diesel 16-speed 4WD September 25 - 27, 2018 Link: Nebraska Tractor Test 2204 file
PTO performance
Max power	83.74 hp 62.4 kW
Fuel use	4.7 gal/hour 17.8 l/hour
Power at rated engine speed	75.61 hp 56.4 kW
Fuel use	4.8 gal/hour 18.2 l/hour
Power at rated PTO speed	77.84 hp 58.0 kW
Fuel use	4.8 gal/hour 18.2 l/hour
