Deutz-Fahr DX 4.50
The Deutz-Fahr DX 4.50 is a tractor produced by Deutz Fahr. It is equipped with a 249.3 ci 4.1 L engine. The rated power output is 80.5 hp 60.0 kW. Transmission: 20 forward and 5 reverse. Operating weight: 8069 to 8796 pounds.
Engine Power
80.5 hp
60.0 kW
Fuel & Capacities
31.7 gal
120.0 L
Transmission
20 forward and 5 reverse
Operating Weight
8069 to 8796 pounds
Deutz Fahr Deutz-Fahr DX 4.50 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1983 - 1989
DX4 SeriesUtility tractor |
|---|---|
1983 - 1989 | |
DX4 Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Deutz-Fahr |
Utility tractor | |
Deutz-Fahr DX 4.50 Engine | |
|---|---|
Deutz 4.1L 4-cyl diesel | |
Fuel tank | 31.7 gal
120.0 L |
Engine details ...  | |
Deutz-Fahr DX 4.50 Power | |
|---|---|
Engine | 80.5 hp
60.0 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Hydraulic drum brakes |
Hydraulics | |
|---|---|
Pressure | 2538 psi
175.0 bar |
Pump flow | 10.6 gpm
40.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 11465 lbs
5200 kg |
Front Hitch | II |
Front lift | 3968 lbs
1799 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Front PTO | independent |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 91.7 inches
232 cm |
4WD Wheelbase | 94.5 inches
240 cm |
Weight | 8069 to 8796 pounds |
Front tire | 10.00-16 |
2WD Rear tire | 16.9-38 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
DX4 published in 1984, by Deutz-Fahr |
Engine
Engine Detail — 249.3 ci / 4.1 L Diesel
Manufacturer | Deutz BF4L 913 |
Configuration | turbocharged diesel, 4-cylinder, air-cooled |
Displacement | 249.3 ci
4.1 L |
Bore/Stroke | 3.94x4.84 inches
100 x 123 mm |
Power | 80.5 hp
60.0 kW |
Rated RPM | 2300 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
15-speed synchronized | |
20-speed creeper |

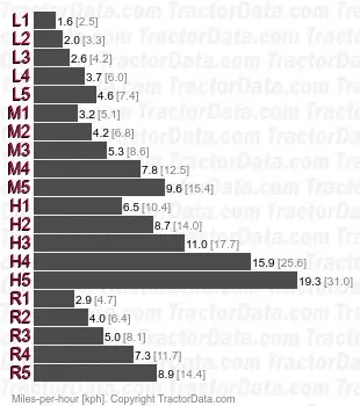

Transmission — 15 forward and 5 reverse synchronized
Type | synchronized |
Gears | 15 forward and 5 reverse |
Five gears (1-5) in three ranges (L/M/H) plus reverse (R) range. | |
With 18.4-34 rear tires | |
 | |
Transmission | |
Type | creeper |
Gears | 20 forward and 5 reverse |
With 18.4-34 rear tires. | |
 | |
Dimensions
Deutz-Fahr DX 4.50 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 10.00-16. Rear: 16.9-38 |
4WD Standard tires (ag) | Front: 13.6-24. Rear: 16.9-38 |
Dimensions | |
|---|---|
2WD Wheelbase | 91.7 inches
232 cm |
4WD Wheelbase | 94.5 inches
240 cm |
2WD Length | 159.1 inches
404 cm |
4WD Length | 162.3 inches
412 cm |
Width | 79.9 inches
202 cm |
Height | 104.3 inches
264 cm |
2WD Ground clearance | 20.8 inches
52 cm |
4WD Ground clearance | 17.9 inches
45 cm |
2WD Front tread | 60 to 79.7 inches
152 to 202 cm |
4WD Front tread | 59.5 to 74.4 inches
151 to 188 cm |
Rear tread | 63 to 78.7 inches
160 to 199 cm |
Deutz-Fahr DX 4.50 Weight | |
|---|---|
2WD | 8069 lbs
3660 kg |
4WD | 8796 lbs
3989 kg |
2WD Max capacity | 12125 lbs
5499 kg |
4WD Max capacity | 12787 lbs
5800 kg |
Photos
Deutz-Fahr DX 4.50 tractor photo
