John Deere 5310

The John Deere 5310 is a tractor produced by John Deere. It is equipped with a 179 ci 2.9 L engine. The rated power output is 53 hp 39.5 kW. Transmission: 24 forward and reverse. Operating weight: 6800 lbs 3084 kg.

Overview

	2000 - 2002 Utility tractorCarraro built
2000 - 2002
Utility tractor
Carraro built

2000 - 2002
Utility tractor
Carraro built

Production
Distributor	John Deere
Manufacturer	Carraro
Utility tractor

John Deere 5310 Engine
John Deere 2.9L 3-cyl
Engine details ...

John Deere 5310 Power
Engine (net)	53 hp 39.5 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Steering	hydrostatic power
Wet disc brakes
Trailer brakes	hydraulic OptOptional
Cab standard.

Capacity
Fuel	21.1 gal 79.9 L
2WD Hydraulic system	9.5 gal 36.0 L
4WD 12-Speed Hydraulic system	10 gal 37.9 L
4WD 24-Speed Hydraulic system	11.4 gal 43.1 L

Hydraulics
Type	open center
2WD Capacity	9.5 gal 36.0 L
4WD 12-Speed Capacity	10 gal 37.9 L
4WD 24-Speed Capacity	11.4 gal 43.1 L
Pump flow	10.9 gpm 41.3 lpm
Steering flow	6.5 gpm 24.6 lpm

Tractor hitch
Rear Type	II/I
Control	position and draft control
Rear lift	5395 lbs 2447 kg

Power Take-off (PTO)
Rear PTO Type	540/540E
	540/1000
Engine RPM	540@1938
	540E@1648
	1000@1962

Dimensions & Tires
Wheelbase	82.7 inches 210 cm
Weight	6800 lbs 3084 kg
Front tire	7.50-16
2WD Rear tire	16.9R30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	40
Cab Charging amps	60
Battery volts	12
Battery AH	100

Engine

	2000 - 2002 Utility tractorCarraro built
2000 - 2002
Utility tractor
Carraro built

2000 - 2002
Utility tractor
Carraro built

Engine Detail — 179 ci / 2.9 L

Manufacturer	John Deere 3029DAT50
Configuration	3-cylinder, liquid-cooled
Displacement	179 ci 2.9 L
Bore/Stroke	4.19x4.33 inches 106 x 110 mm
Rated Power (net)	53 hp 39.5 kW
Compression	17.2:1
Rated RPM	2300
Idle RPM	800-2510
Operating RPM	1500-2300
Torque	140.9 lb-ft 191.1 Nm
Torque RPM	1500
Firing order	1-2-3
Starter	electric
Starter volts	12
Starter power	3.4 hp 2.5 kW
Oil capacity	9 qts 8.5 L
ROPS Coolant capacity	10 qts 9.5 L
Cab Coolant capacity	11 qts 10.4 L

Transmission

	2000 - 2002 Utility tractorCarraro built
2000 - 2002
Utility tractor
Carraro built

2000 - 2002
Utility tractor
Carraro built

Transmission options
12-speed partially synchronized
24-speed partially synchronized
24-speed two-speed power shift

Transmission — 12 forward and reverse partially synchronized

Type	partially synchronized
Gears	12 forward and reverse
Four gears (1-4) in three ranges (A, B, C) with reverse lever. Gear shifts are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift range or direction.
With 16.9-30 rear tires. Reverse speeds are 15% slower than forward.

Transmission — 24 forward and reverse partially synchronized

Type	partially synchronized
Gears	24 forward and reverse
Four gears (1-4) in three ranges (A, B, C) with reverse lever and Hi-Lo shift. Gear shifts are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift range, direction, or Hi-Lo.
With 16.9-30 rear tires. Reverse speeds are 15% slower than forward.

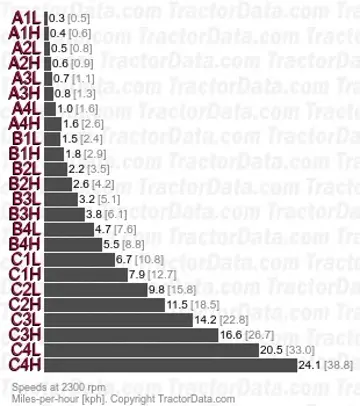

Transmission — 24 forward and reverse two-speed power shift

Type	two-speed power shift
Gears	24 forward and reverse
Four gears (1-4) in three ranges (A, B, C) with reverse lever and push-button Electro-Hydraulic Hi-Lo. Gear shifts are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift range ordirection.
With 16.9-30 rear tires. Reverse speeds are 15% slower than forward.

Dimensions

	2000 - 2002 Utility tractorCarraro built
2000 - 2002
Utility tractor
Carraro built

2000 - 2002
Utility tractor
Carraro built

John Deere 5310 Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 16.9R30
4WD Standard tires (ag)	Front: 11.2R24. Rear: 16.9R30

Dimensions
Wheelbase	82.7 inches 210 cm
Length	132 inches 335 cm
Height (cab)	94.5 inches 240 cm
Weight	6800 lbs 3084 kg
