Kubota L4610

The Kubota L4610 is a tractor produced by Kubota. It is equipped with a 134.1 ci 2.2 L engine. The listed engine power is Diesel (net): 46 hp / 34.3 kW; Diesel (gross): 47.8 hp / 35.6 kW. Transmission: Glide Shift (GST). Operating weight: 3180 to 3650 pounds.

Overview

	1999 - 2002 Grand L10 SeriesCompact Utility tractor Grand L10 Series Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Variants
L4610GST	Glide-Shift ROPS
L4610HST	Hydro ROPS
L4610HSTC	Hydro Cab

Kubota L4610 Engine
Kubota 2.2L 4-cyl diesel
Fuel tank	9.2 gal 34.8 L
Engine details ...

Kubota L4610 Power
Engine (gross)	47.8 hp 35.6 kW
Engine (net)	46 hp 34.3 kW
Gear PTO (claimed)	40.5 hp 30.2 kW
Hydro PTO (claimed)	39 hp 29.1 kW

Mechanical
Four-wheel drive
Steering	hydrostatic power
Wet disc brakes
Two-post ROPS. Cab optional.

Hydraulics
Type	open center
Pump flow	9.6 gpm 36.3 lpm
Total flow	14.4 gpm 54.5 lpm
Steering flow	4.8 gpm 18.2 lpm

Tractor hitch
Rear Type	1
Control	position control and optional draft control
Rear lift (at 24"/610mm)	2,310 lbs 1047 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)

Dimensions & Tires
Wheelbase	71.5 inches 181 cm
Weight	3180 to 3650 pounds
Front tire	8.3-16
Rear tire	14.9-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	40 (ROPS)
	55 (Cab)
Battery CCA	582
Battery volts	12

References
L3010/L3410/L3710/L4310/L4610 published in 2000, by Kubota

Engine

Engine Detail — 134.1 ci / 2.2 L Diesel

Manufacturer	Kubota E-TVCS V-2203
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	134.1 ci 2.2 L
Bore/Stroke	3.425x3.638 inches 87 x 92 mm
Power (net)	46 hp 34.3 kW
Power (gross)	47.8 hp 35.6 kW
Rated RPM	2700
Starter volts	12

Transmission

Transmission options
8-speed automatic fully synchronized
hydrostatic
16-speed creeper

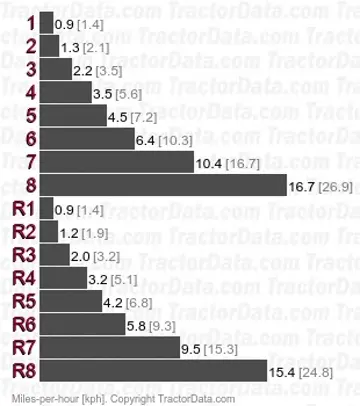

Transmission — Glide Shift (GST)

Transmission	Glide Shift (GST)
Type	automatic fully synchronized
Gears	8 forward and reverse
Clutch	dry disc
The Glide Shift allows clutchless automatic shifting between gears.

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)

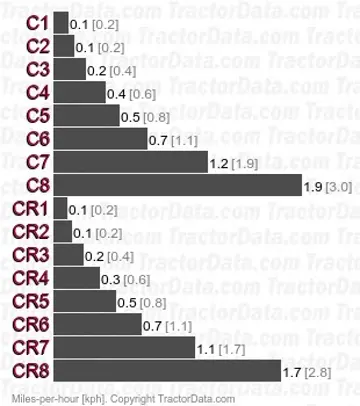

Transmission — 16 forward and reverse creeper

Type	creeper
Gears	16 forward and reverse
Optional creeper range available for the GST transmission.

Dimensions

Kubota L4610 Tires
Ag front	8.3-16
Ag rear	14.9-24

Dimensions
Wheelbase	71.5 inches 181 cm
Length	117.5 inches 298 cm
Width	62.4 inches 158 cm
Height (ROPS)	84.8 inches 215 cm
Height (cab)	86.8 inches 220 cm
Ground clearance	15 inches 38 cm
Front tread	50.8 inches 129 cm
Rear tread	46.5/47.2/51.2/57.1/60.8 inches 118/119/130/145/154 cm

Kubota L4610 Weight
	3,180 lbs (ROPS GST) 1442 kg
	3,200 lbs (ROPS Hydro) 1451 kg
	3,650 lbs (Cab Hydro) 1655 kg

Attachments

Attachment overview
Front-end loader
Backhoe
Advertised attachments for the L4710 included 72-inch rear-mount finish mowers (RCR72-CA) and rotary cutters (L372CA), tillers (FL1521C, L60CA), post-hole diggers (BL80A), and box scrapers (L7554).

Kubota BL4690 Backhoe
Backhoe type	Kubota BL4690 Backhoe
Bucket width	10 inches 25 cm
	12 inches 30 cm
	16 inches 40 cm
	24 inches 60 cm
Digging depth	90.2 inches 229 cm
Reach from pivot	116.5 inches 295 cm
Loading height	75.5 inches 191 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	2,950 lbs 1338 kg
Dipperstick force	1,740 lbs 789 kg

Photos

Kubota L4610
