John Deere 5415

The John Deere 5415 is a tractor produced by John Deere. It is equipped with a 276 ci 4.5 L engine. The listed engine power is Diesel (listed): 74 hp / 55.2 kW; Diesel (listed): 3.8 hp / 2.8 kW. Transmission: Collar Shift. Operating weight: 6724 to 7055 pounds.

Overview

	2003 - 2008 Utility tractorAgritalia built Utility tractor Agritalia built

Production
Distributor	John Deere
Manufacturer	Agritalia
Utility tractor
Built in Italy

Variants
5415HC	High Crop tractor with high clearance
5414N	narrow-width tractor

John Deere 5415 Engine
John Deere 4.5L 4-cyl diesel
Fuel tank	25.4 gal 96.1 L
Engine details ...

John Deere 5415 Power
Engine	74 hp 55.2 kW

Mechanical
Steering	hydrostatic power
Hydraulic wet disc brakes

Hydraulics
Type	open center
Pressure	1900 psi 131.0 bar
Pump flow	12.4 gpm 46.9 lpm
	15.8 gpmOptOptional 59.8 lpm
Steering flow	6.5 gpm 24.6 lpm
Steering press.	2700 psi 186.2 bar

Tractor hitch
Rear Type	2/1
Rear lift (at ends)	5,845 lbs 2651 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/540E/1000

Dimensions & Tires
Weight	6724 to 7055 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	40
Cab Charging amps	65
Battery CCA	550
Battery volts	12
Battery AH	100
Battery Group	27F

Engine

Engine Detail — 276 ci / 4.5 L Diesel

Manufacturer	John Deere 4045DAT70
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	276 ci 4.5 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Power	74 hp 55.2 kW
Compression	17.6:1
Rated RPM	2300
Torque	199.1 lb-ft 270.0 Nm
Torque RPM	1600
Firing order	1-3-4-2
Starter volts	12
Starter power	3.8 hp 2.8 kW
ROPS Coolant capacity	12.6 qts 11.9 L
Cab Coolant capacity	13.7 qts 13.0 L
Intake valve clearance	0.014 inches 0.356 mm
Exhaust valve clearance	0.018 inches 0.457 mm
Oil capacity	8.5 qts 8.0 L

Transmission

Transmission options
12-speed
24-speed
9-speed

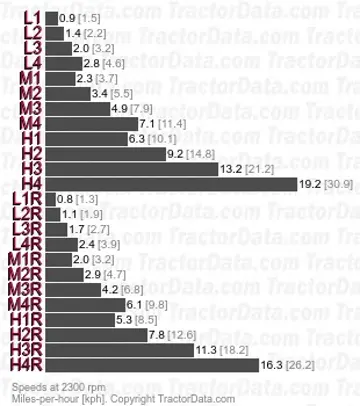

Transmission — 12 forward and reverse

Gears	12 forward and reverse
With 16.9R30 rear tires

Transmission — 24 forward and reverse

Gears

24 forward and reverse

Transmission — 24 forward and 12 reverse

Gears

24 forward and 12 reverse

Transmission — Collar Shift

Transmission	Collar Shift
Gears	9 forward and 3 reverse

Dimensions

John Deere 5415 Tires

Dimensions
Length	125.9 inches 319 cm
Width	68.7 inches 174 cm
4WD Clearance (front axle)	15.4 inches 39 cm
2WD Clearance (front axle)	18.3 inches 46 cm
4WD High Crop 31 2WD High Crop} Clearance (front axle)	25.6 inches 65 cm

John Deere 5415 Weight
Shipping	6,724 lbs (2WD ROPS) 3050 kg
	7,055 lbs (4WD ROPS) 3200 kg
2WD Max capacity	11,023 lbs 5000 kg
4WD Max capacity	11,244 lbs 5100 kg

John Deere 5415 Height
Steering wheel	65.4 inches 166 cm
Hood	59.1 inches 150 cm
ROPS	91.2 inches 231 cm
