John Deere 6130D

The John Deere 6130D is a tractor produced by John Deere. It is equipped with a 276 ci 4.5 L engine. The rated power output is 129.8 hp 96.8 kW. Transmission: John Deere Top Shaft Syncronized (TSS). Operating weight: 8730 to 9920 pounds.

Overview

	2008 - 2016 Model year 2008-20122013-2016 6D SeriesUtility tractor
2008 - 2016
Model year 2008-20122013-2016
6D Series
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Saltillo, Mexico
Original price	$53,639 (2011)

John Deere 6130D Engine
John Deere 4.5L 4-cyl diesel
Engine details ...

John Deere 6130D Power
Engine (gross)	129.8 hp 96.8 kW
PTO (claimed)	105 hp 78.3 kW
Drawbar (tested)	91.70 hp 68.4 kW
PTO (tested)	109.64 hp 81.8 kW
Performance test details ...

Mechanical
Four-wheel drive
Steering	hydrostatic power
Independent mechanical wet disc brakes
Folding 2-post ROPS or cab with heat and A/C

Capacity
Fuel	41.7 gal 157.8 L
Hydraulic system	15.3 gal 57.9 L
Front axle	6.9 qts 6.5 L
Front hubs	2.1 qts (each) 2.0 L

Hydraulics
Type	open center
Capacity	15.3 gal 57.9 L
Pressure	2830 psi 195.1 bar
Valves	2 to 3
Pump flow	17.6 gpm 66.6 lpm
Steering flow	6.9 gpm 26.1 lpm

Tractor hitch
Rear Type	II
Control	mechanical lower link
Rear lift (at 24"/610mm)	6,800 lbs 3084 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	dry disc
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@2100
	1000@2100

Dimensions & Tires
Wheelbase	92.5 inches 234 cm
Weight	8730 to 9920 pounds
Front tire	14.9-24
Rear tire	18.4-34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	70 (ROPS)
	90 (cab)
Battery CCA	925
Battery volts	12
Battery AH	180
Battery Group	31

References
All-New 6D Series Tractors published in 2008, by John Deere

Engine

Engine Detail — 276 ci / 4.5 L Diesel

Configuration	intercooled turbocharged diesel, 4-cylinder 8-valve, liquid-cooled
John Deere 4045H PowerTech E
Displacement	276 ci 4.5 L
Bore/Stroke	4.20x5.00 inches 107 x 127 mm
Emissions	Tier 3
Rated Power (gross)	129.8 hp 96.8 kW
Fuel system	Denso electronic high-pressure common rail
Compression	19:1
Rated RPM	2100
Idle RPM	900-2200
Torque	387 lb-ft 524.8 Nm
Torque RPM	1500
Firing order	1-3-4-2
Starter volts	12
Coolant capacity	17.4 qts 16.5 L
Intake valve clearance	0.014 inches 0.356 mm
Exhaust valve clearance	0.018 inches 0.457 mm
Oil capacity	15.85 qts 15.0 L
Oil change	250 h
	500 h (JD TorqGARD oil)

Transmission

Transmission options
9-speed partially synchronized with power shuttle
9-speed partially synchronzied

Transmission — John Deere PowrReverser

Transmission	John Deere PowrReverser
Type	partially synchronized with power shuttle
Gears	9 forward and reverse
Clutch	hydraulic wet disc
Oil capacity	61.2 qts 57.9 L

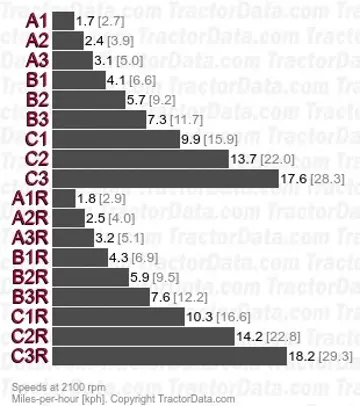

Three gears (1-3) in each of three ranges (A-C) plus left-hand reverser. Forward/reverse powershift. Synchronized shift between gears with clutch. Shifts between ranges are unsynchronized: the tractor must be stopped and clutch used to shift range.
With 18.4-34 rear tires.

Transmission — John Deere Top Shaft Syncronized (TSS)

Transmission	John Deere Top Shaft Syncronized (TSS)
Type	partially synchronzied
Gears	9 forward and 3 reverse
Clutch	dry disc
Oil capacity	61.2 qts 57.9 L
Three gears (1-3) plus reverse (R) in each of three ranges (A-C). Shifts between gears, including to reverse, are synchronized using the clutch. Shifts between ranges are not synchronized, the operator must stop the tractor and use the clutch.
With 18.4-34 rear tires.

Dimensions

John Deere 6130D Tires
Standard tires (ag)	Front: 14.9-24. Rear: 18.4-34
Optional tires (ag)	Front: 14.9-24. Rear: 18.4-38

Dimensions
Wheelbase	92.5 inches 234 cm
Length	166 inches 421 cm
Width	72 inches 182 cm
Height (cab)	107.5 inches 273 cm
Height (exhaust)	106 inches 269 cm
Clearance (front axle)	18 inches 45 cm
Rear axle	72 inch length 1828 mm (flange)
Front tread	63.6 to 79.4 inches 161 to 201 cm
Rear tread	59.5/63.5/67.6/71.3/75.4/79.4 inches 151/161/171/181/191/201 cm

John Deere 6130D Weight
Shipping	8,730 lbs (ROPS) 3959 kg
	9,390 lbs (cab) 4259 kg
Operating	9,920 lbs (cab) 4499 kg
Ballasted	12,370 lbs 5611 kg

Tests

OCED Tractor Test 1950
Diesel 9-speed 4WD March 30 - April 21, 2009 Link: OCED Tractor Test 1950 file
PTO performance
Max power	109.64 hp 81.8 kW
Fuel use	6.7 gal/hour 25.4 l/hour
Power at rated engine speed	108.29 hp 80.8 kW
Fuel use	6.7 gal/hour 25.4 l/hour
Power at rated PTO speed	109.13 hp 81.4 kW
Fuel use	6.8 gal/hour 25.7 l/hour
Drawbar performance
Max power	91.70 hp 68.4 kW
Fuel use	6.8 gal/hour 25.7 l/hour
Max pull	10,426 lbs 4729 kg

Attachments

Attachment overview
John Deere 563 loader
John Deere 673 loader
