John Deere 6145J

The John Deere 6145J is a tractor produced by John Deere. It is equipped with a 414.4 ci 6.8 L engine. The rated power output is 145 hp 108.1 kW. Transmission: John Deere PowrQuad. Operating weight: 11290 to 12460 pounds.

Overview

	2010 - 6J SeriesUtility tractor
2010 -
6J Series
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Montenegro, Brazil

John Deere 6145J Engine
John Deere 6.8L 6-cyl diesel
Fuel tank	83.2 gal 314.9 L
Engine details ...

John Deere 6145J Transmission
16-speed partial power shift
Transmission details ...

John Deere 6145J Power
Engine	145 hp 108.1 kW
PTO (claimed)	123 hp 91.7 kW

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic
Power steering
Hydraulic wet disc brakes
Four-post ROPS. Cab optional.

Hydraulics
Type	closed center pressure-flow compensated (PFC)
Pressure	2900 psi 200.0 bar
Valves	2
Pump flow	26.42 gpm 100.0 lpm
SCV flow	26.36 gpm 99.8 lpm
Oil type	JD Hy-Gard		JD Hy-Gard

	JD Hy-Gard

Tractor hitch
Rear Type	II
Control	electronic lower link
Rear lift (at ends)	10,160 lbs 4608 kg
	14,990 lbs (optional) 6799 kg
Rear lift (at 24"/610mm)	7,893 lbs 3580 kg
	11,640 lbs (optional) 5279 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	104.3 inches 264 cm
Weight	11290 to 12460 pounds
Front tire	18.4-26
Rear tire	24.5-32
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	90
Battery volts	12
Battery AH	150

Engine

Engine Detail — 414.4 ci / 6.8 L Diesel

Manufacturer	John Deere 6068 PowerTech
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	414.4 ci 6.8 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Power	145 hp 108.1 kW
Fuel system	rotary injection pump
Rated RPM	2100
Torque	448.4 lb-ft 608.0 Nm
Torque RPM	1400
Starter volts	12
Coolant capacity	26.4 qts 25.0 L
Oil capacity	20.1 qts 19.0 L

Transmission

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	partial power shift
Gears	16 forward and reverse
Clutch	hydraulic wet discs
Oil type	JD Hy-Gard

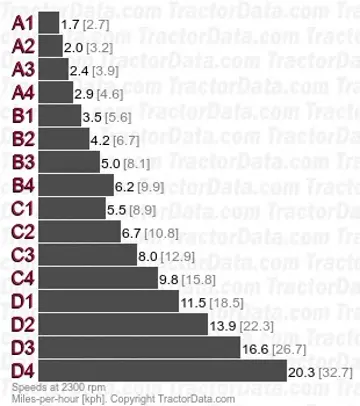

Four power shift gears (1-4) in four synchronized ranges (A-D).
With 24.5-32 R1 rear tires. Reverse speeds are 15% faster than forward.

	JD Hy-Gard

Dimensions

John Deere 6145J Tires
Standard tires (ag)	Front: 18.4-26. Rear: 24.5-32
Optional tires (ag)	Front: 16.9-26. Rear: 18.4-38
	Front: 16.9-26. Rear: 18.4-38
	Front: 14.9-28. Rear: 23.1-30
	Front: 14.9-28. Rear: 18.4-38
	Front: 12.4-36. Rear:
	Front: 320/90R50. Rear:
	Front: 16.9-24. Rear: 18.4-34

Dimensions
Wheelbase	104.3 inches 264 cm
Length	195.6 inches 496 cm
Height	112.7 inches 286 cm
Ground clearance	22.4 inches 56 cm
Bar rear axle	3.386 by 108 inches 86 by 2743 mm
Front tread	62.9 to 82.6 inches 159 to 209 cm
Rear tread	66.5 to 104.3 inches 168 to 264 cm

John Deere 6145J Weight
	11,290 lbs (ROPS) 5121 kg
	12,460 lbs (cab) 5651 kg
Ballasted	17,640 lbs 8001 kg
