John Deere 4730
The John Deere 4730 is a tractor produced by John Deere. It is equipped with a 466 ci 7.6 L engine. The rated power output is 117 hp 87.2 kW. Transmission: Power Shift. Operating weight: 10900 lbs 4944 kg.
Engine Power
117 hp
87.2 kW
Fuel & Capacities
46 gal
174.1 L
Transmission
Power Shift
Operating Weight
10900 lbs
4944 kg
John Deere 4730 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1977 - 1981
Row-Crop tractor |
|---|---|
1977 - 1981 | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | John Deere |
Row-Crop tractor | |
Built in Waterloo, Iowa, USA | |
The John Deere 4730 was the same as the model 4240, exported to Argentina from the United States. | |
John Deere 4730 Engine | |
|---|---|
John Deere 7.6L 6-cyl diesel | |
Fuel tank | 46 gal
174.1 L |
Engine details ...  | |
John Deere 4730 Power | |
|---|---|
Engine | 117 hp
87.2 kW |
PTO (claimed) | 110 hp
82.0 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Sound Gard cab with air-conditioning optional. |
Tractor hitch | |
|---|---|
Rear Type | II |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 105.7 inches
268 cm |
Weight | 10900 lbs
4944 kg |
Front tire | 10.00-16 |
Rear tire | 18.4-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 61 (open) |
72 (cab) | |
Batteries | 2 |
Battery volts | 6 |
Battery Group | 5D |
References | |
|---|---|
 | |
John Deere 4430 Tractor (OM-R65532 A7) published in 1976 |
Engine
Engine Detail — 466 ci / 7.6 L Diesel
Manufacturer | John Deere |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 466 ci
7.6 L |
Bore/Stroke | 4.56x4.75 inches
116 x 121 mm |
Power | 117 hp
87.2 kW |
Compression | 17:1 |
Rated RPM | 2200 |
Idle RPM | 800-2200 |
Firing order | 1-5-3-6-2-4 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 16 qts
15.1 L |
Coolant capacity | 30 qts
28.4 L |
Transmission
Transmission options | |
|---|---|
8-speed partially synchronized | |
16-speed partial power shift | |
8-speed full power shift |
Transmission — Syncro-Range
Transmission | Syncro-Range |
Type | partially synchronized |
Gears | 8 forward and 2 reverse |
With 18.4-38 rear tires. | |
 | |

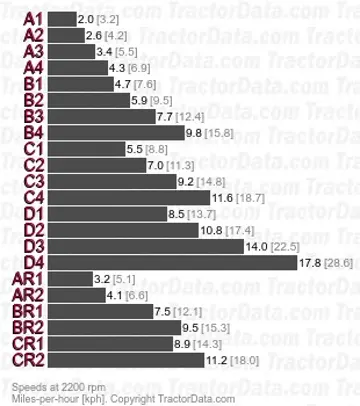

Transmission — Quad-Range
Transmission | Quad-Range |
Type | partial power shift |
Gears | 16 forward and 6 reverse |
With 18.4-38 rear tires. | |
 | |
Transmission — Power Shift
Transmission | Power Shift |
Type | full power shift |
Gears | 8 forward and 4 reverse |
With 18.4-38 rear tires. | |
 | |
Dimensions
John Deere 4730 Tires | |
|---|---|
Ag front | 10.00-16 |
Ag rear | 18.4-38 |
Dimensions | |
|---|---|
Wheelbase | 105.7 inches
268 cm |
Length | 156.6 inches
397 cm |
Width | 90 inches
228 cm |
Height (exhaust) | 123 inches
312 cm |
Weight | 10900 lbs
4944 kg |
