John Deere 6200

The John Deere 6200 is a tractor produced by John Deere. It is equipped with a 239 ci 3.9 L engine. The rated power output is 89 hp 66.4 kW. Transmission: John Deere PowrQuad Creeper. Operating weight: 7420 to 8850 pounds.

Overview

	1993 - 1998 6000 SeriesUtility tractor
1993 - 1998
6000 Series
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany
Original price was $31,000 in 1998

Variants
6200	utility tractor
6200L	low-profile

John Deere 6200 Engine
John Deere 3.9L 4-cyl diesel
Engine details ...

John Deere 6200 Power
Engine (gross)	89 hp 66.4 kW
Drawbar (claimed)	53 hp 39.5 kW
PTO (claimed)	66 hp 49.2 kW
Drawbar (tested)	53.40 hp 39.8 kW
PTO (tested)	70.5 hp 52.6 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Differential hydraulic wet disc brakes
Two-post folding ROPS. ComfortGard Cab optional.

Capacity
ROPS Fuel	29 gal 109.8 L
Cab Fuel	42 gal 159.0 L
Hydraulic system	12.4 gal 46.9 L

Hydraulics
Type	closed-center pressure flow compensated (PFC)
Capacity	12.4 gal 46.9 L
Pressure	2900 psi 200.0 bar
Valves	1 to 4
Total flow	18 gpm 68.1 lpm
	25 gpmOptOptional 94.6 lpm

Tractor hitch
Rear Type	II
Control	lower link draft sensing
Rear lift (at ends)	5020 lbs 2277 kg
Rear lift (at 24"/610mm)	4745 lbs 2152 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540
	540/1000 OptOptional

Dimensions & Tires
Wheelbase	94.6 inches 240 cm
Weight	7420 to 8850 pounds
Front tire	7.50-18
2WD Rear tire	18.4-30
Full dimensions and tires ...

Links
:

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References
New 66- to 85-HP 6000 Series Tractors published in 1992, by John Deere
66- to 85-HP 6000 Series Tractors published in 1996, by John Deere
Operator's Manual 6200, 6200L, 6300, 6300L, 6400, 6400L and 6500L Tractors (OMAL77469) published in 1994
6000 Series Tractors and Advantage Series Tractors Product Information Handbook published in 1997, by John Deere
66- to 85-HP 6000 Series Tractors published in 1996, by John Deere

Engine

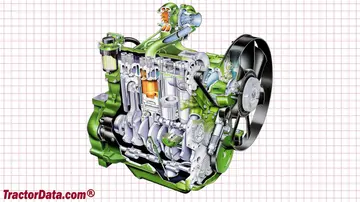

Engine Detail — 239 ci / 3.9 L Diesel

Manufacturer	John Deere CD4039
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	239 ci 3.9 L
Bore/Stroke	4.19x4.33 inches 106 x 110 mm
Power (gross)	89 hp 66.4 kW
Rated RPM	2300
Idle RPM	1840-2300
Starter volts	12
Oil capacity	12.8 qts 12.1 L
ROPS Coolant capacity	14.5 qts 13.7 L
Cab Coolant capacity	18.5 qts 17.5 L

John Deere 6200 Engine

Transmission

Transmission options
12-speed fully synchronized
16-speed partial power shift
21-speed partially synchronized
28-speed partial power shift

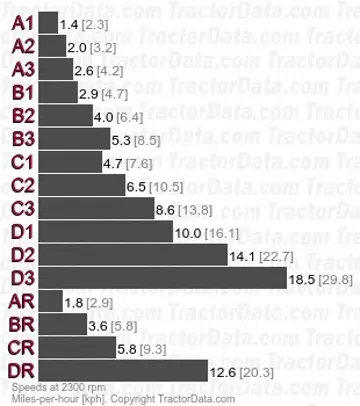

Transmission — John Deere SyncroPlus

Transmission	John Deere SyncroPlus
Type	fully synchronized
Gears	12 forward and 4 reverse
Clutch	triple 9-inch wet disc PermaClutch 2
Standard transmission. Three gears, plus reverse, in four ranges.
With 18.4-30 rear tires.

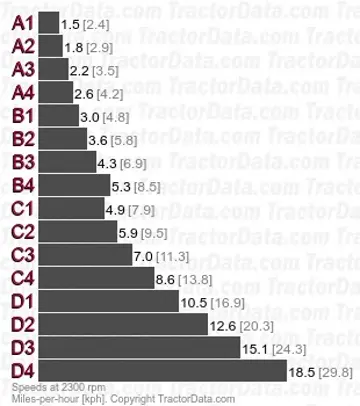

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	partial power shift
Gears	16 forward and reverse
Clutch	triple 9-inch wet disc PermaClutch 2
Four power shift gears (1-4) in four synchronized ranges (A-D) with power shuttle. Shuttle may be either right or left hand.
With 18.4-30 rear tires. Reverse speeds are 20% faster than forward.

Transmission — John Deere SyncroPlus Creeper

Transmission	John Deere SyncroPlus Creeper
Type	partially synchronized
Gears	21 forward and 7 reverse
Adds a creeper range to the SyncroPlus, engaged by a separate lever.

Transmission — John Deere PowrQuad Creeper

Transmission	John Deere PowrQuad Creeper
Type	partial power shift
Gears	28 forward and reverse
Creeper range provides an additional 12 speeds to the PowrQuad transmission.

Dimensions

John Deere 6200 Tires
2WD Standard tires (ag)	Front: 7.50-18. Rear: 18.4-30
4WD Standard tires (ag)	Front: 12.4-24. Rear: 18.4-30

Dimensions
Wheelbase	94.6 inches 240 cm
Length	165 inches 419 cm
Width	85.7 inches 217 cm
Clearance (front axle)	22.8 inches (2WD) 57 cm
	18 inches (4WD) 45 cm

John Deere 6200 Weight
2WD ROPS Shipping	7420 lbs 3365 kg
4WD ROPS Shipping	7916 lbs 3590 kg
2WD cab Shipping	7927 lbs 3595 kg
4WD cab Shipping	8423 lbs 3820 kg
Operating	8850 lbs 4014 kg

John Deere 6200 Height
Steering wheel	80.1 inches 203 cm
ROPS	100 inches 254 cm
Cab	102.1 inches 259 cm
Exhaust	101.5 inches (corner post) 257 cm
	94.6 inches (hood) 240 cm

Tests

Tractor Tests
OECD 1540: diesel SyncroPlus 2WD
OECD 1540: diesel PowrQuad 2WD

OCED Tractor Test 1540
Diesel SyncroPlus 2WD 1994 Link: OCED Tractor Test 1540 file
PTO performance
Max power	70.5 hp 52.6 kW
Fuel use	3.9 gal/hour 14.8 l/hour
Power at rated engine speed	68.30 hp 50.9 kW
Fuel use	4.0 gal/hour 15.1 l/hour
Power at rated PTO speed	69.6 hp 51.9 kW
Fuel use	3.9 gal/hour 14.8 l/hour
Drawbar performance
Max power	53.20 hp 39.7 kW
Fuel use	3.9 gal/hour 14.8 l/hour
Gear 3B used for power test.
Max pull	7050 lbs 3197 kg
Gear 2B used for pull test.

OCED Tractor Test 1540
Diesel PowrQuad 2WD 1994 Link: OCED Tractor Test 1540 file
PTO performance
Max power	70.0 hp 52.2 kW
Fuel use	3.8 gal/hour 14.4 l/hour
Power at rated engine speed	66.80 hp 49.8 kW
Fuel use	3.9 gal/hour 14.8 l/hour
Power at rated PTO speed	68.3 hp 50.9 kW
Fuel use	3.8 gal/hour 14.4 l/hour
Drawbar performance
Max power	53.40 hp 39.8 kW
Fuel use	3.9 gal/hour 14.8 l/hour
Gear 2C used for power test.
Max pull	7680 lbs 3483 kg
Gear 1B used for pull test.

Attachments

Attachment overview
John Deere 620 loader
John Deere 640NSL loader
John Deere 640SL loader
