John Deere 6210R

The John Deere 6210R is a tractor produced by John Deere. It is equipped with a 415 ci 6.8 L engine. The rated power output is 210 hp 156.6 kW. Transmission: DirectDrive. Operating weight: 17200 to 18180 pounds.

Overview

	2012 - 2014 6R SeriesRow-Crop tractor
2012 - 2014
6R Series
Row-Crop tractor

Production
Manufacturer	John Deere
Row-Crop tractor
Built in Waterloo, Iowa, USA
Original price was $166,924 in 2014 with AutoQuad

John Deere 6210R Engine
John Deere 6.8L 6-cyl diesel
Fuel tank	95 gal 359.6 L
	107 gal (optional) 405.0 L
Engine details ...

John Deere 6210R Power
Engine (gross)	210 hp 156.6 kW
Engine (max)	231 hp 172.3 kW
PTO (claimed)	175 hp 130.5 kW
Drawbar (tested)	170.30 hp 127.0 kW
PTO (tested)	205.18 hp 153.0 kW
Performance test details ...

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic rear lock with wet disc clutch
Steering	hydrostatic power
Hydraulic wet disc brakes
ComfortView cab standard with air-conditioning. Optional adaptive hydraulic cab suspension. GreenStar and AutoTrac ready with ISOBUS connector.

Hydraulics
Type	closed center pressure flow compensated (PFC)
Pressure	2900 psi 200.0 bar
Valves	2 to 4
Pump flow	41 gpm 155.2 lpm
SCV flow	26.4 gpm 99.9 lpm

Tractor hitch
Rear Type	3
Control	electro-hydraulic draft sensing
Rear lift (at ends)	21,050 lbs 9548 kg
Rear lift (at 24"/610mm)	12,213 lbs 5539 kg
Drawbar	Category 3 with 3,525 to 6,170 pound load rating

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
	540/540E/1000 (1.375)
	540/1000/1000E (1.375)
	540/1000 (1.75)
	540/540E/1000 (1.75)
	540/1000/1000E (1.75)
Engine RPM	540@1932
	540E@1775
	1000@1932
	1000E@1775

Dimensions & Tires
Wheelbase	110.2 inches 279 cm
Weight	17200 to 18180 pounds
Front tire	420/90R30
Rear tire	480/80R46
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	120
	200 (optional)
Battery volts	12

References
6R Series Tractors published in 2012, by John Deere
Operator's Manual Tractors 6140R, 6150R, 6150RH, 6170R, 6190R and 6120R (OMAL211531) published in 2014

Engine

Engine Detail — 415 ci / 6.8 L Diesel

Manufacturer	John Deere PowerTech PSX
Configuration	turbocharged aftercooled diesel, 6-cylinder 24-valve, liquid-cooled inline
Displacement	415 ci 6.8 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Emissions	Interim Tier 4
Emission control	exhaust gas recirculation (EGR)
Rated Power (gross)	210 hp 156.6 kW
Maximum Power (gross)	231 hp 172.3 kW
Fuel system	high pressure common rail
Air cleaner	dual stage dry
Compression	17:1
Rated RPM	2100
Idle RPM	850-2250
Operating RPM	1300-2100
Firing order	1-5-3-6-2-4
Starter	electric
Starter volts	12
Oil capacity	24.8 qts 23.5 L
Coolant capacity	29.8 qts 28.2 L
Intake valve clearance	0.019 inches 0.483 mm
Exhaust valve clearance	0.021 inches 0.533 mm

Transmission

Transmission options
16-speed partial power shift
20-speed partial power shift
infinitely variable transmission
24-speed eight-speed power shift

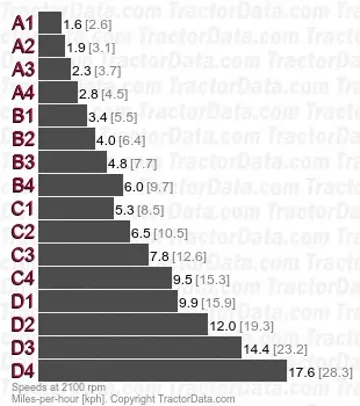

Transmission — PowerQuad Plus

Transmission	PowerQuad Plus
Type	partial power shift
Gears	16 forward and reverse
Oil capacity	94.05 qts 89.0 L
Oil type	hydraulic wet disc
Four power shift gears (1-4) in four synchronized ranges (A-D) with power reverser lever.
With 18.4R46 rear tires.

	hydraulic wet disc

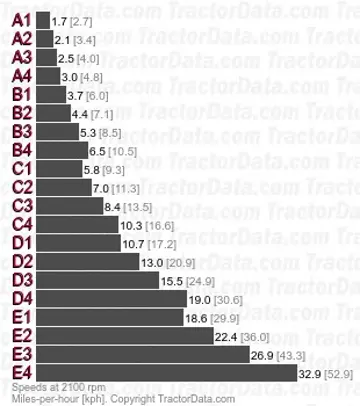

Transmission — AutoQuad Plus Eco

Transmission	AutoQuad Plus Eco
Type	partial power shift
Gears	20 forward and reverse
Clutch	hydraulic wet disc
Oil capacity	94.05 qts 89.0 L
With 18.4R46 rear tires. 40 KPH transmission is electronically limited in E4 and E4 to 40 KPH (26.1 MPH).

Transmission — AutoPowr IVT

Transmission	AutoPowr IVT
Type	infinitely variable transmission
Gears	infinite forward and reverse
Oil capacity	111 qts 105.1 L

Transmission — DirectDrive

Transmission	DirectDrive
Type	eight-speed power shift
Gears	24 forward and reverse

Dimensions

John Deere 6210R Tires
Standard tires (ag)	Front: 420/90R30. Rear: 480/80R46

Dimensions
Wheelbase	110.2 inches 279 cm
Length	198.6 inches 504 cm
Width	100.4 inches 255 cm
Height	124.3 inches 315 cm
Clearance (front axle)	20.15 inches 51 cm
Front axle	Triple-Link Suspension
Rear axle	3.94 by 100.4 inches 100 by 2550 mm
Optional rear axle	3.94 by 110.5 inches 100 by 2806 mm
Optional rear axle	3.94 by 118.5 inches 100 by 3009 mm
Front tread	60 to 88 inches 152 to 223 cm

John Deere 6210R Weight
	17,200 lbs 7801 kg
Operating	18180 lbs (AutoQuad with 480/80R46 duals) 8246 kg
Ballasted	23565 lbs 10689 kg
Max capacity	28660 lbs 13000 kg

Tests

OCED Tractor Test 2035
Diesel AutoQuad 4WD September 7 - 9, 2012 Link: OCED Tractor Test 2035 file
PTO performance
Max power	205.18 hp 153.0 kW
Fuel use	11.4 gal/hour 43.1 l/hour
Power at rated engine speed	179.12 hp 133.6 kW
Fuel use	10.7 gal/hour 40.5 l/hour
Power at rated PTO speed	199.73 hp 148.9 kW
Fuel use	11.5 gal/hour 43.5 l/hour
Drawbar performance
Max power	170.30 hp 127.0 kW
Fuel use	10.7 gal/hour 40.5 l/hour
Max pull	18718 lbs 8490 kg

Attachments

Attachment overview
John Deere H360 loader
John Deere H360 MSL loader
John Deere H380 loader
