John Deere 4560

The John Deere 4560 is a tractor produced by John Deere. It is equipped with a 466 ci 7.6 L engine. The rated power output is 156.83 hp 116.9 kW. Transmission: John Deere Power Shift. Operating weight: 18,603 lbs 8438 kg.

Overview

	1992 - 1994 4060 SeriesRow-Crop tractor
1992 - 1994
4060 Series
Row-Crop tractor

Production
Manufacturer	John Deere
Row-Crop tractor
Built in Waterloo, Iowa, USA
Original price was $75,000 in 1994

John Deere 4560 Engine
John Deere 7.6L 6-cyl diesel
Engine details ...

John Deere 4560 Power
PTO (claimed)	155 hp 115.6 kW
Drawbar (tested)	139.99 hp 104.4 kW
PTO (tested)	162.53 hp 121.2 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	inboard planetary
Power steering
Differential hydraulic wet disc brakes
Sound-Gard cab standard.

Capacity
Fuel	102 gal 386.1 L
Hydraulic system	19.8 gal 74.9 L

Hydraulics
Type	closed center
Capacity	19.8 gal 74.9 L
Pressure	2530 psi 174.4 bar
Rear valves	3 or 4
Pump flow	35.3 gpm (Quad-Range) 133.6 lpm
	32.8 gpm (Power Shift) 124.1 lpm

Tractor hitch
Rear Type	3/3N
Control	electrohydraulic draft sensing
Rear lift	8,283 lbs 3757 kg
	10,041 lbsOptOptional 4554 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000

Dimensions & Tires
2WD Wheelbase	118.5 inches 300 cm
4WD Wheelbase	117.1 inches 297 cm
Weight	18,603 lbs 8438 kg
Front tire	11.00-16
Rear tire	20.8-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	120
Batteries	2
Battery CCA	925
Battery volts	12

References
Fine-Tuned Perfection published in 1992, by John Deere
155- To 200-HP 60 Series Tractors published in 1993, by John Deere
Row-Crop Tractors Product Information Handbook published in 1992, by John Deere

Engine

Engine Detail — 466 ci / 7.6 L Diesel

Manufacturer	John Deere
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled inline valve-in-head
Displacement	466 ci 7.6 L
Bore/Stroke	4.5625x4.75 inches 116 x 121 mm
Air cleaner	dual dry element
Compression	15.5:1
Rated RPM	2200
Firing order	1-5-3-6-2-4
Starter volts	12
Oil capacity	22 qts 20.8 L
Coolant capacity	32 qts 30.3 L

Transmission

Transmission options
16-speed partial power shift
15-speed full power shift

Transmission — John Deere Quad Range

Transmission	John Deere Quad Range
Type	partial power shift
Gears	16 forward and 6 reverse
Clutch	Perma-Clutch hydraulic wet disc
Four gears (1-4) in four ranges (A-D) with high-low power shift.

Transmission — John Deere Power Shift

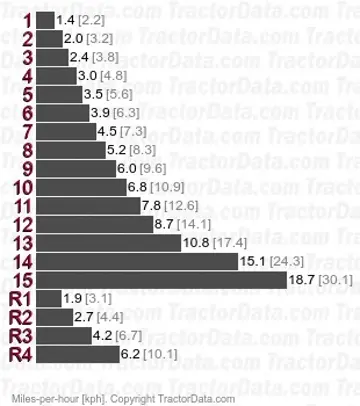

Transmission	John Deere Power Shift
Type	full power shift
Gears	15 forward and 4 reverse

Dimensions

John Deere 4560 Tires
Ag front	11.00-16
Ag rear	20.8-38

Dimensions
2WD Wheelbase	118.5 inches 300 cm
4WD Wheelbase	117.1 inches 297 cm
Width	118.5 inches 300 cm
Height	118.8 inches 301 cm
Shipping weight	18,603 lbs 8438 kg
Front axle	2WD
Front axle	Caster/Action MFWD
Rack-and-pinion rear axle
Rear tread	60 to 134 inches 152 to 340 cm

Tests

Tractor Tests
OECD 1620: diesel Powershift 4WD
OECD 1629: diesel Quad-Range 2WD

OCED Tractor Test 1620
Diesel Powershift 4WD April 1 - May 1, 1989 Link: OCED Tractor Test 1620 file
PTO performance
Max power	162.47 hp 121.2 kW
Fuel use	8.7 gal/hour 32.9 l/hour
Power at rated engine speed	156.89 hp 117.0 kW
Fuel use	8.9 gal/hour 33.7 l/hour
Drawbar performance
Max power	131.40 hp 98.0 kW
Fuel use	8.9 gal/hour 33.7 l/hour
Gear 12 used for power test.
Max pull	20,923 lbs 9490 kg
Gear 3 used for pull test.

OCED Tractor Test 1629
Diesel Quad-Range 2WD September 1 - October 1, 1989 Link: OCED Tractor Test 1629 file
PTO performance
Max power	162.53 hp 121.2 kW
Fuel use	8.9 gal/hour 33.7 l/hour
Power at rated engine speed	156.83 hp 116.9 kW
Fuel use	9.0 gal/hour 34.1 l/hour
Drawbar performance
Max power	139.99 hp 104.4 kW
Fuel use	9.0 gal/hour 34.1 l/hour
Max pull	17,784 lbs 8066 kg
