John Deere 6630

2006 - 2011

Model year 2006-20082009-2011

Manufacturer

John Deere

John Deere 6.8L 6-cyl diesel

Engine (gross)

130 hp 96.9 kW

Engine (net)

126 hp 94.0 kW

Engine (max)

137 hp 102.2 kW

PTO (claimed)

113 hp 84.3 kW

Drive

4x2 2WD

4x4 MFWD 4WD (optional)

Differential lock

rear electro-hydraulic wet disc

Hydraulic wet disc brakes

Two-post foldable Roll-Guard ROPS. Cab with air-conditioning optional.

Fuel

54.7 gal 207.0 L

Optional Fuel

66 gal 249.8 L

Hydraulic system

13.2 gal 50.0 L

Type

constant flow load sensing

Capacity

13.2 gal 50.0 L

Pressure

2,901 psi 200.0 bar

Pump flow

21.4 gpm 81.0 lpm

Rear Type

II

II/IIIN (optional)

Control

load and depth control with electronic lower-link sensing

Rear lift

11,470 lbs 5202 kg

14,880 lbs (optional) 6749 kg

Rear PTO

independent

Clutch

electro-hydraulic wet disc

Rear PTO Type

540/540E/1000

Engine RPM

540@2143

540E@1684

1000@2208

Front PTO Type

1000

Engine RPM

1000@2185

Wheelbase

104.3 inches 264 cm

Weight

11,390 lbs 5166 kg

Front tire

420/70R28

Rear tire

18.4R38

Ground

negative

Charging system

alternator

Charging amps

90

Optional Charging amps

154

Battery volts

12

Manufacturer

John Deere 6068HL280

Configuration

turbocharged diesel, 6-cylinder 12-valve, liquid-cooled

Displacement

413.7 ci 6.8 L

Bore/Stroke

4.19x5.00 inches 106 x 127 mm

Emissions

Tier III

Rated Power (net)

126 hp 94.0 kW

Rated Power (gross)

130 hp 96.9 kW

Maximum Power (net)

132 hp 98.4 kW

Maximum Power (gross)

137 hp 102.2 kW

Fuel system

high-pressure common rail injection

Cooling system

viscous fan

Air cleaner

dry element

Rated RPM

2300

Idle RPM

850-2460

Operating RPM

1600-2300

Torque

389 lb-ft 527.5 Nm

Torque RPM

1600

Firing order

1-5-3-6-2-4

Starter volts

12

Starter power

4 hp 3.0 kW

Oil capacity

20.6 qts 19.5 L

Oil change

500 h

Coolant capacity

29.6 qts 28.0 L

Coolant change

3000 h

Intake valve clearance

0.014 inches 0.356 mm

Exhaust valve clearance

0.018 inches 0.457 mm

12-speed synchronized

16-speed power shuttle

16-speed partial power shift

24-speed partial power shift

Transmission

John Deere SyncroPlus

Type

synchronized

Gears

12 forward and 4 reverse

Clutch

dual 225mm wet disc PermaClutch

Oil capacity

52.8 qts 50.0 L

Three gears (1-3), plus reverse (R) in four ranges (A-D).

Transmission

John Deere PowrReverser

Type

power shuttle

Gears

16 forward and reverse

Clutch

dual 225mm wet disc PermaClutch

Oil capacity

52.8 qts 50.0 L

The PowrReverser transmission adds a left-hand shuttle lever to the SynchroPlus transmission. Reverse gear is replaced with a fourth gear in each range. Reverse speeds slightly higher than the matching forward speed.

Transmission

John Deere PowrQuad

Type

partial power shift

Gears

16 forward and reverse

Clutch

dual 225mm wet disc PermaClutch

Oil capacity

52.8 qts 50.0 L

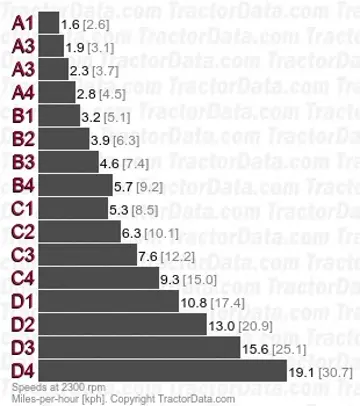

Four gears (1-4) in four ranges (A-D) with left-hand shuttle lever. Power shift between gears. Clutch must be used to shift between ranges. Reverse speeds are slightly higher than forward speeds. Optional creeper provides an additional 12 speeds in ranges A-C, from 0.26 kph to 1.5 kph. PowrQuad Plus provides push-button gear shifting on the range-shift lever.

Transmission

John Deere PowrQuad Plus

Type

partial power shift

Gears

24 forward and reverse

Clutch

dual 225mm wet disc PermaClutch

Oil capacity

52.8 qts 50.0 L

Four gears (1-4) in six ranges (A-F) with left-hand shuttle lever. Power shift between gears. Clutch must be used to shift between ranges. Reverse speeds are slightly higher than forward speeds. Optional creeper provides an additional 12 speeds in ranges A-C, from 0.16 kph to 1.12 kph. PowrQuad Plus provides push-button gear shifting on the range-shift lever.

Standard tires (ag)

Front: 420/70R28. Rear: 18.4R38

Wheelbase

104.3 inches 264 cm

Length

186.1 inches 472 cm

Width

91.2 inches 231 cm

Height

111.5 inches 283 cm

Front tread

58.5 to 80.4 inches 148 to 204 cm (2WD)

Front tread

63.9 to 83.3 inches 162 to 211 cm (4WD)

Rear tread

63.9 to 79.6 inches 162 to 202 cm

Shipping

11,390 lbs 5166 kg

Max capacity

20,940 lbs 9498 kg

Max rear axle

15,210 lbs 6899 kg
