John Deere 6900

The John Deere 6900 is a tractor produced by John Deere. It is equipped with a 414 ci 6.8 L engine. The rated power output is 130 hp 96.9 kW. Transmission: John Deere PowrQuad. Operating weight: 11,885 lbs 5391 kg.

Overview

	1994 - 1997 6000 SeriesRow-Crop tractor
1994 - 1997
6000 Series
Row-Crop tractor

Production
Manufacturer	John Deere
Row-Crop tractor
Built in Mannheim, Baden-Württemberg, Germany

John Deere 6900 Engine
John Deere 6.8L 6-cyl diesel
Fuel tank	66.1 gal 250.2 L
Engine details ...

John Deere 6900 Power
Engine	130 hp 96.9 kW

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic
Power steering
Wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	closed center
Pressure	2900 psi 200.0 bar
Pump flow	15.9 gpm 60.2 lpm
	25.4 gpmOptOptional 96.1 lpm

Tractor hitch
Rear Type	II/IIIN
Rear lift	15082 lbs 6841 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540E/1000
Engine RPM	540E@1754
	1000@2000
Front PTO	independent

Dimensions & Tires
Wheelbase	104.3 inches 264 cm
Weight	11,885 lbs 5391 kg
Front tire	16.9R28
Rear tire	20.8R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	85
	120 OptOptional
Battery volts	12

References
6-Cylindriga Traktorer I 6000-Serien published in 1995, by John Deere
Trattoti 6 Cilindri Serie 6000 published in 1996, by John Deere

Engine

Engine Detail — 414 ci / 6.8 L Diesel

Manufacturer	John Deere 6068
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	414 ci 6.8 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Power	130 hp 96.9 kW
Rated RPM	2100
Torque	444.7 lb-ft 603.0 Nm
Torque RPM	1300
Firing order	1-5-3-6-2-4
Starter	electric
Starter volts	12

Transmission

Transmission options
16-speed partial power shift
20-speed partial power shift

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	partial power shift
Gears	16 forward and reverse
Clutch	wet disc
Four power shift gears in four ranges, with power shuttle.

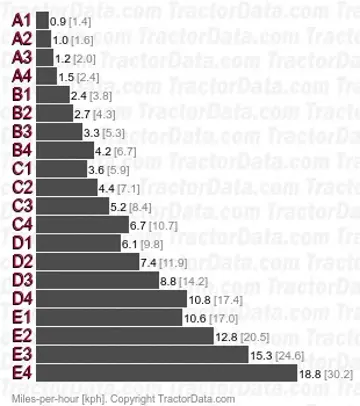

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	partial power shift
Gears	20 forward and reverse
Clutch	wet disc
Four power shift gears (1-4) in five ranges (A-E) with power shuttle. Available in 30 kph and 40 kph versions depending on market.
With 18.4-38 rear tires.

Dimensions

John Deere 6900 Tires
Ag front	16.9R28
Ag rear	20.8R38

Dimensions
Wheelbase	104.3 inches 264 cm
Length	196.5 inches 499 cm
Width	93 inches 236 cm
Height (cab)	113.4 inches 288 cm
Weight	11,885 lbs 5391 kg
