John Deere 7230

The John Deere 7230 is a tractor produced by John Deere. It is equipped with a 414.4 ci 6.8 L engine. The rated power output is 135 hp 100.7 kW. Transmission: John Deere PowrQuad. Operating weight: 9657 to 12755 pounds.

Overview

	2007 - 2011 7030 Small-Frame SeriesRow-Crop tractor
2007 - 2011
7030 Small-Frame Series
Row-Crop tractor

Production
Manufacturer	John Deere
Row-Crop tractor
Built in Mannheim, Baden-Württemberg, Germany
Original price was $69,616 in 2011
The basic 7230 was available with ROPS or a basic cab. Upgraded hydraulics and hitch were optional with ROPS. Upgraded systems with a cab were only available on the 7230 Premium model.

Variants
7230	base tractor
7230 Premium	deluxe tractor

John Deere 7230 Engine
John Deere 6.8L 6-cyl diesel
Engine details ...

John Deere 7230 Power
Engine (gross)	135 hp 100.7 kW
Engine	135 hp 100.7 kW
PTO (claimed)	110 hp 82.0 kW

Mechanical
Two- or four-wheel drive
Power steering
Differential hydraulic wet disc brakes
Two-post Roll-Gard ROPS. Cab optional.

Capacity
Fuel	54.7 gal 207.0 L
	66 galOptOptional 249.8 L
Hydraulic system	13.7 gal 51.9 L
Front axle	8.8 qts 8.3 L
Front hubs	1.6 qts 1.5 L

Hydraulics
Type	constant flow load sensing
	closed-center load sensing (optional ROPS)
Capacity	13.7 gal 51.9 L
Pressure	2900 psi 200.0 bar
Valves	2 to 4
Pump flow	21.1 gpm 79.9 lpm
	29 gpmOptOptional 109.8 lpm

Tractor hitch
Rear Type	II
Control	position control
	electronic lower-link (optional ROPS)
Rear lift (at 24"/610mm)	5,915 lbs 2683 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
	540/540E/1000 OptOptional
Engine RPM	540@2124
	540@2143 (reversible)
	1000@2208

Dimensions & Tires
2WD Wheelbase	106.3 inches 270 cm
4WD Wheelbase	104.3 inches 264 cm
Weight	9657 to 12755 pounds
Front tire	10.00-16
2WD Rear tire	18.4R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	90
Battery volts	12

References
6030 and 7030 Series Tractors published in 2007, by John Deere

Engine

Engine Detail — 414.4 ci / 6.8 L Diesel

Manufacturer	John Deere 6068HL280
Configuration	turbocharged diesel, 6-cylinder 12-valve, liquid-cooled
Displacement	414.4 ci 6.8 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Power	135 hp 100.7 kW
Air cleaner	dual paper elements
Rated RPM	2300
Idle RPM	850-2460
Operating RPM	1500-2300
Torque	389 lb-ft 527.5 Nm
Torque RPM	1500
Firing order	1-5-3-6-2-4
Starter volts	12
Starter power	4 hp 3.0 kW
Oil capacity	20.8 qts 19.7 L
ROPS Coolant capacity	32.8 qts 31.0 L
Cab Coolant capacity	35.6 qts 33.7 L
Intake valve clearance	0.014 inches 0.356 mm
Exhaust valve clearance	0.018 inches 0.457 mm

Engine Detail — 414.4 ci / 6.8 L Diesel

Manufacturer	John Deere 6068HL282
Configuration	turbocharged diesel, 6-cylinder 12-valve, liquid-cooled
Displacement	414.4 ci 6.8 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Rated Power (gross)	135 hp 100.7 kW
Air cleaner	dual paper elements
Rated RPM	2300
Idle RPM	850-2460
Operating RPM	1500-2300
Torque	399 lb-ft 541.0 Nm
Torque RPM	1500
Firing order	1-5-3-6-2-4
Starter volts	12
Starter power	4 hp 3.0 kW
Oil capacity	20.8 qts 19.7 L
Coolant capacity	32.8 qts (ROPS) 31.0 L
	35.6 qts (cab) 33.7 L
Intake valve clearance	0.014 inches 0.356 mm
Exhaust valve clearance	0.018 inches 0.457 mm

Transmission

Transmission options
12-speed full synchro shift
16-speed full synchro shift
16-speed partial power shift
24-speed partial power shift

Transmission — John Deere SyncroPlus

Transmission	John Deere SyncroPlus
Type	full synchro shift
Gears	12 forward and 4 reverse
Oil capacity	54.8 qts 51.9 L
Four ranges, each with four forward gears and reverse operated via a range shift lever and gear shift lever. Cluch must be used to change range or gear. Only avaialable with ROPS.
With 18.4R38 rear tires.

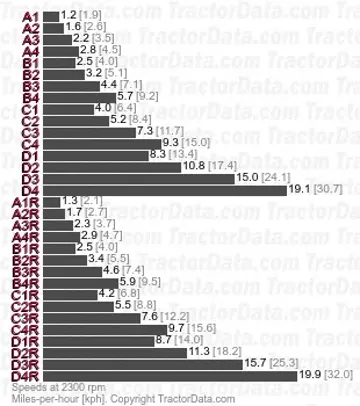

Transmission — John Deere SyncroPlus PowrReverser

Transmission	John Deere SyncroPlus PowrReverser
Type	full synchro shift
Gears	16 forward and reverse
Oil capacity	54.8 qts 51.9 L
Four ranges, each with four gears. Operated via range shift lever and gear shift lever plus reverser lever. Clutch must be used to change range or gear.
With 18.4R38 rear tires.

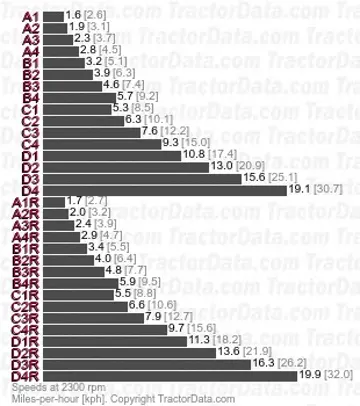

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	partial power shift
Gears	16 forward and reverse
Oil capacity	54.8 qts 51.9 L
Four ranges, each with four gears. Operated via range shift lever and gear shift lever plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change.
With 18.4R38 rear tires.

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	partial power shift
Gears	24 forward and reverse
Oil capacity	54.8 qts 51.9 L
Six ranges, each with four gears. Operated via range shift lever and gear shift lever plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change.
With 18.4R38 rear tires. Reverse speeds are approximately 5% faster than listed forward speeds.

Dimensions

John Deere 7230 Tires
2WD Standard tires (ag)	Front: 10.00-16. Rear: 18.4R38
4WD Standard tires (ag)	Front: 14.9R24. Rear: 18.4R38

Dimensions
2WD Wheelbase	106.3 inches 270 cm
4WD Wheelbase	104.3 inches 264 cm
Length	187.3 inches 475 cm
Width	65.5 inches*Length at the flange axle ends. 166 cm
Height (ROPS)	115.2 inches 292 cm
Height (Folded ROPS)	90.8 inches 230 cm
Height (cab)	114.4 inches 290 cm
2WD Clearance (front axle)	21.6 inches 54 cm
4WD Clearance (front axle)	23 inches 58 cm
Clearance (rear axle)	28.2 inches 71 cm
Clearance (drawbar)	19 inches 48 cm
Flange rear axle	65.5 inch length 1663 mm
Bar rear axle	3.1 by 100.6 inches 78 by 2555 mm
2WD Front tread	59.5 to 85.5 inches 151 to 217 cm
4WD Front tread	59.4 to 88 inches 150 to 223 cm
Rear tread	63.5 to 72.5 inches 161 to 184 cm

John Deere 7230 Weight
2WD Shipping	9657 lbs 4380 kg
4WD Shipping	10252 lbs 4650 kg
4WD Operating	12755 lbs 5785 kg
Ballasted	15075 lbs 6838 kg
Max capacity	20,945 lbs 9500 kg
Max Drawbar	4960 lbs 2249 kg
2WD Max front axle	4520 lbs 2050 kg
4WD Max front axle	9920 lbs 4499 kg
	11025 lbs (2WD with loader) 5000 kg
	14505 lbs (4WD with loader) 6579 kg
Max rear axle	15210 lbs 6899 kg
