John Deere 7510

The John Deere 7510 is a tractor produced by John Deere. It is equipped with a 414 ci 6.8 L engine. The rated power output is 135 hp 100.7 kW. Transmission: John Deere PowrQuad Creeper. Operating weight: 11491 to 13280 pounds.

Overview

	1999 - 2002 7010 SeriesRow-Crop tractor
1999 - 2002
7010 Series
Row-Crop tractor

Production
Manufacturer	John Deere
Row-Crop tractor
Built in Waterloo, Iowa, USA

Variants
7510	row-crop
7510 Hi-Crop	high clearance

John Deere 7510 Engine
John Deere 6.8L 6-cyl diesel
Engine details ...

John Deere 7510 Power
Engine	135 hp 100.7 kW
PTO (claimed)	115 hp 85.8 kW
Drawbar (tested)	101.26 hp 75.5 kW
PTO (tested)	118.81 hp 88.6 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	inboard planetary
Differential lock	electro-hydraulic
Power steering
Hydraulic wet disc brakes
ComfortGard cab standard.

Capacity
Fuel	50 gal 189.2 L
2WD Hydraulic system	15 gal 56.8 L
4WD Hydraulic system	17 gal 64.3 L
	16 gal (2WD creeper) 60.6 L
	18 gal (4WD creeper) 68.1 L

Hydraulics
Type	closed center pressure flow compensated (PFC)
2WD Capacity	15 gal 56.8 L
4WD Capacity	17 gal 64.3 L
	16 gal (2WD creeper) 60.6 L
	18 gal (4WD creeper) 68.1 L
Pressure	2900 psi 200.0 bar
Valves	2 to 4
Pump flow	16 gpm 60.6 lpm
	26 gpmOptOptional 98.4 lpm

Tractor hitch
Rear Type	IIIN/II
2WD Rear lift	7400 lbs 3356 kg
4WD Rear lift	8390 lbs 3805 kg
Front Hitch	IIIN/II OptOptional
Front lift	7700 lbs 3492 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
2WD Wheelbase	112.1 inches 284 cm
4WD Wheelbase	103.3 inches 262 cm
Weight	11491 to 13280 pounds
Front tire	11.00-16
Rear tire	18.4-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	120
Battery CCA	925
Battery volts	12
Battery Group	31

References
7000 TEN Series Tractors and 7405 Advantage Series Tractors Product Information Handbook published in 1999, by John Deere
7000 TEN Series published in 1999, by John Deere

Engine

Engine Detail — 414 ci / 6.8 L Diesel

Manufacturer	John Deere PowerTech 6068
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	414 ci 6.8 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Power	135 hp 100.7 kW
Air cleaner	dual paper elements
Compression	17:1
Rated RPM	2100
Torque	395 lb-ft 535.6 Nm
Firing order	1-5-3-6-2-4
Starter volts	12
Coolant capacity	20 qts 18.9 L
Oil capacity	20 qts 18.9 L

Transmission

Transmission options
12-speed fully synchronized
16-speed partial power shift
20-speed partial power shift
28-speed partial power shift

Transmission — John Deere SyncroPlus

Transmission	John Deere SyncroPlus
Type	fully synchronized
Gears	12 forward and 4 reverse
Clutch	wet disc
2WD Oil capacity	60 qts 56.8 L
4WD Oil capacity	68 qts 64.4 L
Oil type	JD Hy-Gard
Three synchronized speeds (plus reverse) in four synchronized ranges (A-D). Synchronized shuttle shifting.
With 18.4-38 rear tires.

	JD Hy-Gard

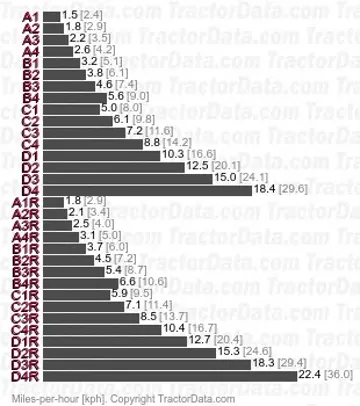

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	partial power shift
Gears	16 forward and reverse
Clutch	wet disc
2WD Oil capacity	60 qts 56.8 L
4WD Oil capacity	68 qts 64.4 L
Oil type	JD Hy-Gard
Four power shift speeds (1-4) in four synchronized ranges (A-D). Right- or left-hand power shuttle.
With 18.4-38 rear tires.

	JD Hy-Gard

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	partial power shift
Gears	20 forward and reverse
Clutch	wet disc
2WD Oil capacity	60 qts 56.8 L
4WD Oil capacity	68 qts 64.4 L
Oil type	JD Hy-Gard
Four power shift speeds (1-4) in four synchronized ranges (A-E). Right- or left-hand power shuttle.

	JD Hy-Gard

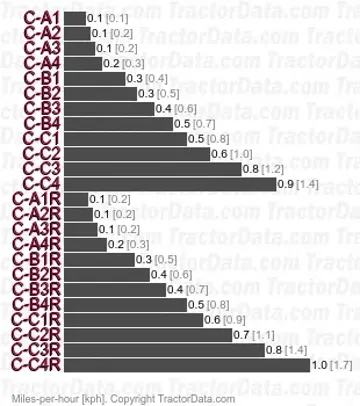

Transmission — John Deere PowrQuad Creeper

Transmission	John Deere PowrQuad Creeper
Type	partial power shift
Gears	28 forward and reverse
2WD Oil capacity	64 qts 60.6 L
4WD Oil capacity	72 qts 68.1 L
Oil type	JD Hy-Gard
Adds creeper range to the PowrQuad for ranges A-C. Also available on the 20-speed PowrQuad giving 32 speeds forward and reverse.
With 18.4-38 rear tires.

	JD Hy-Gard

Dimensions

John Deere 7510 Tires
2WD Ag front	11.00-16
4WD Ag front	13.6R28
Ag rear	18.4-38

Dimensions
2WD Wheelbase	112.1 inches 284 cm
4WD Wheelbase	103.3 inches 262 cm
Length	168 inches 426 cm
Width	96 inches 243 cm
2WD Clearance (front axle)	24.2 inches 61 cm
4WD Clearance (front axle)	21.1 inches 53 cm
Rear axle	3.15 by 96 inches 80 by 2438 mm
Rear axle	3.15 by 110.5 inches 80 by 2806 mm

John Deere 7510 Weight
2WD Shipping	11,491 lbs 5212 kg
4WD Shipping	12,343 lbs 5598 kg
Operating	13,280 lbs (4WD PowrQuad) 6023 kg
Ballasted	15,570 lbs 7062 kg

John Deere 7510 Height
2WD Steering wheel	87.2 inches 221 cm
4WD Steering wheel	86.7 inches 220 cm
2WD Cab	111.6 inches 283 cm
4WD Cab	111.1 inches 282 cm

Tests

OCED Tractor Test 1786
Diesel PowrQuad 4WD October 23 - November 29, 2000 Link: OCED Tractor Test 1786 file
PTO performance
Max power	118.81 hp 88.6 kW
Fuel use	6.6 gal/hour 25.0 l/hour
Power at rated engine speed	115.07 hp 85.8 kW
Fuel use	6.8 gal/hour 25.7 l/hour
Drawbar performance
Max power	101.26 hp 75.5 kW
Fuel use	6.7 gal/hour 25.4 l/hour
Max pull	15,628 lbs 7088 kg
