John Deere 7600

The John Deere 7600 is a tractor produced by John Deere. It is equipped with a 414 ci 6.8 L engine. The rated power output is 130 hp 96.9 kW. Transmission: John Deere PowerShift. Operating weight: 13160 to 14950 pounds.

Overview

	1992 - 1996 7000 SeriesRow-Crop tractor
1992 - 1996
7000 Series
Row-Crop tractor

Production
Manufacturer	John Deere
Row-Crop tractor
Built in Waterloo, Iowa, USA
Original price was $60,500 in 1996

John Deere 7600 Engine
John Deere 6.8L 6-cyl diesel
Engine details ...

John Deere 7600 Power
Engine (net)	130 hp 96.9 kW
PTO (claimed)	112 hp 83.5 kW
Drawbar (tested)	100.57 hp 75.0 kW
PTO (tested)	113.04 hp 84.3 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	inboard planetary
Differential lock	electro-hydraulic rear
Power steering
Differential hydraulic wet disc brakes
ComfortGard cab standard with air-conditioning.

Capacity
Fuel	65 gal 246.0 L
	91 galOptOptional 344.4 L
Hydraulic system	22.5 gal 85.2 L

Hydraulics
Type	closed center pressure and flow compensated
Capacity	22.5 gal 85.2 L
Pressure	2900 psi 200.0 bar
Valves	2 to 3
SCV flow	25.4 gpm 96.1 lpm

Tractor hitch
Rear Type	IIIN/II
Control	position and draft control
Rear lift	7225 lbs 3277 kg
	8925 lbs*Optional with two-wheel drive. 4048 kg
	10050 lbs*Optional with four-wheel drive. 4558 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
2WD Wheelbase	114.4 inches 290 cm
4WD Wheelbase	110.2 inches 279 cm
Weight	13160 to 14950 pounds
Front tire	10.00-16
Rear tire	18.4-38 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	140
Battery volts	12

References
New 110- to 145-HP 7000 Series Tractors published in 1992, by John Deere
New John Deere 7000 Series Tractors published in 1993
Row-Crop Tractors Product Information Handbook published in 1992, by John Deere

Engine

Engine Detail — 414 ci / 6.8 L Diesel

Manufacturer	John Deere
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	414 ci 6.8 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Rated Power (net)	130 hp 96.9 kW
Air cleaner	dual dry element
Compression	17.2:1
Rated RPM	2100
Firing order	1-5-3-6-2-4
Starter volts	12
Coolant capacity	25 qts 23.7 L

Transmission

Transmission options
16-speed partial power shift
19-speed full power shift

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	partial power shift
Gears	16 forward and 12 reverse
Clutch	wet disc
The PowrQuad was the standard transmission on the Deere 7800. It consists of four speeds (1-4) in four ranges (A-D).

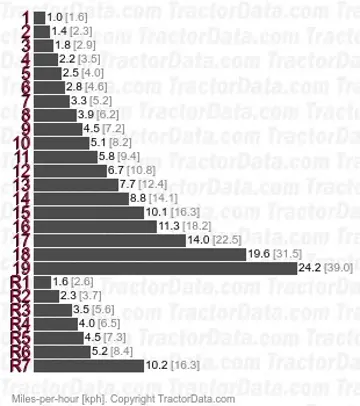

Transmission — John Deere PowerShift

Transmission	John Deere PowerShift
Type	full power shift
Gears	19 forward and 7 reverse
Clutch	wet disc

Dimensions

John Deere 7600 Tires
Standard tires (ag)	Front: 10.00-16. Rear: 18.4-38 (2WD)
	Front: 14.9-28. Rear: 18.4-38 (4WD)

Dimensions
2WD Wheelbase	114.4 inches 290 cm
4WD Wheelbase	110.2 inches 279 cm
Length	187.2 inches 475 cm
Height (cab)	118.4 inches 300 cm
2WD Shipping weight	13160 lbs 5969 kg
4WD Operating weight	14950 lbs 6781 kg
4WD Ground clearance	22.2 inches 56 cm
Rack-and-pinion rear axle	3.62 by 96 inches 91 by 2438 mm
Rack-and-pinion rear axle	3.62 by 110.5 inches 91 by 2806 mm
Rack-and-pinion rear axle	3.62 by 118 inches 91 by 2997 mm
4WD Front tread	60 to 88 inches 152 to 223 cm
Rear tread	60 to 85.7 inches 152 to 217 cm
Rear tread	60 to 100.3 inches 152 to 254 cm
Rear tread	60 to 108.3 inches 152 to 275 cm

Tests

Tractor Tests
OECD 1664: diesel PowrQuad 4WD
OECD 1665: diesel power shift 4WD

OCED Tractor Test 1664
Diesel PowrQuad 4WD April 21 - May 12, 1993 Link: OCED Tractor Test 1664 file
PTO performance
Max power	113.04 hp 84.3 kW
Fuel use	6.4 gal/hour 24.2 l/hour
Power at rated engine speed	110.90 hp 82.7 kW
Fuel use	6.4 gal/hour 24.2 l/hour
Drawbar performance
Max power	100.57 hp 75.0 kW
Fuel use	6.5 gal/hour 24.6 l/hour
Max pull	14,351 lbs 6509 kg

OCED Tractor Test 1665
Diesel power shift 4WD April 28 - June 19, 1993 Link: OCED Tractor Test 1665 file
PTO performance
Power at rated engine speed	111.59 hp 83.2 kW
Fuel use	6.4 gal/hour 24.2 l/hour
Drawbar performance
Max power	93.53 hp 69.7 kW
Fuel use	6.4 gal/hour 24.2 l/hour
Gear 9 used for power test.
Max pull	14,507 lbs 6580 kg
Gear 5 used for pull test.

Attachments

Attachment overview
John Deere 720 loader
John Deere 725 loader
John Deere 740 loader
