John Deere 8650

1982 - 1988

8050 Series

Four-wheel Drive (4WD) tractor

Manufacturer

John Deere

Four-wheel Drive (4WD) tractor

Built in Waterloo, Iowa, USA

Original price was $97,562 in 1983

The 8650 was the middle model of John Deere's 50-series four-wheel drive tractors that were first available in 1982. Efficiency was the advertising focus, noting that these tractors could be used throughout the season, not simply for tillage. The 8650 was able to plant and cultivate 30-inch rows, and perform a variety of field operations with its draft-control hitch and full-power PTO.

John Deere 10.1L 6-cyl diesel

16-speed partial power shift

Engine

290 hp 216.3 kW

PTO (claimed)

235 hp 175.2 kW

Drawbar (tested)

219.93 hp 164.0 kW

PTO (tested)

238.56 hp 177.9 kW

Four-wheel drive

Final drives

inboard planetary

Differential lock

electro-hydraulic front and rear

Articulated power steering

Hydraulic wet disc brakes

Sound-Gard cab with air-conditioning

Fuel

214 gal 810.0 L

Hydraulic system

37.5 gal 141.9 L

Type

closed center constant-pressure

Capacity

37.5 gal 141.9 L

Valves

2 to 4

Pump flow

32 gpm 121.1 lpm

Rear Type

III/IIIN

Control

lower-link draft sensing

Rear lift

9260 lbs 4200 kg

Rear PTO

independent OptOptional

Clutch

hydraulic wet disc

Rear PTO Type

1000 (1.75)

Wheelbase

125 inches 317 cm

Weight

29320 to 30270 pounds

Front tire

18.4-38

Rear tire

18.4-38

Ground

negative

Charging system

alternator

Charging amps

110

Batteries

2

Battery CCA

975

Battery volts

6

Loaders, Spreaders and Blades published in 1984, by John Deere

4-Wheel-Drive Tractors published in 1981, by John Deere

4-Wheel-Drive Tractors published in 1983, by John Deere

4-Wheel-Drive Tractors published in 1986, by John Deere

8450, 8650, 8850 Competition published in 1982, by John Deere

Agricultural Price List published in 1983, by John Deere

Manufacturer

John Deere

Configuration

intercooled turbocharged diesel, 6-cylinder, liquid-cooled

Displacement

619 ci 10.1 L

Bore/Stroke

5.12x5.00 inches 130 x 127 mm

Power

290 hp 216.3 kW

Air cleaner

dual paper elements with aspirator

Compression

15.2:1

Rated RPM

2100

Starter volts

12

Oil capacity

28 qts 26.5 L

Coolant capacity

48 qts 45.4 L

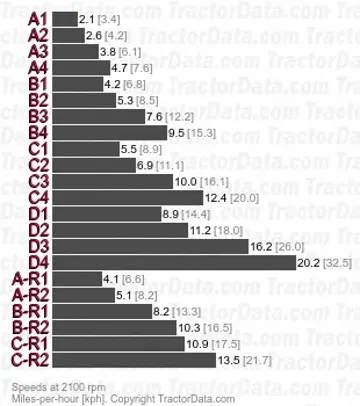

Transmission

Quad-Range

Type

partial power shift

Gears

16 forward and 6 reverse

Clutch

Perma-Clutch hydraulic wet discs

Oil capacity

150 qts 142.0 L

Tractor must be stopped to select one of four ranges. Clutchless power shift between speeds 1-2 and 3-4 in range. A synchronized shift (using clutch) can be made between 2 and 3 in range.

18.4-38 tires

Ag front

18.4-38

Ag rear

18.4-38

Ag front

24.5-32

24.5R32

30.5-32

30.5R32

20.8-34

23.1-34

20.8-38

Ag rear

24.5-32

24.5R32

30.5-32

30.5R32

20.8-34

23.1-34

20.8-38

Wheelbase

125 inches 317 cm

Length

223.5 inches 567 cm

Shipping weight

29320 lbs 13299 kg

Operating weight

30270 lbs 13730 kg

Front axle

Standard axle: 3.938 by 96 inches 100 by 2438 mm

Front axle

Long axle: 3.937 by 118.6 inches 99 by 3012 mm

Standard axle rear axle

3.938 by 96 inches 100 by 2438 mm

Long axle rear axle

3.937 by 118.6 inches 99 by 3012 mm

Front tread

66 to 129 inches 167 to 327 cm

Rear tread

66 to 129 inches 167 to 327 cm

Diesel 16-speed 4WD May 13 - 24, 1982 Link: Nebraska Tractor Test 1435 file

PTO performance

Power at rated engine speed

238.56 hp 177.9 kW

Fuel use

15.4 gal/hour 58.3 l/hour

Drawbar performance

Max power

219.93 hp 164.0 kW

Fuel use

15.4 gal/hour 58.3 l/hour

Max pull

28,257 lbs 12817 kg
