John Deere 9530

The John Deere 9530 is a tractor produced by John Deere. It is equipped with a 826.7 ci 13.5 L engine. The rated power output is 475 hp 354.2 kW. Transmission: John Deere PowerShift. Operating weight: 37747 to 39845 pounds.

Overview

	2007 - 2011 9030 SeriesFour-wheel Drive (4WD) tractor
2007 - 2011
9030 Series
Four-wheel Drive (4WD) tractor

Production
Manufacturer	John Deere
Four-wheel Drive (4WD) tractor
Built in Waterloo, Iowa, USA

Variants
9530	wheeled
9530T	crawler

John Deere 9530 Engine
John Deere 13.5L 6-cyl diesel
Engine details ...

John Deere 9530 Transmission
18-speed full power shift
Transmission details ...

John Deere 9530 Power
Engine	475 hp 354.2 kW
Drawbar (tested)	390.59 hp 291.3 kW
Performance test details ...

Mechanical
Four-wheel drive
Differential lock	hydraulic differential lock standard
Steering	hydrostatic power
Hydraulic wet discs brakes
Trailer brakes	hydraulic optional
CommandView Cab standard with air-conditioning. Optional automatic climate control and leather trim.

Capacity
Fuel	350 gal 1324.8 L
Hydraulic system	27 gal 102.2 L
	28 gal (3-point) 106.0 L
	20 gal (high-flow) 75.7 L
	31 gal (high-flow and 3-point) 117.3 L

Hydraulics
Type	closed-center pressure and flow compensating
Capacity	27 gal 102.2 L
	28 gal (3-point) 106.0 L
	20 gal (high-flow) 75.7 L
	31 gal (high-flow and 3-point) 117.3 L
Pressure	2900 psi 200.0 bar
Valves	4 to 6
SCV flow	30 gpm 113.6 lpm
Total flow	48 gpm 181.7 lpm
	78 gpm (High-Flow) 295.2 lpm

Tractor hitch
Rear Type	4N/3
	4N/4
Rear lift (at 24"/610mm)	15,300 lbs 6940 kg
Drawbar	Catergory 5 standard with secondary chain support.

Dimensions & Tires
Weight	37747 to 39845 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Batteries	2
Battery CCA	950
Battery volts	12

References
New 9030 Series Tractors published in 2007, by John Deere
9230, 9330, 9430, 9530 and 9630 Tractors (OMAR283034) published in 2009
9230, 9330, 9430, 9530 and 9630 Tractors (OMRE325893) published in 2011

Engine

Engine Detail — 826.7 ci / 13.5 L Diesel

Manufacturer	John Deere
Configuration	turbocharged aftercooled diesel, 6-cylinder, liquid-cooled
Displacement	826.7 ci 13.5 L
Bore/Stroke	5.197x6.496 inches 132 x 165 mm
Emissions	Tier III
Power	475 hp 354.2 kW
Air cleaner	aspirator and dual paper elemnts
Compression	16.0:1
Rated RPM	2100
Starter volts	12
Coolant capacity	70 qts 66.2 L
Oil capacity	63.4 qts 60.0 L

John Deere 9530 Engine

Transmission

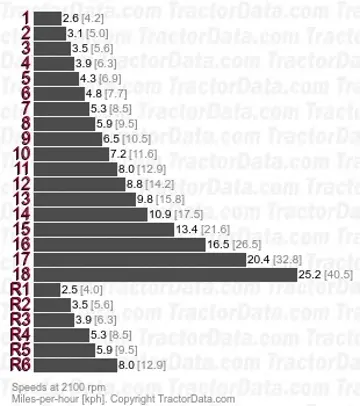

Transmission — John Deere PowerShift

Transmission	John Deere PowerShift
Type	full power shift
Gears	18 forward and 6 reverse
Clutch	electronic wet disc
With Group 48 tires.

Dimensions

John Deere 9530 Tires

Dimensions
Length	270 inches 685 cm
	285 inches (with 3-point) 723 cm
Width	118.6 inches 301 cm
Shipping weight	37747 lbs 17122 kg
Operating weight	39845 lbs*Weight with 480/80R46 triples. 18073 kg
Hinge pin Ground clearance	20.5 inches 52 cm
Clearance (rear axle)	30.8 inches 78 cm
Rear axle	4.724 by 120 inches 119 by 3048 mm

John Deere 9530 Height
Hood	107 inches 271 cm
Cab	142 inches 360 cm
Exhaust	156 inches 396 cm

Tests

OCED Tractor Test 1924
Diesel 18-speed 4WD October 29 - November 13, 2008 Link: OCED Tractor Test 1924 file
Drawbar performance
Max power	390.59 hp 291.3 kW
Fuel use	24.8 gal/hour 93.9 l/hour
Gear 7 used for power test.
Max pull	50,519 lbs 22915 kg
Gear 1 used for pull test.
