CaseIH Steiger 430

The CaseIH Steiger 430 is a tractor produced by Caseih. It is equipped with a 786 ci 12.9 L engine. The listed engine power is Diesel (listed): 430 hp / 320.7 kW. Transmission: 16 forward and 2 reverse. Operating weight: 37900 to 41605 pounds.

Engine Power

Diesel (listed): 430 hp / 320.7 kW

Fuel & Capacities

300 gal 1135.5 L

Transmission

16 forward and 2 reverse

Operating Weight

37900 to 41605 pounds

Overview

	2007 - 2008 Four-wheel Drive (4WD) tractor

Production
Manufacturer	CaseIH
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA

CaseIH Steiger 430 Engine
Iveco 12.9L 6-cyl diesel
Fuel tank	300 gal 1135.5 L
Engine details ...

CaseIH Steiger 430 Transmission
16-speed full power shift
Transmission details ...

CaseIH Steiger 430 Power
Engine	430 hp 320.7 kW
PTO (claimed)	375 hp 279.6 kW
Drawbar (tested)	351.28 hp 261.9 kW
PTO (tested)	438.97 hp 327.3 kW
Performance test details ...

Mechanical
Four-wheel drive
Final drives	inboard planetary
Articulated power steering
Integrated hydraulic wet disc brakes
Cab standard with heat and air-conditioning, optional Luxury cab

Hydraulics
Type	PFC
Pump flow	40 gpm 151.4 lpm
	55 gpm*Optional high capacity pump. 208.2 lpm
	90 gpm*Optional TwinFlow 340.7 lpm

Tractor hitch
Rear Type	IVN
Rear lift (at 24"/610mm)	19620 lbs 8899 kg

Power Take-off (PTO)
Rear PTO	independent OptOptional
Rear PTO Type	1000

Dimensions & Tires
Wheelbase	154 inches 391 cm
Weight	37900 to 41605 pounds
Full dimensions and tires ...

Engine

Engine Detail — 786 ci / 12.9 L Diesel

Manufacturer	Iveco
Configuration	turbocharged diesel, 6-cylinder 24-valve, liquid-cooled
Displacement	786 ci 12.9 L
Bore/Stroke	5.314x5.906 inches 135 x 150 mm
Power	430 hp 320.7 kW
Air cleaner	dual paper elements
Compression	16.5:1
Rated RPM	2000
Starter volts	12

Transmission

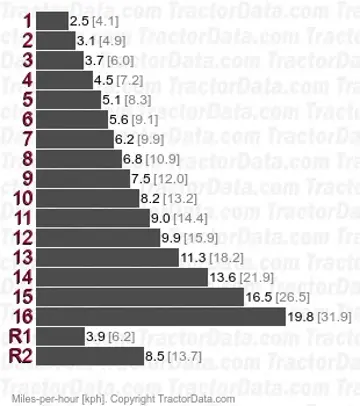

Transmission — 16 forward and 2 reverse full power shift

Type	full power shift
Gears	16 forward and 2 reverse

Dimensions

CaseIH Steiger 430 Tires

Dimensions
Wheelbase	154 inches 391 cm

CaseIH Steiger 430 Weight
Shipping	37900 lbs 17191 kg
Operating	41605 lbs 18872 kg
Max capacity	51600 lbs 23405 kg

Tests

OCED Tractor Test 1909
Diesel 16-speed 4WD September 25 - October 12, 2007 Link: OCED Tractor Test 1909 file
PTO performance
Max power	438.97 hp 327.3 kW
Fuel use	24.5 gal/hour 92.7 l/hour
Power at rated engine speed	384.59 hp 286.8 kW
Fuel use	22.5 gal/hour 85.2 l/hour
Drawbar performance
Max power	351.28 hp 261.9 kW
Fuel use	22.1 gal/hour 83.6 l/hour
Gear 6 used for power test.
Max pull	36669 lbs 16633 kg
Gear 2 used for pull test.

Photos

CaseIH Steiger 430 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Caseih Steiger 430 based on its 430 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁	Commercial / Field Scale	High horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙	Commercial / Field Scale	Broad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih Steiger 430.

Estimated Continuous Field Runtime: 13.4 hrs

Approximately 13.4 hours of continuous field operation at ~75% rated power on a full tank (300 gal / 1135.6 L).

Estimated 75% Load Fuel Burn~22.4 gal/hr (84.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
