John Deere 9530T

The John Deere 9530T is a tractor produced by John Deere. It is equipped with a 823.8 ci 13.5 L engine. The listed engine power is Diesel (listed): 475 hp / 354.2 kW; Diesel (gross): 491 hp / 366.1 kW. Transmission: John Deere PowerShift. Drive type: crawler. Operating weight: 43,815 lbs 19874 kg.

Overview

	2007 - 2011 9030 SeriesAgricultural Crawler tractor 9030 Series Agricultural Crawler tractor

Production
Manufacturer	John Deere
Agricultural Crawler tractor
Built in Waterloo, Iowa, USA

Variants
9530	wheeled
9530T	crawler

John Deere 9530T Engine
John Deere 13.5L 6-cyl diesel
Engine details ...

John Deere 9530T Transmission
18-speed full power shift
Transmission details ...

John Deere 9530T Power
Engine (gross)	491 hp 366.1 kW
Engine	475 hp 354.2 kW
PTO (claimed)	375 hp 279.6 kW
Drawbar (tested)	366.03 hp 272.9 kW
Performance test details ...

Mechanical
Drive	crawler
Steering	electro-hydraulic power
Hydraulic wet disc brakes
Cab standard with air-conditioning.

Capacity
Fuel	330 gal 1249.0 L
Hydraulic system	27 gal 102.2 L

Hydraulics
Type	closed-center pressure flow compensated (PFC)
Capacity	27 gal 102.2 L
Pressure	2900 psi 200.0 bar
Pump flow	48 gpm 181.7 lpm
SCV flow	30 gpm 113.6 lpm

Tractor hitch
Rear Type	4/4N (optional)
Control	position and draft control
Rear lift	15,300 lbs 6940 kg

Dimensions & Tracks
Wheelbase	116 inches 294 cm
Weight	43,815 lbs 19874 kg
Tracks
Full dimensions and tracks ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Batteries	3
Battery CCA	925
Battery volts	12

References
New 9030 Series Tractors published in 2007, by John Deere

Engine

Engine Detail — 823.8 ci / 13.5 L Diesel

Manufacturer	John Deere PowerTech Plus
Configuration	turbocharged aftercooled diesel, 6-cylinder, liquid-cooled inline
Displacement	823.8 ci 13.5 L
Bore/Stroke	5.197x6.496 inches 132 x 165 mm
Power	475 hp 354.2 kW
Rated Power (gross)	491 hp 366.1 kW
Fuel system	electronic injection
Cooling system	variable ratio fan
Air cleaner	dual paper elements
Compression	16:1
Rated RPM	2100
Starter volts	12
Coolant capacity	56 qts 53.0 L
Oil capacity	63.2 qts 59.8 L

John Deere 9530T Engine

Transmission

Transmission — John Deere PowerShift

Transmission	John Deere PowerShift
Type	full power shift

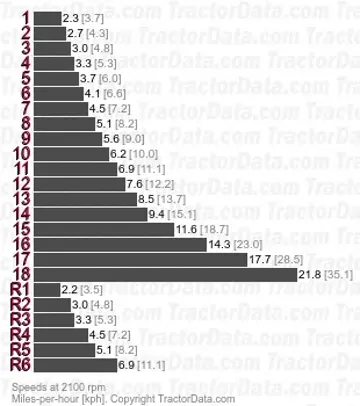

Gears	18 forward and 6 reverse
Clutch	hydraulic wet discs
Oil capacity	240 qts 227.1 L

Dimensions

John Deere 9530T Tracks
Size	30-inch belt
Option	36-inch belt

Dimensions
Wheelbase	116 inches 294 cm
Length	237 inches 601 cm
	269 inches (with hitch) 683 cm
Width	136 inches 345 cm
	142 inches (36-inch tracks) 360 cm
Height (cab)	134 inches 340 cm
Height (exhaust)	155 inches 393 cm
Operating weight	43,815 lbs 19874 kg
Max weight	53,000 lbs 24040 kg
Ground clearance	16 inches 40 cm
Clearance (drawbar)	19 inches 48 cm

Tests

OCED Tractor Test 1925
Diesel 18-speed crawler April 28 - May 7, 2008 Link: OCED Tractor Test 1925 file
Drawbar performance
Max power	366.03 hp 272.9 kW
Fuel use	24.4 gal/hour 92.4 l/hour
Gear 7 used for power test.
Max pull	50,574 lbs 22940 kg
Gear 1 used for pull test.
