John Deere 170
The John Deere 170 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 422 cc 25.8 ci engine. The listed engine power is Gasoline (listed): 14 hp / 10.4 kW. Transmission: Peerless 840A. Operating weight: 570 lbs 258 kg.
Engine Power
Gasoline (listed): 14 hp / 10.4 kW
Fuel & Capacities
2.2 gal
8.3 L
Transmission
Peerless 840A
Operating Weight
570 lbs
258 kg
Overview
 | 1989 - 1990
Late 100 Lawn SeriesLawn tractor
Late 100 Lawn Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | John Deere |
Lawn tractor | |
Built in Horicon, Wisconsin, USA | |
Original price was $2,830 in 1990 | |
Variants | |
|---|---|
170 | gear drive |
175 | hydro drive |
John Deere 170 Engine | |
|---|---|
14HP Kawasaki 422cc 1-cyl gasoline | |
Fuel tank | 2.2 gal
8.3 L |
Engine details ...  | |
John Deere 170 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Integral mechanical transmission disc brakes | |
Open operator station with foam-padded seat. Optional weather enclosure soft cab (TY15382). |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 44.7 inches
113 cm |
Weight | 570 lbs
258 kg |
Front tire | 15x6.00-6 |
Rear tire | 18x8.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 13 |
Battery CCA | 255 |
Battery volts | 12 |
References | |
|---|---|
 | |
John Deere Lawn Tractors 100 Series published in 1989 | |
Operator's Manual 170, 175, 180 and 185 (OMM78999) published in 1988 | |
Lawn & Garden Equipment published in 1990, by John Deere | |
Grounds Care & Recreation Products Sales Manual published in 1989, by John Deere |
Engine
Engine Detail — 422 cc / 25.8 ci Gasoline
Manufacturer | Kawasaki FC420V |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 422 cc
25.8 ci |
Bore/Stroke | 3.50x2.68 inches
89 x 68 mm |
Power | 14 hp
10.4 kW |
Air cleaner | dry with foam pre-cleaner |
Rated RPM | 3350 |
Starter volts | 12 |
Oil capacity | 1.5 qts
1.4 L |

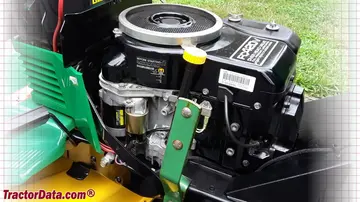

John Deere 170 Engine | |
|---|---|
 | |
Image courtesy of Douglas Wardenski |
Transmission
Transmission — Peerless 840A
Transmission | Peerless 840A |
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
Oil capacity | 1.1 qts
1.0 L |
 | |
Dimensions
John Deere 170 Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 18x8.50-8 |
Dimensions | |
|---|---|
Wheelbase | 44.7 inches
113 cm |
Length | 65 inches
165 cm |
Height (steering wheel) | 39.3 inches
99 cm |
Shipping weight | 570 lbs
258 kg |
Front tread | 28.5 to 28.1 inches
72 to 71 cm |
Rear tread | 26.1 inches
66 cm |
Attachments
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
Snowblower | |
Blade | |
An optional 6.5-bushel rear bagger (BM16790) was available for the John Deere 170. Front wheel weights (35 pounds each) were recommended when the bagger was used on slopes. Dual 40-pound rear weight plates plus rear tire chains were available for use with the snowblower. |
38" Mower deck | |
|---|---|
Type | mid-mount John Deere |
2-blade with manual lift | |
Cutting width | 38 inches
96 cm |
Overall width | 49.7 inches
126 cm |
Cut height | 1 to 4 inch
2 to 10 cm |
Photos

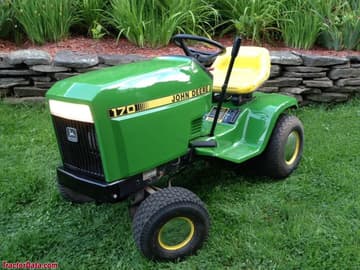

John Deere 170, left side.

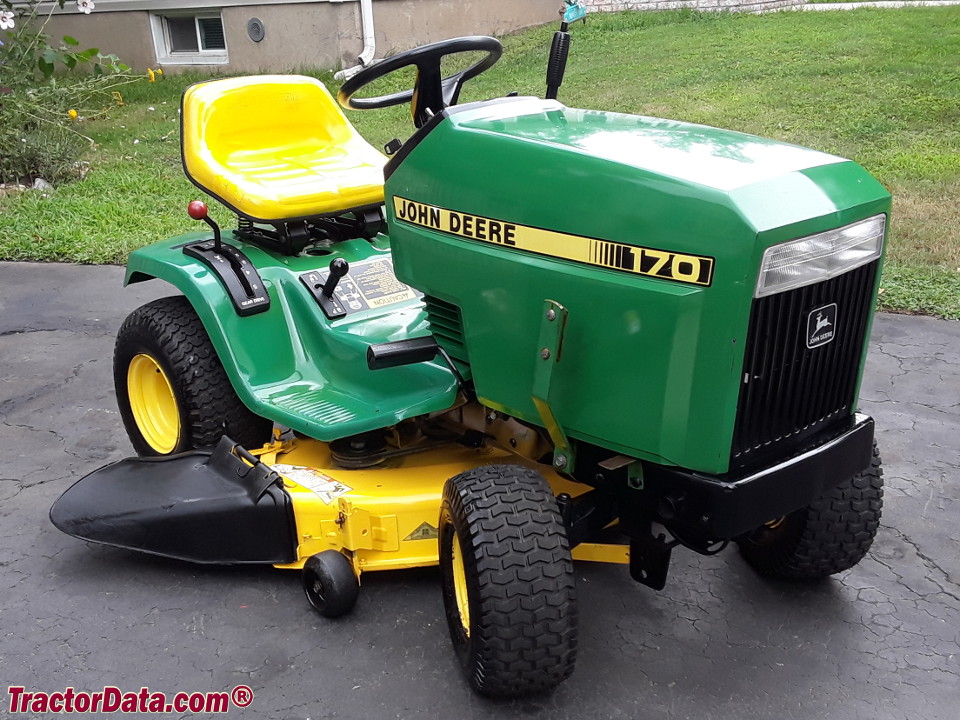

John Deere 170, right side.

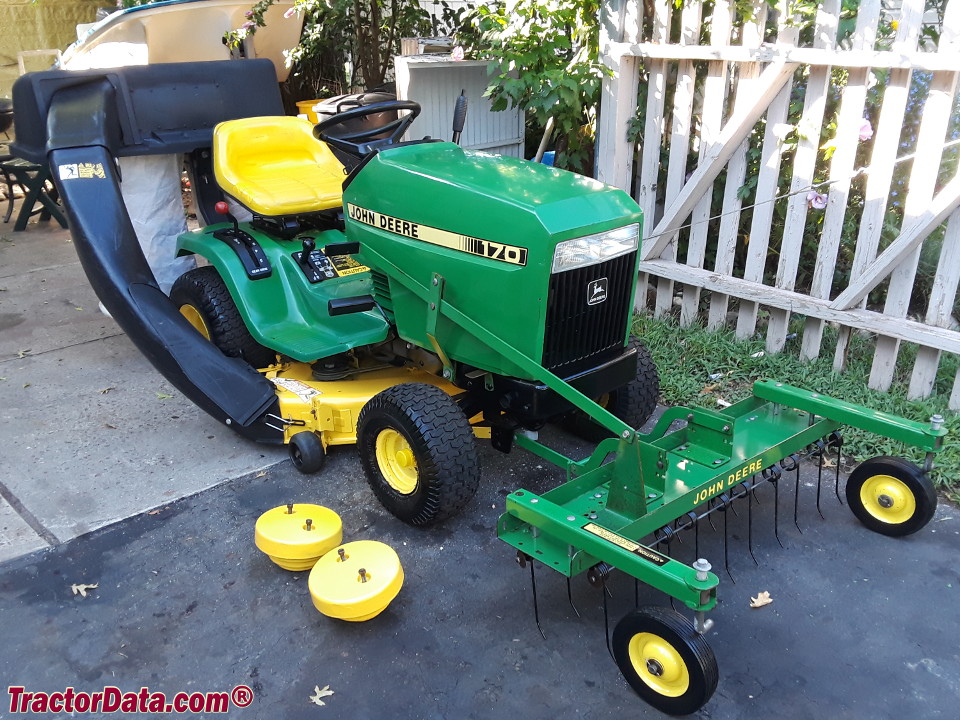

John Deere 170 with bagger, thatcher, and wheel weights.

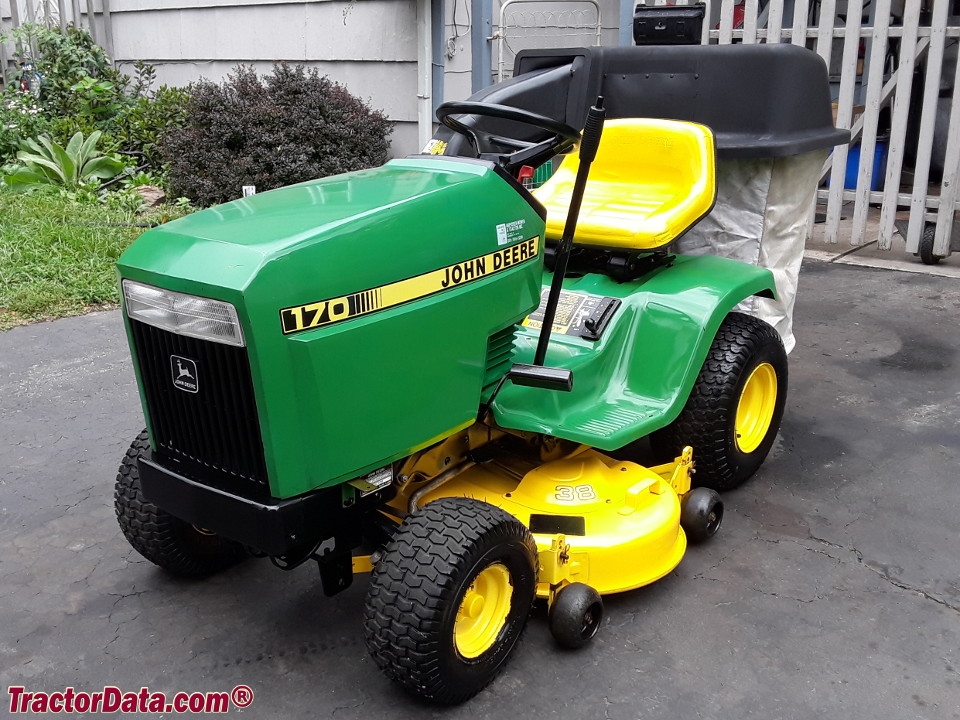

John Deere 170 with mower deck, left side.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere Lawn Tractors John Deere 170.
Estimated Continuous Field Runtime: 3 hrs
Approximately 3 hours of continuous field operation at ~75% rated power on a full tank (2.2 gal / 8.3 L).
Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
John Deere Lawn Tractors John Deere 170 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere Lawn Tractors John Deere 170.
Converted Equivalents:
Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
