John Deere 175
The John Deere 175 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 422 cc 25.8 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: Eaton Model 7. Operating weight: 605 lbs 274 kg.
Engine Power
Gasoline (gross): 14 hp / 10.4 kW
Fuel & Capacities
2.2 gal
8.3 L
Transmission
Eaton Model 7
Operating Weight
605 lbs
274 kg
Overview
 | 1987 - 1990
Late 100 Lawn SeriesLawn tractor
Late 100 Lawn Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | John Deere |
Lawn tractor | |
Built in Horicon, Wisconsin, USA | |
Original price was $3,400 in 1990 | |
Variants | |
|---|---|
170 | gear drive |
175 | hydro drive |
John Deere 175 Engine | |
|---|---|
14HP Kawasaki 422cc 1-cyl gasoline | |
Fuel tank | 2.2 gal
8.3 L |
Engine details ...  | |
John Deere 175 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Integral mechanical transmission disc brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 44.7 inches
113 cm |
Weight | 605 lbs
274 kg |
Front tire | 15x6.00-6 |
Rear tire | 18x8.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 13 |
Battery CCA | 255 |
Battery volts | 12 |
References | |
|---|---|
 | |
John Deere Lawn Tractors 100 Series published in 1989 | |
Operator's Manual 170, 175, 180 and 185 (OMM78999) published in 1988 | |
Lawn Tractors published in 1987, by John Deere | |
Lawn & Garden Equipment published in 1990, by John Deere | |
Grounds Care & Recreation Products Sales Manual published in 1989, by John Deere | |
Technical Manual 130, 160, 165, 175, 180, and 185 Lawn Tractors. (TM1351) published in 1988 |
Engine
Engine Detail — 422 cc / 25.8 ci Gasoline
Manufacturer | Kawasaki FC420V |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 422 cc
25.8 ci |
Bore/Stroke | 3.50x2.68 inches
89 x 68 mm |
Power (gross) | 14 hp
10.4 kW |
Air cleaner | dry with foam pre-cleaner |
Rated RPM | 3350 |
Starter volts | 12 |
Oil capacity | 1.5 qts
1.4 L |

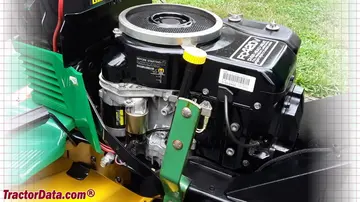

John Deere 175 Engine | |
|---|---|
 | |
Image courtesy of Douglas Wardenski |
Transmission
Transmission — Eaton Model 7
Transmission | Eaton Model 7 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 0.75 qts
0.7 L |
Eaton transmission with Peerless differential through 1987. Sundstrand transmission with Kanzaki differential beginning with the 1988 model year. | |
 | |
Dimensions
John Deere 175 Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 18x8.50-8 |
Dimensions | |
|---|---|
Wheelbase | 44.7 inches
113 cm |
Length | 65 inches
165 cm |
Height (steering wheel) | 39.3 inches
99 cm |
Shipping weight | 605 lbs
274 kg |
Front tread | 28.5 inches
72 cm |
Rear tread | 26.1 inches
66 cm |
Attachments
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
Snowblower | |
Blade | |
The John Deere 175 was available with optional 6.5-bushel rear bagger (BM16790). When the bagger was used on hills, front wheel weights were recommended. Dual 40-pound rear weight plates plus rear tire chains were available for use with the optional 38-inch single-stage snowblower. |
38" Mower deck | |
|---|---|
Type | mid-mount John Deere |
2-blade with manual lift | |
Cutting width | 38 inches
96 cm |
Overall width | 49.7 inches
126 cm |
Cut height | 1 to 4 inch
2 to 10 cm |
Photos

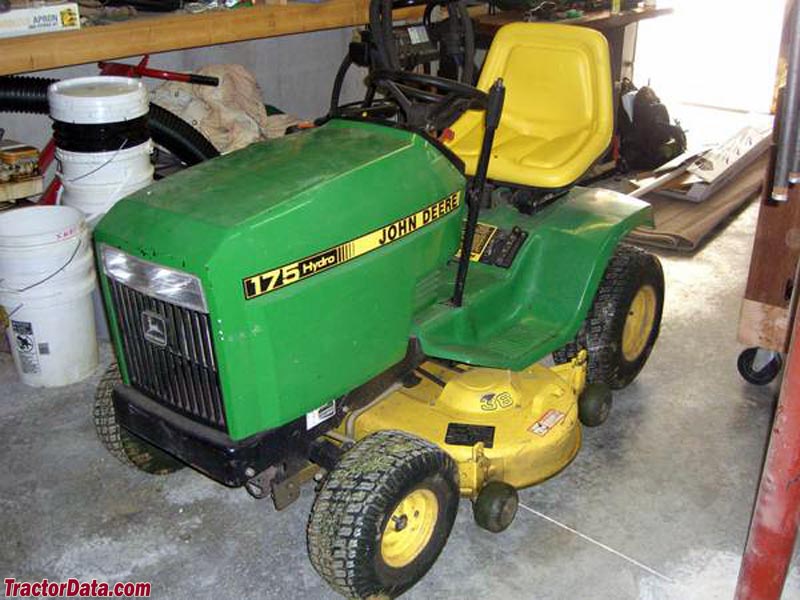

John Deere 175

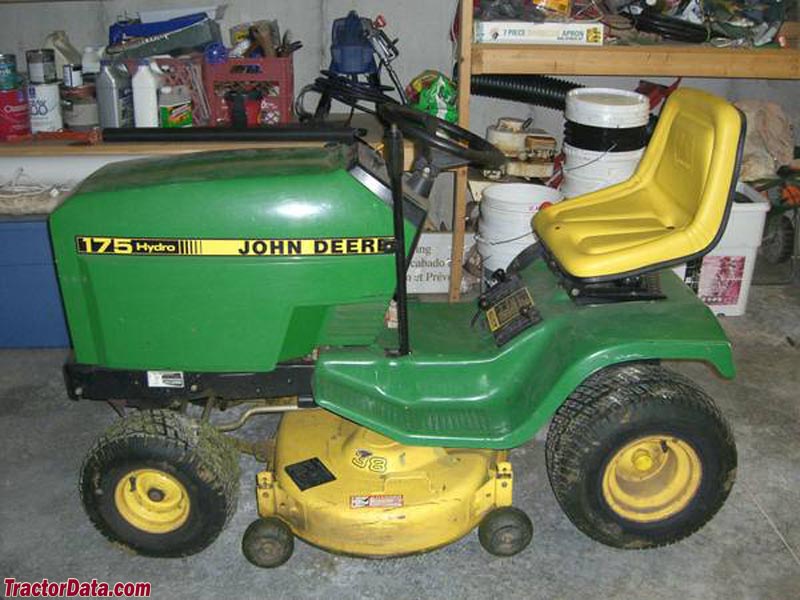

John Deere 175
John Deere 175
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere Lawn Tractors John Deere 175.
Estimated Continuous Field Runtime: 3 hrs
Approximately 3 hours of continuous field operation at ~75% rated power on a full tank (2.2 gal / 8.3 L).
Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
John Deere Lawn Tractors John Deere 175 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere Lawn Tractors John Deere 175.
Converted Equivalents:
Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
