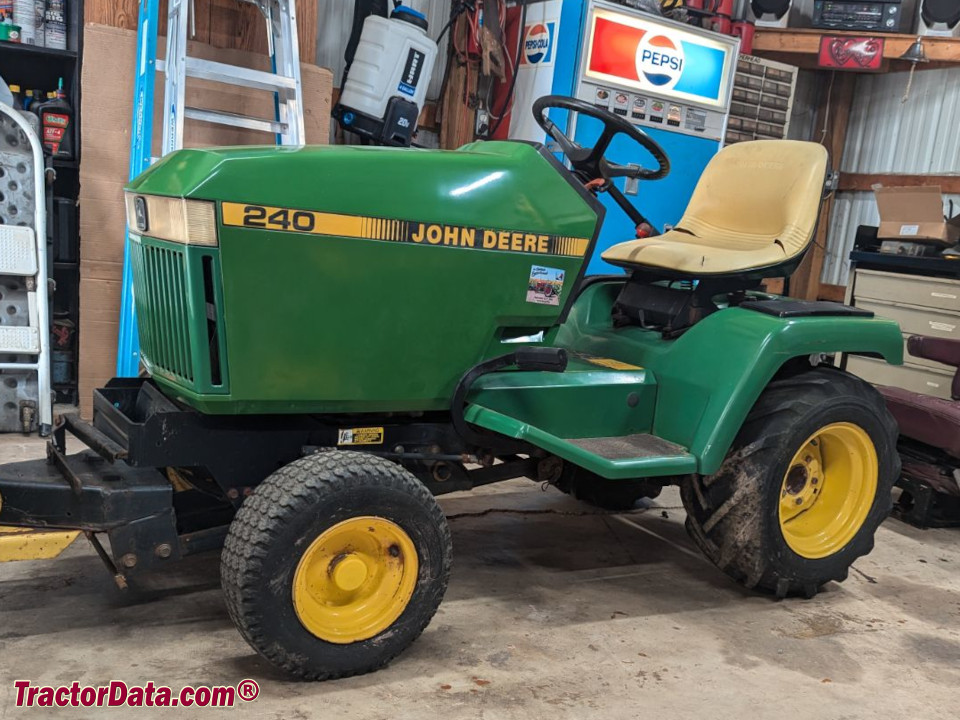

John Deere 240

1988 - 1992

Late 200 Series

Garden tractor

Manufacturer

John Deere

Garden tractor

Built in Horicon, Wisconsin, USA

14HP Kawasaki 422cc 1-cyl gasoline

Fuel tank

3 gal 11.4 L

6-speed gear

Two-wheel drive

Steering

manual enclosed recirculating ball

Brakes

expanding mechanical shoe (early)

wet disc (1992)

Open operator station. Vinyl weather enclosure optional.

Type

sleeve hitch OptOptional

Mid PTO

independent

Clutch

electric

Wheelbase

47.9 inches 121 cm

Weight

590 to 680 pounds

Front tire

16x6.50-8

Rear tire

23x10.50-12

Ground

negative

Charging system

alternator

Charging amps

13

Battery CCA

342

Battery volts

12

Battery Group

U1

200 Series published in 1989, by John Deere

200 Series published in 1990, by John Deere

Riding Mowers Product Information Handbook published in 1991, by John Deere

Lawn & Garden Tractors published in 1988, by John Deere

Lawn & Garden Equipment published in 1990, by John Deere

Grounds Care & Recreation Products Sales Manual published in 1989, by John Deere

New Implements for the 240, 260, 265, and 285 Lawn & Garden Tractors published in 1988, by John Deere

240 & 265 Lawn & Garden Tractors (OMM114669)

Operator's Manual 240, 260, 265, 285 Lawn and Garden Tractors (OMM79648) published in 1989

Operator's Manual 240, 260, 265, 285 Lawn and Garden Tractors (OMM95270) published in 1989

Operator's Manual 240, 260, 265, 285 Lawn and Garden Tractors (OMM96102) published in 1990

Manufacturer

Kawasaki FC420V

Fuel Type

Gasoline

Configuration

1-cylinder, air-cooled vertical-shaft

Displacement

422 cc 25.8 ci

Bore/Stroke

3.5x2.7 inches 89 x 69 mm

Power (gross)

14 hp 10.4 kW

Air cleaner

dry with foam pre-cleaner

Compression

8.4:1

Rated RPM

3350

Starter volts

12

Oil capacity

1.25 qts 1.2 L

Oil change

50 h

Transmission

Tuff Torq E0905

Type

belt-driven gear

Gears

6 forward and 1 reverse

Oil capacity

3.4 qts 3.2 L

Oil type

90W gear lubeJ20B

90W gear lube

J20B

The Deere 240 operated with gear shift and clutch pedal. Clutch must be used to shift between gears. Transmission should be not shifted on the move while under heavy load. For the 1992 model year, serial number 130001, the brake changed to a wet disc internal to the transmission. Those transmissions called for low-viscosity Hy-Gard lubricant instead of gear oil.

J20B

Ag rear

23x10.50-12

Lawn/turf front

16x6.50-8

Lawn/turf rear

23x10.50-12

Wheelbase

47.9 inches 121 cm

Length

71.5 inches 181 cm

Width

41.5 inches 105 cm

Height

43.6 inches 110 cm

Shipping weight

590 lbs 267 kg

680 lbs*Weight with mower deck. 308 kg

38" mid-mount mower deck

46" mid-mount mower deck

48" mid-mount mower deck

Snowblower

Blade

A 30-inch mechanical drive tiller (M03260X/MO3261X) was compatible with the John Deere 240. Front lift kit BM16733 is required for the front blade and snow blower.
