John Deere 245

The John Deere 245 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 422 cc 25.8 ci engine. The rated power output is 14 hp 10.4 kW. Transmission: Sundstrand BDU-21. Operating weight: 610 lbs 276 kg.

Overview

	1993 - 1994 Late 200 SeriesGarden tractor
1993 - 1994
Late 200 Series
Garden tractor

Production
Manufacturer	John Deere
Garden tractor
Built in Horicon, Wisconsin, USA

John Deere 245 Engine
14HP Kawasaki 422cc 1-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

John Deere 245 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Expanding mechanical shoe brakes
Open operator station.

Dimensions & Tires
Wheelbase	47.9 inches 121 cm
Weight	610 lbs 276 kg
Front tire	16x6.5-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	13
Battery volts	12

References
Lawn and Garden Tractors published in 1994, by John Deere

Engine

Engine Detail — 422 cc / 25.8 ci Gasoline

Manufacturer	Kawasaki FC420V
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	422 cc 25.8 ci
Bore/Stroke	3.50x2.68 inches 89 x 68 mm
Power	14 hp 10.4 kW
Air cleaner	dry
Starter volts	12
Oil capacity	1.3 qts 1.2 L

Transmission

Transmission — Sundstrand BDU-21

Transmission	Sundstrand BDU-21
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	2.6 qts 2.5 L

Dimensions

John Deere 245 Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	47.9 inches 121 cm
Length	71.5 inches 181 cm
Width	39 inches 99 cm
Height (steering wheel)	43.6 inches 110 cm
Weight	610 lbs 276 kg

Attachments

Attachment overview
38" mid-mount mower deck
46" mid-mount mower deck
Snowblower
Blade
Front lift kit BM16733 is required for the front blade and snow blower. A 30-inch mechanical drive tiller (MO3261X) was compatible with the John Deere 245.

Photos

John Deere 245, right side.

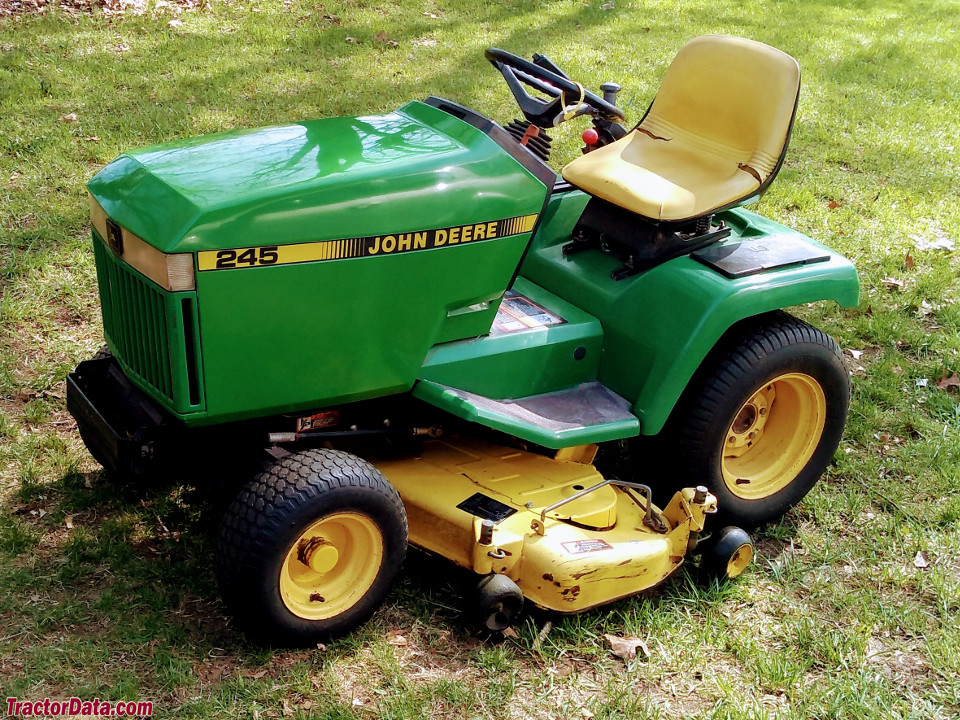

John Deere 245, left side.
