John Deere D110

The John Deere D110 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 499 cc 30.5 ci engine. The rated power output is 19.5 hp 14.5 kW. Transmission: Tuff Torq T40. Operating weight: 450 lbs 204 kg.

Overview

	2011 - 2017 Model year 2011-20122013-2017 D100 SeriesLawn tractor
2011 - 2017
Model year 2011-20122013-2017
D100 Series
Lawn tractor

Production
Manufacturer	John Deere
Lawn tractor
Built in Greeneville, Tennessee, USA
Original price	$1,699 (2011)

John Deere D110 Engine
19.5HP Briggs & Stratton 499cc 1-cyl gasoline
Fuel tank	2.1 gal 7.9 L
	2.4 gal*California model 9.1 L
Engine details ...

John Deere D110 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Mechanical shoe on transaxle brakes
Open operator station. Adjustable 11-inch tall seat with 5.5-inches of travel in ten positions. Fender-mounted cup holder. Optional nylon sunshade canopy or snow enclosure.

Power Take-off (PTO)
Mid PTO	manual independent

Dimensions & Tires
Wheelbase	48.9 inches 124 cm
Weight	450 lbs 204 kg
Front tire	15x6.00-6
Rear tire	20x8.0-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	9
Battery volts	12
Battery Group	U1

References
Operator's Manual D100 Series (OMGX24147) published in 2011
Operator's Manual D100 Series (OMGX24230) published in 2012
Riding Lawn Tractors published in 2016, by John Deere

Engine

Engine Detail — 499 cc / 30.5 ci Gasoline

Manufacturer	Briggs & Stratton 31P677
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	499 cc 30.5 ci
Bore/Stroke	3.57x3.06 inches 91 x 78 mm
Power (gross)	19.5 hp 14.5 kW
Air cleaner	cartridge
Starter	electric
Starter volts	12
Oil capacity	1.5 qts 1.4 L
Sparkplug gap	0.030 inches 0.762 mm
Point gap	0.012 inches 0.305 mm
Intake valve clearance	0.004 inches 0.102 mm
Exhaust valve clearance	0.006 inches 0.152 mm

Transmission

Transmission — Tuff Torq T40

Transmission	Tuff Torq T40
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Automatic transmission with right-side accelerator and decelerator/reverse foot pedals. Left-side brake pedal. Cruise control is standard equipment.

Dimensions

John Deere D110 Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	20x8.0-8

Dimensions
Wheelbase	48.9 inches 124 cm
Length	68.75 inches 174 cm
Width	51.75 inches*Mower 131 cm
Height	42.5 inches 107 cm
Weight	450 lbs 204 kg

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade

42" Mower deck
Type	mid-mount John Deere Edge 42
	2-blade with manual with spring-assist lift
Cutting width	42 inches 106 cm
Overall width	52 inches 132 cm
Cut height	1 to 4 inch 2 to 10 cm
Cut positions	13

Photos

John Deere D110, right side.

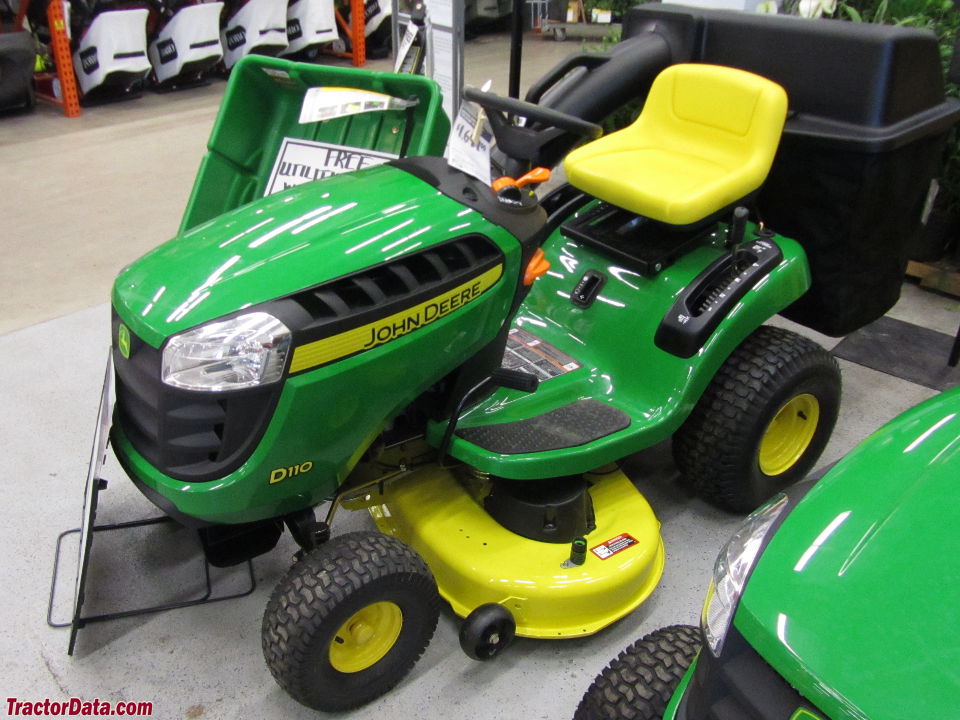

John Deere D110, left side.
