John Deere 116H

The John Deere 116H is a tractor produced by John Deere Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The listed engine power is Gasoline (listed): 16 hp / 11.9 kW. Transmission: infinite forward and reverse. Operating weight: 510 lbs 231 kg.

Engine Power
Gasoline (listed): 16 hp / 11.9 kW
Fuel & Capacities
2.5 gal 9.5 L
Transmission
infinite forward and reverse
Operating Weight
510 lbs 231 kg

Overview

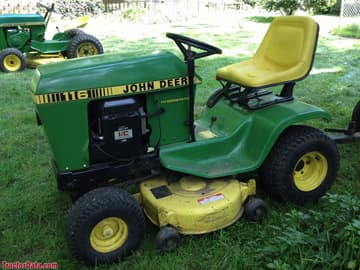

John Deere 116H tractor photo
1983 - 1985 100 Lawn SeriesLawn tractor 100 Lawn Series Lawn tractor
Production
Manufacturer
John Deere
Lawn tractor
Built in Horicon, Wisconsin, USA
Original price was $3,239 in 1983 with 38-inch deck
John Deere 116H Engine
16HP Briggs & Stratton 655cc 2-cyl gasoline
Fuel tank
2.5 gal 9.5 L
Engine details ...
John Deere 116H Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.
Power Take-off (PTO)
Front PTO
independent
Clutch
electric
Dimensions & Tires
Wheelbase
44.7 inches 113 cm
Weight
510 lbs 231 kg
Front tire
15x6.00-6
Rear tire
18x8.50-8
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
5
Battery volts
12
References
116H references literature
Operator's Manual 108, 111,112L ,116, and 116H (OMM88424-J4) published in 1984
Lawn Tractors & Riding Mowers 1983 published by John Deere
Riding Mowers & Lawn Tractors published in 1985, by John Deere
Consumer Products Price List published in 1983, by John Deere
Grounds Care Equipment Purchasing Guide published in 1983, by John Deere

Engine

Engine Detail — 655 cc / 40 ci Gasoline

Manufacturer
Briggs & Stratton 402707
Fuel Type
Gasoline
Configuration
2-cylinder, air-cooled vertical-shaft
Displacement
655 cc 40 ci
Bore/Stroke
3.44x2.16 inches 87 x 55 mm
Power
16 hp 11.9 kW
Starter
electric
Starter volts
12
Sparkplug
AC R046
Champion RJ-12
Autolite 308
Sparkplug gap
0.030 inches 0.762 mm
Oil capacity
1.5 qts 1.4 L

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Manufacturer
Eaton
Type
belt-driven hydrostatic
Gears
infinite forward and reverse
Oil capacity
1 qts*Hydrostatic 0.9 L
1.25 qts*Differential 1.2 L
Oil type
Hy-Gard Low Vis
Single-range hydrostatic transmission operated with right-hand control lever. Eaton hydrostatic with a Peerless differential. The differential uses 75W-90 gear oil and is servicable with drain plugs.
116H  belt-driven hydrostatic speeds
Hy-Gard Low Vis

Dimensions

John Deere 116H Tires
Lawn/turf front
15x6.00-6
Lawn/turf rear
18x8.50-8
20x10.00-8
Dimensions
Wheelbase
44.7 inches 113 cm
Length
63.5 inches 161 cm
Height
40.2 inches 102 cm
Weight
510 lbs 231 kg

Attachments

Attachment overview
38" mid-mount mower deck
46" mid-mount mower deck
Snowblower
Blade

Photos

John Deere 116H

John Deere 116H
