John Deere F510

The John Deere F510 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 422 cc 25.8 ci engine. The rated power output is 14 hp 10.4 kW. Transmission: infinite forward and reverse. Operating weight: 187 lbs 84 kg.

Overview

	1990 - 2000 F500 SeriesFront-mount mower
1990 - 2000
F500 Series
Front-mount mower

1990 - 2000
F500 Series
Front-mount mower

Production
Manufacturer	John Deere
Front-mount mower
Built in Horicon, Wisconsin, USA
Original price was $4,995 in 1995

John Deere F510 Engine
14HP Kawasaki 422cc 1-cyl gasoline
Fuel tank	2.75 gal 10.4 L
Engine details ...

John Deere F510 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Power steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	34.8 inches 88 cm
Weight	505 to 692 pounds
Front tire	18x6.50-8
Rear tire	13x6.50-6
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Battery volts	12

References
Lawn and Garden Product Information Handbook published in 1996, by John Deere
Lawn and Garden Product Information Handbook published in 1997, by John Deere
Lawn and Garden Product Information Handbook published in 1998, by John Deere
Lawn and Garden Product Information Handbook published in 2000, by John Deere
Lawn and Garden Product Information Handbook published in 2001, by John Deere
F500 Series Front Mowers published in 1992, by John Deere
F500 Series Front Mowers published in 1994, by John Deere
Operator's Manual F510 and F525 Front Mowers (OMM96424) published in 1992
Walk-Behind - Riders - Lawn Tractors - Residential Front Mowers published in 1996, by John Deere
Lawn & Garden Equipment published in 1990, by John Deere
Grounds Care & Recreation Products Sales Manual published in 1989, by John Deere
Lawn & Grounds Care Sales Manual published in 1997, by John Deere*
Commercial & Consumer Equipment Sales Manual published in 1999, by John Deere
Grounds Care Equipment Purchasing Guide published in 1999, by John Deere
Grounds Care Equipment Purchasing Guide published in 2000, by John Deere
*Publication contains known errors.

Engine

	1990 - 2000 F500 SeriesFront-mount mower
1990 - 2000
F500 Series
Front-mount mower

1990 - 2000
F500 Series
Front-mount mower

Engine Detail — 422 cc / 25.8 ci Gasoline

Manufacturer	Kawasaki FC420V
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	422 cc 25.8 ci
Bore/Stroke	3.50x2.68 inches 89 x 68 mm
Power	14 hp 10.4 kW
Air cleaner	dry
Idle RPM	1450-3250
Starter	electric
Starter volts	12
Oil capacity	2.5 qts 2.4 L
Sparkplug	NGK BPR5ES
	Champion RN11YC
Sparkplug gap	0.025 inches 0.635 mm

John Deere F510 Engine
Image courtesy of Christopher Smith

Transmission

	1990 - 2000 F500 SeriesFront-mount mower
1990 - 2000
F500 Series
Front-mount mower

1990 - 2000
F500 Series
Front-mount mower

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

	1990 - 2000 F500 SeriesFront-mount mower
1990 - 2000
F500 Series
Front-mount mower

1990 - 2000
F500 Series
Front-mount mower

John Deere F510 Tires
Lawn/turf front	18x6.50-8
Lawn/turf rear	13x6.50-6

Dimensions
Wheelbase	34.8 inches 88 cm
Length	64.9 inches (without deck) 164 cm
	83.9 inches (38-inch deck) 213 cm
Height (steering wheel)	42 inches 106 cm
Height (hood)	22.5 inches 57 cm
Weight	505 lbs ((without deck) 229 kg
	692 lbs (38-inch deck) 313 kg
Ground clearance	3.5 inches 8 cm

Attachments

	1990 - 2000 F500 SeriesFront-mount mower
1990 - 2000
F500 Series
Front-mount mower

1990 - 2000
F500 Series
Front-mount mower

Attachment overview
38" front-mount mower deck
Snowblower

38" Mower deck
Type	front-mount John Deere BM18629
	2-blade
Cutting width	38 inches 96 cm
Weight	187 lbs 84 kg
Overall width	53.1 inches 134 cm
Cut height	1 to 3.5 inch 2 to 8 cm

Photos

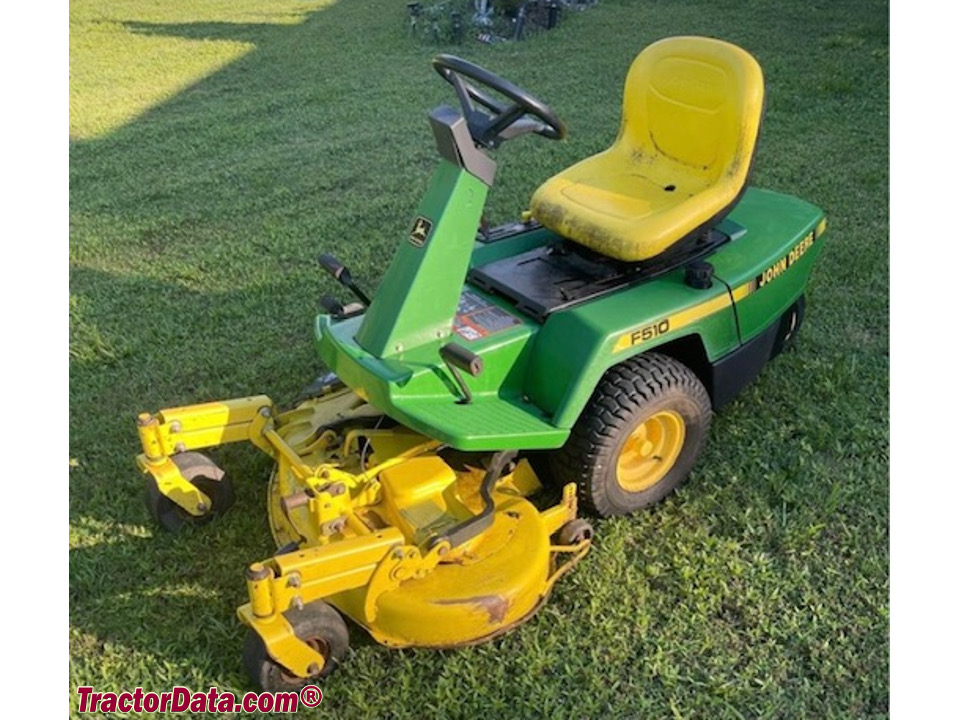

John Deere F510

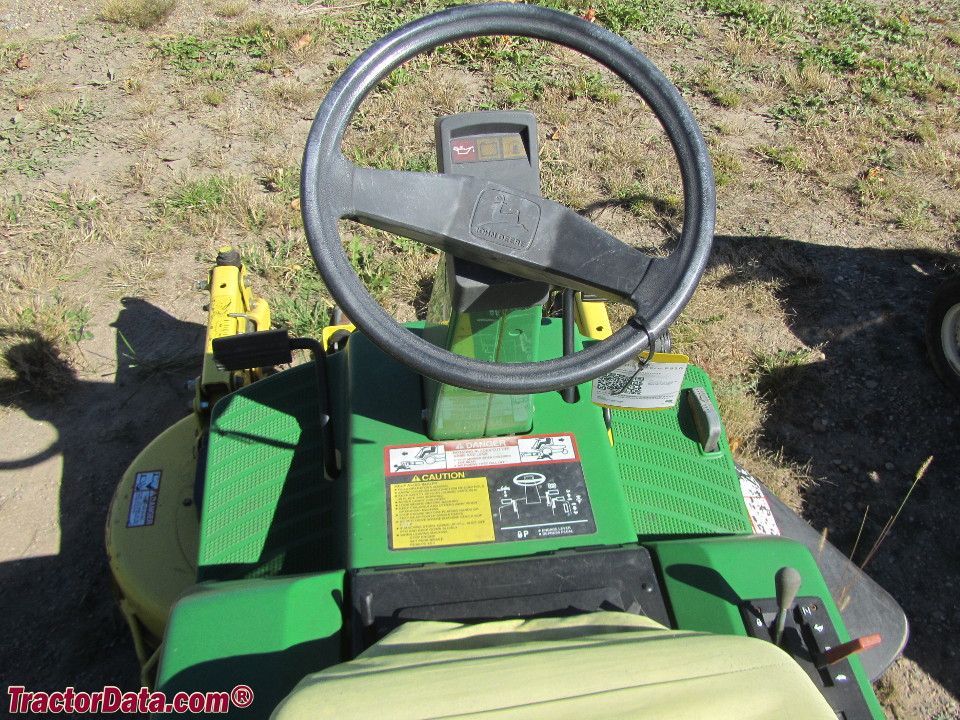

John Deere F510 operator station and controls.

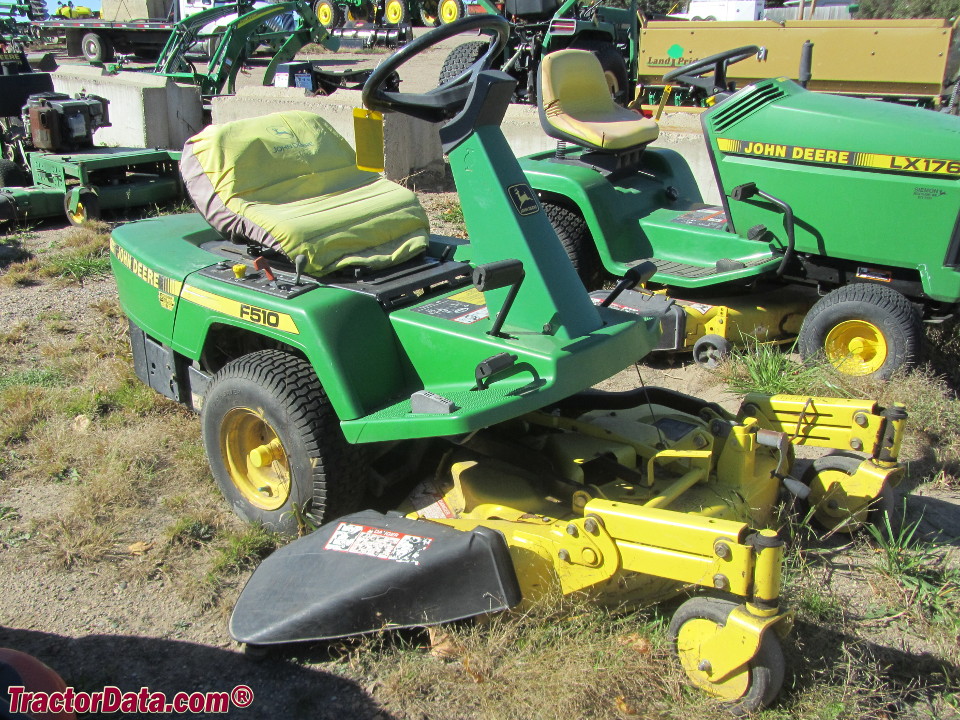

John Deere F510 front-mount mower.

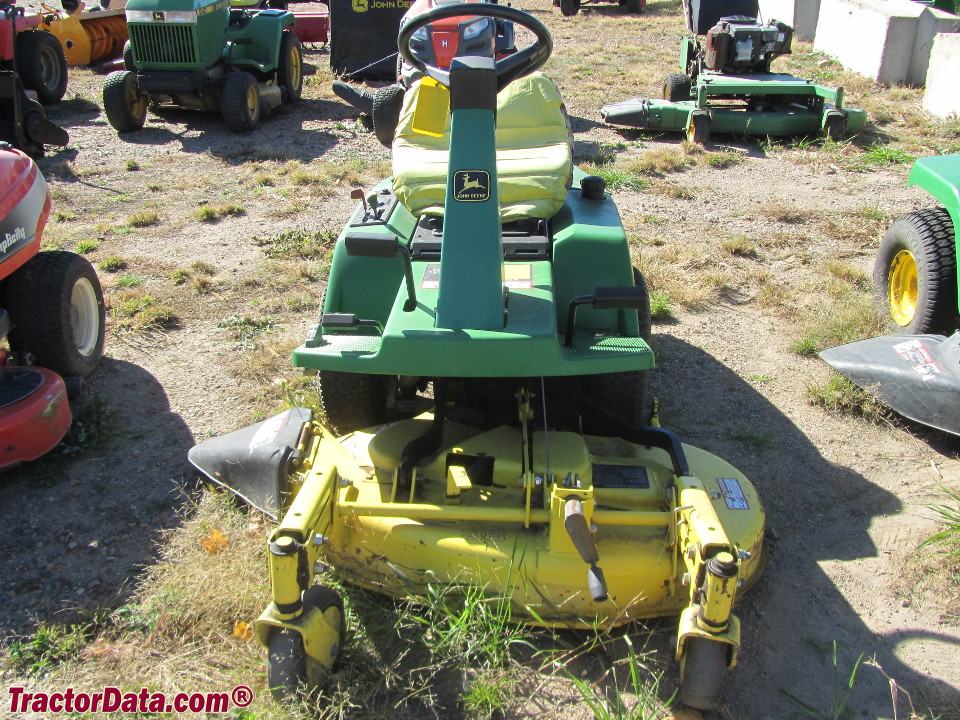

John Deere F510 front-mount mower.

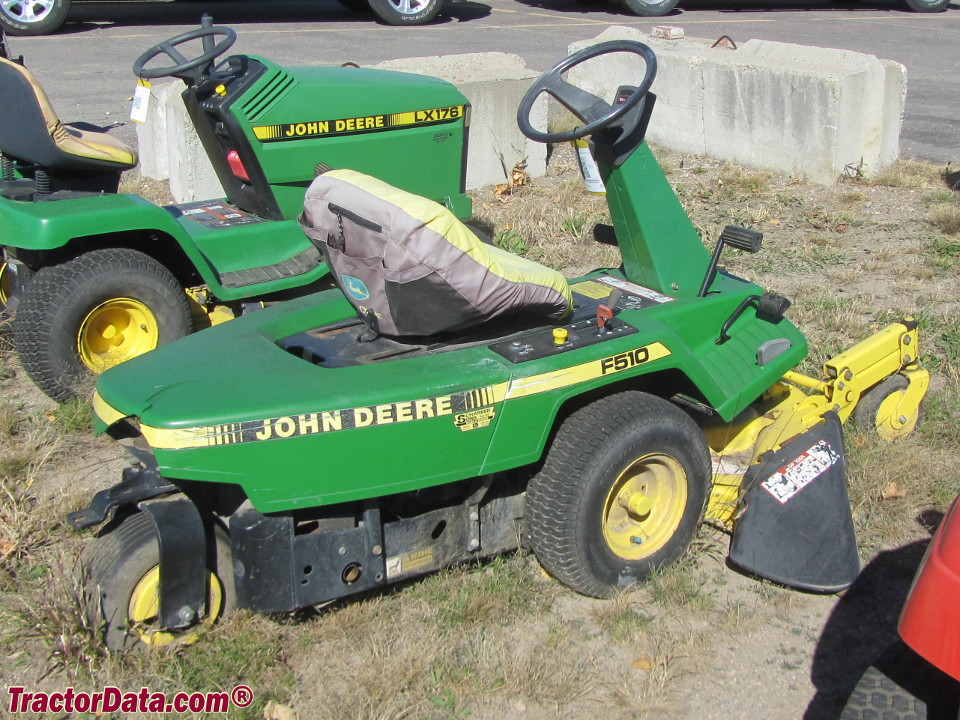

John Deere F510 front-mount mower.
