John Deere F735
The John Deere F735 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 753 cc 46 ci engine. The listed engine power is Diesel (listed): 20.5 hp / 15.3 kW. Transmission: infinite forward and reverse. Operating weight: 1314 lbs 596 kg.
Engine Power
Diesel (listed): 20.5 hp / 15.3 kW
Fuel & Capacities
7 gal
26.5 L
Transmission
infinite forward and reverse
Operating Weight
1314 lbs
596 kg
Overview
 | 1999 - 2004
F700 SeriesFront-mount mower
F700 Series
Front-mount mower |
|---|
Production | |
|---|---|
Manufacturer | John Deere |
Front-mount mower | |
Built in Fuquay-Varina, North Carolina, USA | |
Original price | $111,105 (2003 48 ) |
$11,234 (2003 54 ) | |
$11,957 (2003 60 ) | |
John Deere F735 Engine | |
|---|---|
20.5HP Yanmar 753cc 2-cyl diesel | |
Fuel tank | 7 gal
26.5 L |
Engine details ...  | |
John Deere F735 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Drum brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Dimensions & Tires | |
|---|---|
Wheelbase | 39.4 inches
100 cm |
Weight | 1314 lbs
596 kg |
Front tire | 20x10.00-8 |
Rear tire | 15x6.00-6 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 15 |
Battery volts | 12 |
References | |
|---|---|
 | |
Commercial Mowing Equipment published in 2000, by John Deere | |
Full-Line Commercial Mowing Equipment published in 2000, by John Deere | |
Commercial Mowing and Portable Power Equipment published in 2003, by John Deere | |
Commercial Mowing and Portable Power Equipment published in 2004, by John Deere | |
Operator's Manual F735 Front Mower (OMTCU12447) | |
Commercial & Consumer Equipment Sales Manual published in 1999, by John Deere | |
Grounds Care Equipment Purchasing Guide published in 1999, by John Deere | |
Grounds Care Equipment Purchasing Guide published in 2000, by John Deere | |
Grounds Care Equipment Purchasing Guide published in 2001, by John Deere |
Engine
Engine Detail — 753 cc / 46 ci Diesel
Manufacturer | Yanmar 2V78 |
Fuel Type | Diesel |
Configuration | 2-cylinder, liquid-cooled |
Displacement | 753 cc
46 ci |
Bore/Stroke | 3.07x3.09 inches
78 x 78 mm |
Power | 20.5 hp
15.3 kW |
Air cleaner | dry |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — infinite forward and reverse belt-driven hydrostatic
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 2.5 qts
2.4 L |
 | |
Dimensions
John Deere F735 Tires | |
|---|---|
Lawn/turf front | 20x10.00-8 |
Lawn/turf rear | 15x6.00-6 |
Dimensions | |
|---|---|
Wheelbase | 39.4 inches
100 cm |
Length | 81 inches*Length without mower.
205 cm |
Width | 39.4 inches
100 cm |
Height | 47.6 inches
120 cm |
Weight | 1314 lbs
596 kg |
Ground clearance | 7 inches
17 cm |
Attachments
Attachment overview | |
|---|---|
48" front-mount mower deck | |
54" front-mount mower deck | |
60" front-mount mower deck | |
Snowblower | |
A 9-bushel material collection system was available with a blower powered by a belt off the deck. |
Photos

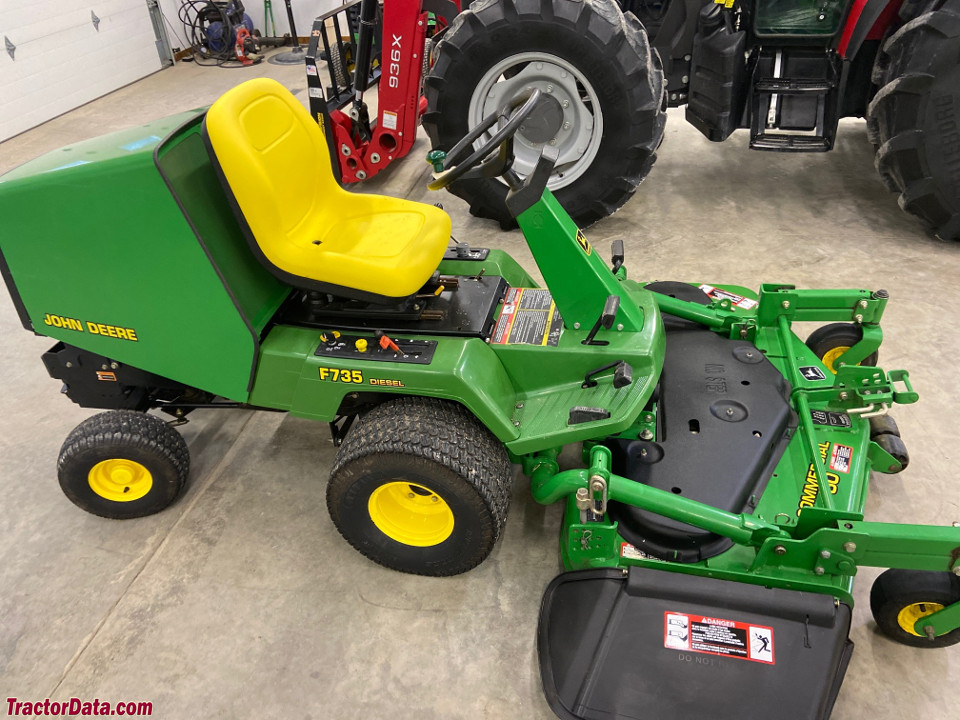

John Deere F735
Recommended Implements & Sizing Guide
Engineering recommendations for John Deere Lawn Tractors John Deere F735 based on its 20.5 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere Lawn Tractors John Deere F735.
Estimated Continuous Field Runtime: 6.6 hrs
Approximately 6.6 hours of continuous field operation at ~75% rated power on a full tank (7 gal / 26.5 L).
Estimated 75% Load Fuel Burn~1.1 gal/hr (4 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
John Deere Lawn Tractors John Deere F735 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere Lawn Tractors John Deere F735.
Converted Equivalents:
Horsepower (HP)20.5 hp
Kilowatts (kW)15.3 kW
Metric Horsepower (PS / CV)20.8 PS
Direct Competitor Comparison
Compare John Deere F735 against same-era industry alternatives in the same horsepower class.
Current Model
John Deere Lawn Tractors
John Deere F735
Engine Power:Diesel (listed): 20.5 hp / 15.3 kW
★ Baseline Reference
