John Deere L105

The John Deere L105 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 499 cc 30.5 ci engine. The listed engine power is Gasoline (listed): 14.5 hp / 10.8 kW. Transmission: Tuff Torq K46.

Engine Power
Gasoline (listed): 14.5 hp / 10.8 kW
Fuel & Capacities
2.1 gal 7.9 L
Transmission
Tuff Torq K46

Overview

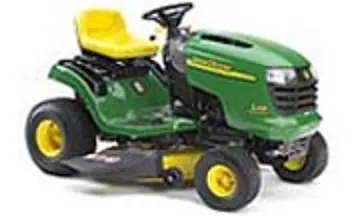

John Deere L105 tractor photo
2003 Lawn tractor
Production
Manufacturer
John Deere
Lawn tractor
John Deere L105 Engine
10.8KW Briggs & Stratton 499cc 1-cyl gasoline
Fuel tank
2.1 gal 7.9 L
Engine details ...
John Deere L105 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Steering
manual
Open operator station.
Power Take-off (PTO)
Front PTO
independent
Clutch
manual
Dimensions & Tires
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12

Engine

Engine Detail — 499 cc / 30.5 ci Gasoline

Manufacturer
Briggs & Stratton 31
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled
Displacement
499 cc 30.5 ci
Bore/Stroke
3.57x3.06 inches 91 x 78 mm
Power
14.5 hp 10.8 kW
Starter
electric
Starter volts
12

Transmission

Transmission — Tuff Torq K46

Transmission
Tuff Torq K46
Type
hydrostatic
Gears
infinite forward and reverse
L105 K46 hydrostatic speeds

Dimensions

John Deere L105 Tires
Dimensions

Attachments

42" Mower deck
Type
mid-mount John Deere
Cutting width
42 inches 106 cm
Cut height
1 to 4 inch 2 to 10 cm

Photos

John Deere L105 tractor photo

John Deere L105 tractor photo

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere Lawn Tractors John Deere L105.

Estimated Continuous Field Runtime: 2.8 hrs

Approximately 2.8 hours of continuous field operation at ~75% rated power on a full tank (2.1 gal / 7.9 L).

Estimated 75% Load Fuel Burn~0.8 gal/hr (2.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

John Deere Lawn Tractors John Deere L105 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere Lawn Tractors John Deere L105.

Converted Equivalents:

Horsepower (HP)14.5 hp
Kilowatts (kW)10.8 kW
Metric Horsepower (PS / CV)14.7 PS
