John Deere X107

The John Deere X107 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 499 cc 30.5 ci engine. The listed engine power is Gasoline (listed): 14.9 hp / 11.1 kW. Transmission: Tuff Torq TL200. Operating weight: 425 lbs 192 kg.

Overview

	2021 - X100 SeriesLawn tractor
2021 -
X100 Series
Lawn tractor

Production
Manufacturer	John Deere
Lawn tractor
Built in Greeneville, Tennessee, USA

John Deere X107 Engine
11.1KW Briggs & Stratton 499cc 1-cyl gasoline
Fuel tank	2.4 gal 9.1 L
Engine details ...

John Deere X107 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual

Dimensions & Tires
Weight	425 lbs 192 kg
Front tire	15x6-6
Rear tire	20x8-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	9
Battery volts	12
Battery Group	U1

References
Lawn Care Solutions published in 2020, by John Deere
Operator's Manual X107, X127 and X167 (OMUC22596) published in 2020

Engine

Engine Detail — 499 cc / 30.5 ci Gasoline

Manufacturer	Briggs & Stratton 31R977
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	499 cc 30.5 ci
Bore/Stroke	3.56x3.06 inches 90 x 78 mm
Power	14.9 hp 11.1 kW
Starter	electric
Starter volts	12
Oil capacity	1.5 qts 1.4 L
Oil change	50 h
Sparkplug gap	0.030 inches 0.762 mm

Transmission

Transmission — Tuff Torq TL200

Transmission	Tuff Torq TL200
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil change	sealed unit, owner service is not recommended

Dimensions

John Deere X107 Tires
Lawn/turf front	15x6-6
Lawn/turf rear	20x8-8

Dimensions
Length	69.7 inches 177 cm
Width	46.5 inches 118 cm
Height	40.2 inches 102 cm
Weight	425 lbs 192 kg

Attachments

Attachment overview
106 cm mid-mount mower deck
Snowblower
Blade

42" Mower deck
Type	mid-mount John Deere
	2-blade with manual lift
Cutting width	42 inches 106 cm
Cut height	1 to 3.9 inch 2 to 9 cm

Photos

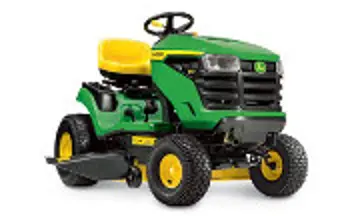

John Deere X107 tractor photo
