Kioti LB1714

The Kioti LB1714 is a tractor produced by Kioti. It is equipped with a 56.6 ci 0.9 L engine. The rated power output is 17 hp 12.7 kW. Transmission: 8 forward and 7 reverse. Operating weight: 1,900 lbs 861 kg.

Overview

	1988 - 1993 Compact Utility tractor
1988 - 1993
Compact Utility tractor

Production
Manufacturer	Kioti (a part of Daedong)
Compact Utility tractor
Built in Daegu, South Korea

Kioti LB1714 Engine
Daedong 0.9L 3-cyl diesel
Engine details ...

Kioti LB1714 Transmission
8-speed partial synchromesh with mechanical shuttle
Transmission details ...

Kioti LB1714 Power
Engine	17 hp 12.7 kW

Mechanical
Four-wheel drive
Steering	manual
Wet disc brakes
Two-post ROPS.

Hydraulics
Total flow	4.5 gpm 17.0 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	1,000 lbs 453 kg

Power Take-off (PTO)
Rear PTO	transmission
Clutch	overrunning
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@2405
	1000@2400
Front PTO	engine
Front PTO Type	2600

Dimensions & Tires
Wheelbase	56 inches 142 cm
Weight	1,900 lbs 861 kg
Front tire	6-12
Rear tire	9.5-20
Full dimensions and tires ...

References
LB1714 Four Wheel Drive Compact Tractor published in 1987, by Kitoi

Engine

Engine Detail — 56.6 ci / 0.9 L Diesel

Manufacturer	Daedong TD 950
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	56.6 ci 0.9 L
Power	17 hp 12.7 kW
Pre-heating	glow plugs
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

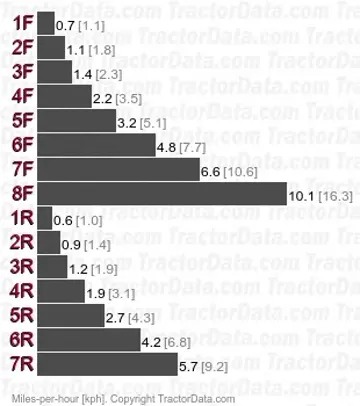

Transmission — 8 forward and 7 reverse partial synchromesh with mechanical shuttle

Type	partial synchromesh with mechanical shuttle
Gears	8 forward and 7 reverse
Clutch	dry

Dimensions

Kioti LB1714 Tires
Ag front	6-12
Ag rear	9.5-20
Ag rear	12.4-16
Lawn/turf front	23x8.50-12
Lawn/turf rear	36x13.50-15

Dimensions
Wheelbase	56 inches 142 cm
Length	98.1 inches 249 cm
Width	44.1 inches 112 cm
Height (exhaust)	75 inches 190 cm
Weight	1,900 lbs 861 kg
Ground clearance	11 inches 27 cm
Front tread	33.9 inches 86 cm
Rear tread	34.6 to 37 inches 87 to 93 cm

Photos

Kioti LB1714
