Kubota A-155
The Kubota A-155 is a tractor produced by Kubota. It is equipped with a 54.8 ci 0.9 L engine. The listed engine power is Diesel (listed): 15.8 hp / 11.8 kW. Transmission: 6 forward and 2 reverse. Operating weight: 1466 lbs 664 kg.
Overview
 | 1992 - 1996
Aste SeriesSub-Compact Utility tractor
Aste Series
Sub-Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Sub-Compact Utility tractor | |
Kubota A-155 Engine | |
|---|---|
Kubota 0.9L 3-cyl diesel | |
Fuel tank | 4.5 gal
17.0 L |
Engine details ...  | |
Kubota A-155 Transmission | |
|---|---|
6-speed | |
Transmission details ...  |
Kubota A-155 Power | |
|---|---|
Engine | 15.8 hp
11.8 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Two-post ROPS. |
Tractor hitch | |
|---|---|
Rear Type | 0 |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 450@2650 |
795@2650 | |
1187@2650 | |
-612@2650 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 53.2 inches
135 cm |
Weight | 1466 lbs
664 kg |
Front tire | 5.00-12 |
Rear tire | 8-16 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 54.8 ci / 0.9 L Diesel
Manufacturer | Kubota D905 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 54.8 ci
0.9 L |
Bore/Stroke | 2.83x2.90 inches
72 x 74 mm |
Power | 15.8 hp
11.8 kW |
Rated RPM | 2650 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 6 forward and 2 reverse
Gears | 6 forward and 2 reverse |
 | |
Dimensions
Kubota A-155 Tires | |
|---|---|
Standard tires (ag) | Front: 5.00-12. Rear: 8-16 |
Dimensions | |
|---|---|
Wheelbase | 53.2 inches
135 cm |
Length | 99.8 inches
253 cm |
Width | 41.3 inches
104 cm |
Height | 70.9 inches
180 cm |
Weight | 1466 lbs
664 kg |
Ground clearance | 11.8 inches
29 cm |
Front tread | 32.3 inches
82 cm |
Rear tread | 31.9/35.4 inches
81/89 cm |
Photos

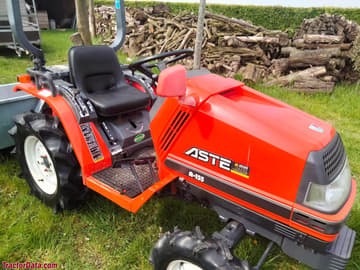

Kubota A-155
Kubota A-155
Kubota A-155 operator station and controls.
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota A-155 based on its 15.8 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota A-155.
Estimated Continuous Field Runtime: 5.5 hrs
Approximately 5.5 hours of continuous field operation at ~75% rated power on a full tank (4.5 gal / 17 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Kubota A-155 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota A-155.
Converted Equivalents:
Direct Competitor Comparison
Compare Kubota A-155 against same-era industry alternatives in the same horsepower class.
Kubota A-155
