Kubota B1200

The Kubota B1200 is a tractor produced by Kubota. It is equipped with a 46.5 ci 0.8 L engine. The rated power output is 16 hp 11.9 kW. Transmission: 6 forward and 2 reverse. Operating weight: 1,060 lbs 480 kg.

Overview

	1979 - 1982 B00 SeriesSub-Compact Utility tractor
1979 - 1982
B00 Series
Sub-Compact Utility tractor

Production
Manufacturer	Kubota
Sub-Compact Utility tractor
Built in Japan

Kubota B1200 Engine
Kubota 0.8L 3-cyl diesel
Engine details ...

Kubota B1200 Transmission
6-speed unsynchronized gear
Transmission details ...

Kubota B1200 Power
Engine	16 hp 11.9 kW
PTO (claimed)	12 hp 8.9 kW

Mechanical
Two- or four-wheel drive
Steering	manual
Open operator station. Two-post ROPS optional.

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO Type	540/860/1000 (1.375)

Dimensions & Tires
Wheelbase	49.2 inches 124 cm
Weight	1,060 lbs 480 kg
Front tire	5.00-12
Rear tire	8-16
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 46.5 ci / 0.8 L Diesel

Manufacturer	Kubota D750L
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	46.5 ci 0.8 L
Bore/Stroke	2.68x2.76 inches 68 x 70 mm
Power	16 hp 11.9 kW
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

Transmission — 6 forward and 2 reverse unsynchronized gear

Type	unsynchronized gear
Gears	6 forward and 2 reverse

Dimensions

Kubota B1200 Tires
Ag front	5.00-12
Ag rear	8-16

Dimensions
Wheelbase	49.2 inches 124 cm
Length	84.3 inches 214 cm
Width	40.6 inches 103 cm
Height (ROPS)	73.6 inches 186 cm
Weight	1,060 lbs 480 kg
Ground clearance	8.6 inches 21 cm
Front tread	30.3 inches 76 cm
Rear tread	30.3 to 34.3 inches 76 to 87 cm

Photos

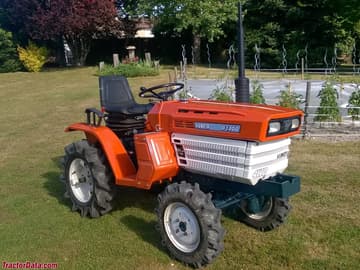

Kubota B1200

Kubota B1200

Kubota B1200 operator station and controls.
