Kubota B1410

The Kubota B1410 is a tractor produced by Kubota. It is equipped with a 40.03 ci 0.7 L engine. The listed engine power is Diesel (net): 12.9 hp / 9.6 kW; Diesel (gross): 13.8 hp / 10.3 kW. Transmission: 6 forward and 2 reverse. Operating weight: 1124 lbs 509 kg.

Engine Power
Diesel (net): 12.9 hp / 9.6 kW; Diesel (gross): 13.8 hp / 10.3 kW
Fuel & Capacities
3.4 gal 12.9 L
Transmission
6 forward and 2 reverse
Operating Weight
1124 lbs 509 kg

Overview

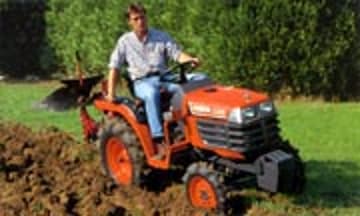

Kubota B1410 tractor photo
Super B SeriesSub-Compact Utility tractor
Super B Series
Sub-Compact Utility tractor
Production
Manufacturer
Kubota
Sub-Compact Utility tractor
Kubota B1410 Engine
Kubota 0.7L 3-cyl diesel
Fuel tank
3.4 gal 12.9 L
Engine details ...
Kubota B1410 Transmission
6-speed
Transmission details ...
Kubota B1410 Power
Engine (gross)
13.8 hp 10.3 kW
Engine (net)
12.9 hp 9.6 kW
PTO (claimed)
10.8 hp 8.1 kW
Mechanical
Four-wheel drive
Differential lock
mechanical
Wet disc brakes
Open operator station.
Tractor hitch
Rear Type
I
Rear lift (at ends)
1190 lbs 539 kg
Power Take-off (PTO)
Rear PTO Type
540/1000 (1.375)
Mid PTO Type
2545
Dimensions & Tires
Wheelbase
50 inches 127 cm
Weight
1124 lbs 509 kg
Front tire
4.5-10
Rear tire
7-16
Full dimensions and tires ...

Engine

Engine Detail — 40.03 ci / 0.7 L Diesel

Manufacturer
Kubota D662
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
40.03 ci 0.7 L
Bore/Stroke
2.52x2.68 inches 64 x 68 mm
Power (net)
12.9 hp 9.6 kW
Power (gross)
13.8 hp 10.3 kW

Transmission

Transmission — 6 forward and 2 reverse

Gears
6 forward and 2 reverse

Dimensions

Kubota B1410 Tires
Ag front
4.5-10
Ag rear
7-16
Lawn/turf front
20x8.00-10
Lawn/turf rear
212/80D-15
Dimensions
Wheelbase
50 inches 127 cm
Length
80.1 inches 203 cm
Width
36.7 inches*Minimum width. 93 cm
Height
48.6 inches 123 cm
Weight
1124 lbs 509 kg
Ground clearance
9.8 inches 24 cm
Front tread
30.6 inches 77 cm
Rear tread
28 to 40.6 inches 71 to 103 cm

Photos

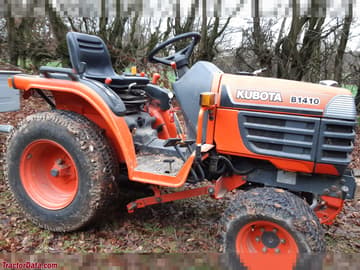

Kubota B1410, right side.

Kubota B1410, right side.

Kubota B1410, front view.

Kubota B1410, front view.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota B1410.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota B1410 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota B1410.

Converted Equivalents:

Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
