Kubota B6000

The Kubota B6000 is a tractor produced by Kubota. It is equipped with a 35 ci 0.6 L engine. The listed engine power is Diesel (net): 10.9 hp / 8.1 kW. Transmission: 6 forward and 2 reverse. Operating weight: 860 to 1050 pounds.

Engine Power
Diesel (net): 10.9 hp / 8.1 kW
Fuel & Capacities
Diesel
Transmission
6 forward and 2 reverse
Operating Weight
860 to 1050 pounds

Overview

Kubota B6000 tractor photo
1973 - 1977 Sub-Compact Utility tractor
Production
Manufacturer
Kubota
Sub-Compact Utility tractor
Built in Japan
Original price was $3,000 in 1977
The Kubota B6000 has a counter-clockwise PTO shaft, which is opposite the common direction.
Variants
B6000D
4WD
B6000E
2WD
Kubota B6000 Engine
Kubota 0.6L 2-cyl diesel
Engine details ...
Kubota B6000 Transmission
6-speed unsynchronized gear
Transmission details ...
Kubota B6000 Power
Engine (net)
10.9 hp 8.1 kW
Mechanical
Two- or four-wheel drive
Manual steering
Open operator station.
Tractor hitch
Rear Type
I
Power Take-off (PTO)
Rear PTO Type
540 *Counter-clockwise rotation
Engine RPM
560@2700
840@2700
1350@2700
Dimensions & Tires
4WD Wheelbase
45.6 inches 115 cm
2WD Wheelbase
47.3 inches 120 cm
Weight
860 to 1050 pounds
Front tire
4.00-9
2WD Rear tire
7-16
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References

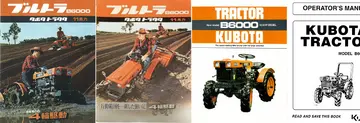

B6000 references literature
B6000 published in 1971, by Kubota
B6000 published in 1975, by Kubota
New Model B6000 published in 1985, by Kubota
B6000 (66601-61214) published in 2002

Engine

Engine Detail — 35 ci / 0.6 L Diesel

Manufacturer
Kubota ZL600
Fuel Type
Diesel
Configuration
2-cylinder, liquid-cooled
Displacement
35 ci 0.6 L
Power (net)
10.9 hp 8.1 kW
Rated RPM
2700
Starter volts
12

Transmission

Transmission — 6 forward and 2 reverse unsynchronized gear

Type
unsynchronized gear
Gears
6 forward and 2 reverse
Three gears, plus reverse, in two ranges.
B6000 unsynchronized gear speeds

Dimensions

Kubota B6000 Tires
2WD Standard tires (ag)
Front: 4.00-9. Rear: 7-16
4WD Standard tires (ag)
Front: 6-12. Rear: 7-16
Dimensions
4WD Wheelbase
45.6 inches 115 cm
2WD Wheelbase
47.3 inches 120 cm
Length
71.6 inches 181 cm
Width
36.25 inches 92 cm
Height
43.7 inches 110 cm
2WD Weight
860 lbs 390 kg
4WD Weight
1050 lbs 476 kg

Photos

Two-wheel drive Kubota B6000.

Two-wheel drive Kubota B6000.

Four-wheel drive Kubota B6000.

Four-wheel drive Kubota B6000.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota B6000.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota B6000 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota B6000.

Converted Equivalents:

Horsepower (HP)10.9 hp
Kilowatts (kW)8.1 kW
Metric Horsepower (PS / CV)11.1 PS
