Kubota B2301
The Kubota B2301 is a tractor produced by Kubota. It is equipped with a 61.1 ci 1.0 L engine. The rated power output is 22 hp 16.4 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 1566 lbs 710 kg.
Engine Power
22 hp
16.4 kW
Fuel & Capacities
6.1 gal
23.1 L
Transmission
infinite forward and reverse (3-range)
Operating Weight
1566 lbs
710 kg
Kubota B2301 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2018 -
B-01 SeriesCompact Utility tractor |
|---|---|
2018 - | |
B-01 Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Original price was $14,690 in 2019 | |
Kubota B2301 Engine | |
|---|---|
Kubota 1.0L 3-cyl diesel | |
Fuel tank | 6.1 gal
23.1 L |
Engine details ...  | |
Kubota B2301 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Kubota B2301 Power | |
|---|---|
Engine (gross) | 22 hp
16.4 kW |
PTO (claimed) | 17.5 hp
13.0 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | spur gear |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. | |
Hydraulics | |
|---|---|
Type | open center |
Total flow | 8.3 gpm
31.4 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Rear lift (at ends) | 1808 lbs
820 kg |
Rear lift (at 24"/610mm) | 1411 lbs
640 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Mid PTO | independent |
Mid PTO Type | 2500 |
Dimensions & Tires | |
|---|---|
Wheelbase | 61.4 inches
155 cm |
Weight | 1566 lbs
710 kg |
Front tire | 6-12 |
Rear tire | 9.5-16 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 61.1 ci / 1.0 L Diesel
Manufacturer | Kubota |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 61.1 ci
1.0 L |
Bore/Stroke | 3.0x2.9 inches
76 x 74 mm |
Power (gross) | 22 hp
16.4 kW |
Air cleaner | dual dry element |
Rated RPM | 2800 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 3.3 qts
3.1 L |
Coolant capacity | 4 qts
3.8 L |
Transmission
Transmission — infinite forward and reverse (3-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (3-range) |
Oil capacity | 12 qts
11.4 L |
 | |
Dimensions
Kubota B2301 Tires | |
|---|---|
Standard tires (ag) | Front: 6-12. Rear: 9.5-16 |
Lawn/turf front | 22x8.50-12 |
23x8.50-12 | |
Lawn/turf rear | 31x15.5-15 |
33x12.5-15 | |
Industrial front | 23x8.50-12 |
Industrial rear | 12-16.5 |
Dimensions | |
|---|---|
Wheelbase | 61.4 inches
155 cm |
Length | 93.7 inches
237 cm |
Width | 45.3 inches*Minimum width.
115 cm |
Height (ROPS) | 83.9 inches
213 cm |
Weight | 1566 lbs
710 kg |
Ground clearance | 12 inches
30 cm |
Attachments
Attachment overview | |
|---|---|
54" mid-mount mower deck | |
60" mid-mount mower deck | |
Kubota LA434 loader | |
Kubota LA435 loader | |
Backhoe |
Kubota BH70 Backhoe | |
|---|---|
Backhoe type | Kubota BH70 Backhoe |
Transport height | 73.1 inches
185 cm |
2-Foot flat digging depth | 85.2 inches
216 cm |
Reach from pivot | 116.8 inches
296 cm |
Loading height | 61.6 inches
156 cm |
Swing Arc | 140° |
Photos

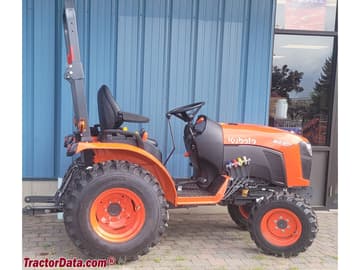

Kubota B2301, right side.
Kubota B2301, front view.
Kubota B2301 with LA435 front-end loader and box blade.
Kubota B2301 with LA435 front-end loader and box blade.
