Kubota L1-18

The Kubota L1-18 is a tractor produced by Kubota. It is equipped with a 79.3 ci 1.3 L engine. The rated power output is 17.8 hp 13.3 kW. Transmission: 16 forward and reverse. Operating weight: 1962 to 2150 pounds.

Overview

	1983 - 1985 L1 SeriesCompact Utility tractor
1983 - 1985
L1 Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Variants
L1-18DT	4WD

Kubota L1-18 Engine
Kubota 1.3L 3-cyl diesel
Fuel tank	7.7 gal 29.1 L
Engine details ...

Kubota L1-18 Transmission
16-speed shuttle
Transmission details ...

Kubota L1-18 Power
Engine	17.8 hp 13.3 kW

Mechanical
Two- or four-wheel drive
Wet disc brakes
Open operator station.

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO Type	540/770/940/1250 (1.375)

Dimensions & Tires
Wheelbase	59.1 inches 150 cm
Weight	1962 to 2150 pounds
Front tire	4.00-12
2WD Rear tire	8.3-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Instruction Manual L1 (31351-1921-6)

Engine

Engine Detail — 79.3 ci / 1.3 L Diesel

Manufacturer	Kubota D1302
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	79.3 ci 1.3 L
Bore/Stroke	3.23x3.23 inches 82 x 82 mm
Power	17.8 hp 13.3 kW
Rated RPM	2500
Starter	electric
Starter volts	12

Transmission

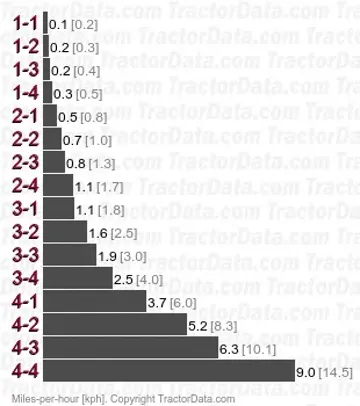

Transmission — 16 forward and reverse shuttle

Type	shuttle
Gears	16 forward and reverse
Clutch	dry disc
Four gears in four ranges with shuttle shift.

Dimensions

Kubota L1-18 Tires
2WD Standard tires (ag)	Front: 4.00-12. Rear: 8.3-24
4WD Standard tires (ag)	Front: 6-14. Rear: 8.3-24

Dimensions
Wheelbase	59.1 inches 150 cm
Length	113.8 inches 289 cm
Width	46.9 inches 119 cm
Height	78 inches 198 cm
2WD Weight	1962 lbs 889 kg
4WD Weight	2150 lbs 975 kg
2WD Ground clearance	12.6 inches 32 cm
4WD Ground clearance	10.8 inches 27 cm
2WD Front tread	34.7 inches 88 cm
4WD Front tread	38.4 inches 97 cm
Rear tread	37.4/42.1 inches 94/106 cm

Photos

Kubota L1-18 compact utility tractor.
