Kubota BX2200
The Kubota BX2200 is a tractor produced by Kubota. It is equipped with a 54.8 ci 0.9 L engine. The listed engine power is Diesel (gross): 22 hp / 16.4 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 1600 lbs 725 kg.
Overview
 | 2001 - 2003
BX SeriesSub-Compact Utility tractor
BX Series
Sub-Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Sub-Compact Utility tractor | |
Variants | |
|---|---|
BX22 | backhoe tractor |
Kubota BX2200 Engine | |
|---|---|
Kubota 0.9L 3-cyl diesel | |
Fuel tank | 5.5 gal
20.8 L |
Engine details ...  | |
Kubota BX2200 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Kubota BX2200 Power | |
|---|---|
Engine (gross) | 22 hp
16.4 kW |
PTO (claimed) | 16.7 hp
12.5 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Two-post ROPS. |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift | 652 lbs
295 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic |
Rear PTO Type | 540 (1.375) |
Mid PTO | independent |
Mid PTO Type | 2500 |
Dimensions & Tires | |
|---|---|
Wheelbase | 55.1 inches
139 cm |
Weight | 1600 lbs
725 kg |
Front tire | 18x8.5 |
Rear tire | 26x12.0 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Diesel Tractor BX1800/BX2200 published in 2000, by Kubota |
Engine
Engine Detail — 54.8 ci / 0.9 L Diesel
Manufacturer | Kubota D905 E-TVCS |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 54.8 ci
0.9 L |
Bore/Stroke | 2.83x2.90 inches
72 x 74 mm |
Power (gross) | 22 hp
16.4 kW |
Fuel system | indirect injection |
Rated RPM | 3600 |
Starter volts | 12 |

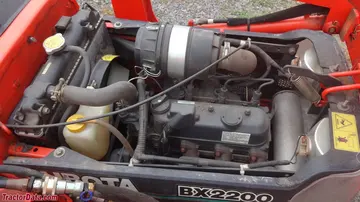

Kubota BX2200 Engine | |
|---|---|
 | |
Image courtesy of White's Farm Supply |
Transmission
Transmission — infinite forward and reverse (2-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (2-range) |
 | |
Dimensions
Kubota BX2200 Tires | |
|---|---|
Ag front | 18x8.5 |
Ag rear | 26x12.0 |
Lawn/turf front | 18x8.5 |
Lawn/turf rear | 26x12.0 |
Dimensions | |
|---|---|
Wheelbase | 55.1 inches
139 cm |
Length | 92.1 inches
233 cm |
Width | 45.1 inches
114 cm |
Weight | 1600 lbs
725 kg |
Ground clearance | 6.7 inches
17 cm |
Attachments
Attachment overview | |
|---|---|
54" mid-mount mower deck | |
60" mid-mount mower deck | |
Snowblower | |
Blade | |
Front-end loader | |
The Kubota BX2200 was advertised as compatible with two mid-mount mowers (54-inch and 60-inch), two front-mount blades, a two-stage snowblower, and front-end loader. Additional attachments include the BX2537 rotary sweeper, B40C (37-inch) rear tiller, 42- and 48-inch box scrapers, 48-inch rear blade, and 60-inch rear-mounted mower. |
Photos
Kubota BX2200 with LA211 front-end loader and mid-mount mower deck.
Kubota BX2200 with LA211 front-end loader and mid-mount mower deck.
Kubota BX2200 with LA211 front-end loader and mid-mount mower deck.
Kubota BX2200 operator station and controls.
Kubota BX2200 tractor.
Kubota BX2200 tractor.
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota BX2200 based on its 22 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota BX2200.
Estimated Continuous Field Runtime: 4.8 hrs
Approximately 4.8 hours of continuous field operation at ~75% rated power on a full tank (5.5 gal / 20.8 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Kubota BX2200 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota BX2200.
Converted Equivalents:
Direct Competitor Comparison
Compare Kubota BX2200 against same-era industry alternatives in the same horsepower class.
